Air Register: Service and Repair

Dashboard Side Vent Removal/Installation

NOTE: Driver's side is shown, and passenger's side is symmetrical.

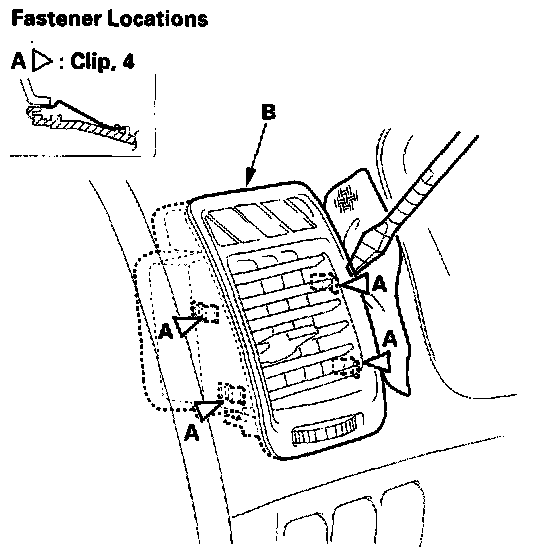

1. Wrap a flat-tip screwdriver with protective tape, and apply protective tape around the related parts to prevent damage. Carefully insert a flat-tip screwdriver next to the clip (A), and detach the clips by prying on the passenger's side vent (B), then remove the vent. Take care not to scratch the dashboard and related parts.
2. Set the vent in the opening, then push the clips securely into place.
