Passenger's Window Switch Test/Replacement
Passenger's Window Switch Test/Replacement 1.
Carefully pry off the
door switch trim.
2.
Disconnect the 6P connector (A) from the
power Window switch (B).
3.

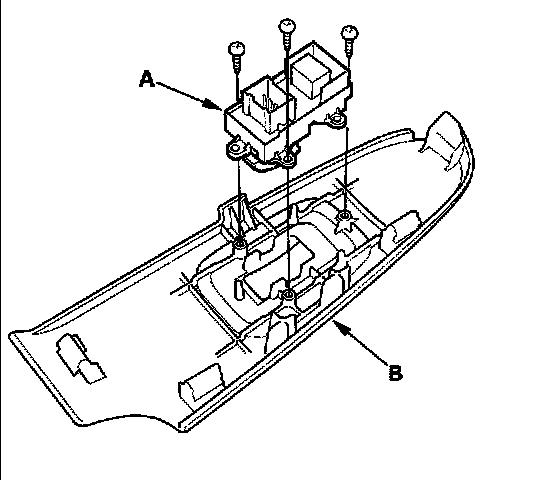

Remove the three mounting screws, then remove the 4
power window switch (A) from the switch trim (B).
4.
Swap the window switch with another known-good switch and test.
If the original window switch is faulty, replace it.
