Crankshaft Position Sensor: Description and Operation
DESCRIPTION AND OPERATION The CKP Sensor determines timing for fuel injection and ignition of each cylinder and also detects engine speed.

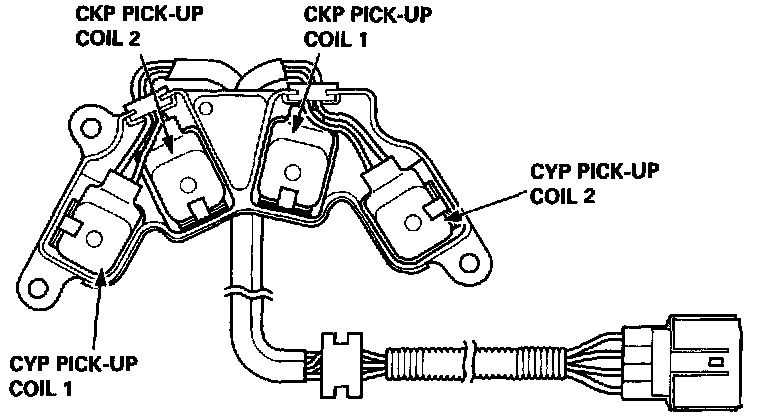

The CYP Sensor detects the position of No. 1 cylinder for sequential fuel injection to each cylinder. The
CKP/CYP Sensor is installed behind the front camshaft pulley.
