Rear Console Removal/Installation

Rear Console Removal/Installation

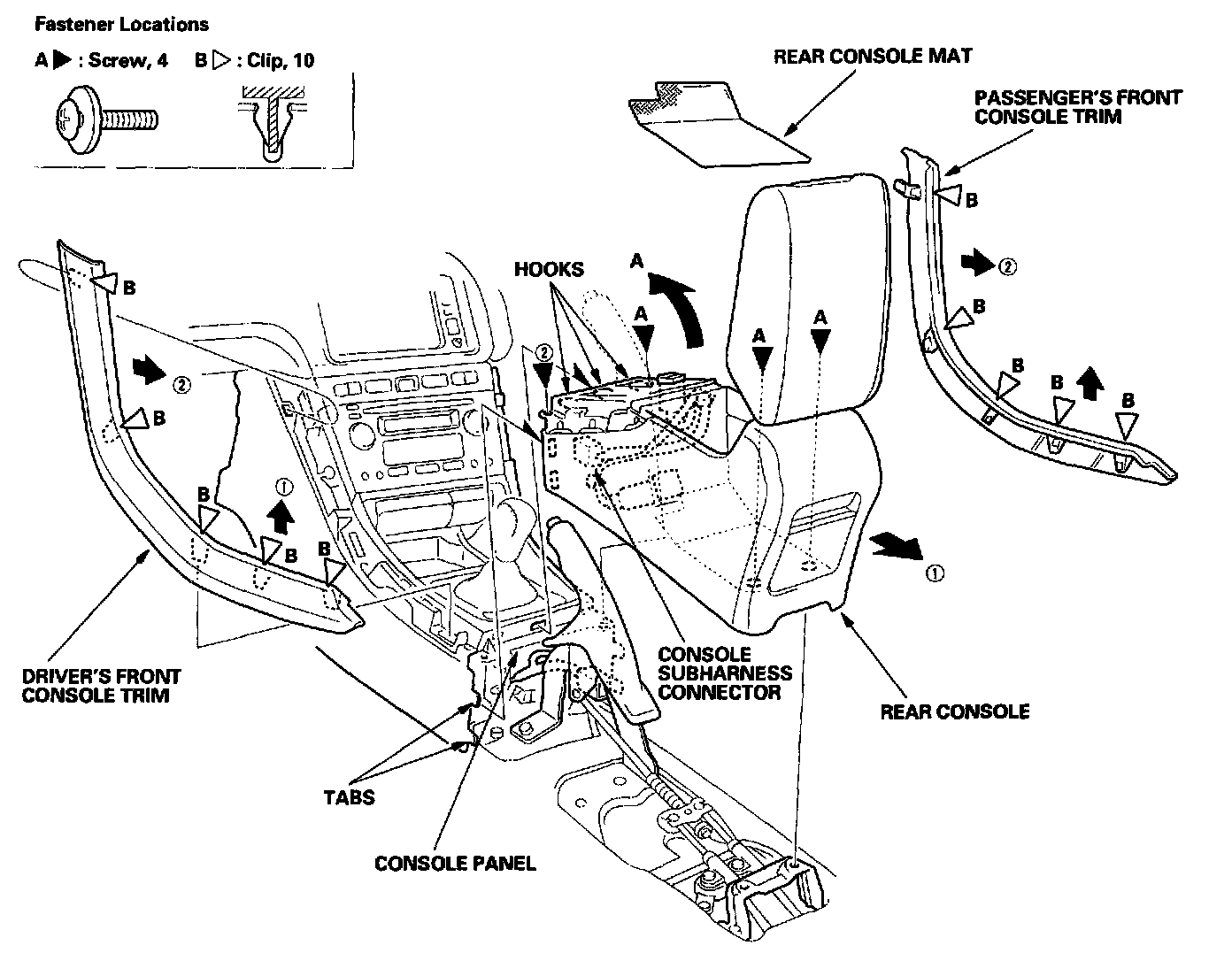

M/T Model

NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to scratch the front seat, dashboard and related parts.

1. Remove the console as shown.




2. Install the console in the reverse order of removal, and note these items:
- Replace any damaged clips.
- Make sure the connector is plugged in properly.

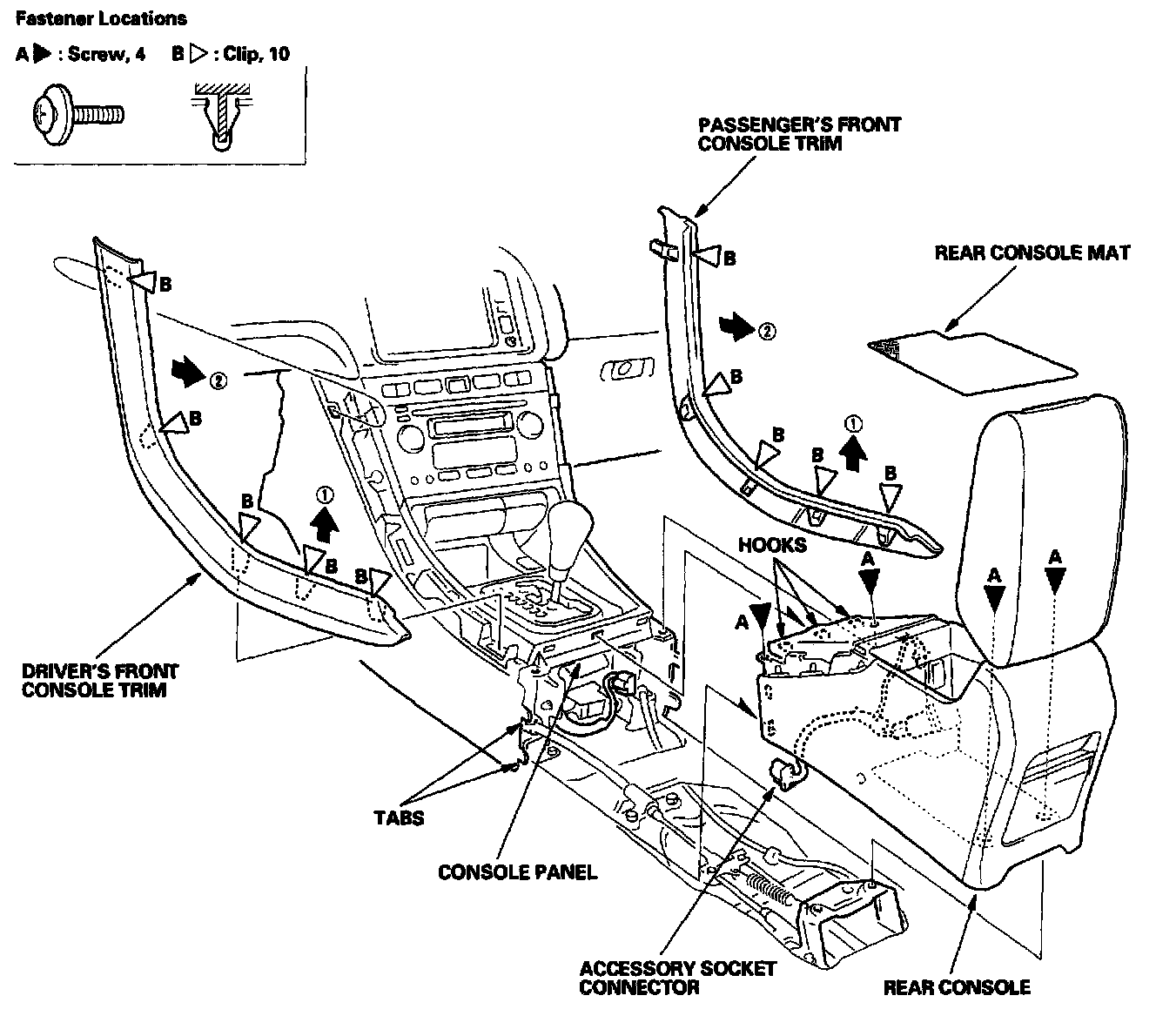

A/T Model

NOTE:
- When prying with a flat-tip screwdriver, wrap it with protective tape to prevent damage.
- Take care not to scratch the front seat, dashboard and related parts.

1. Remove the console as shown.




2. Install the console in the reverse order of removal, and note these items:
- Replace any damaged clips.
- Make sure the connector is plugged in properly.
