Front Seat

Front Seat Removal/Installation

SRS components are located in this area. Review the SRS component locations and precautions and procedures before performing repairs or service.

NOTE:
- Make sure you have the anti-theft code for the radio, then write down the frequencies for the radio's preset buttons.
- Move the seat to the midway point of travel.
- Disconnect the negative cable from the battery, and wait at least three minutes before beginning work.
- Take care not to scratch the body or tear the seat covers.
- The passenger's seat is shown; the driver's seat is similar but it does not have an OPDS unit.

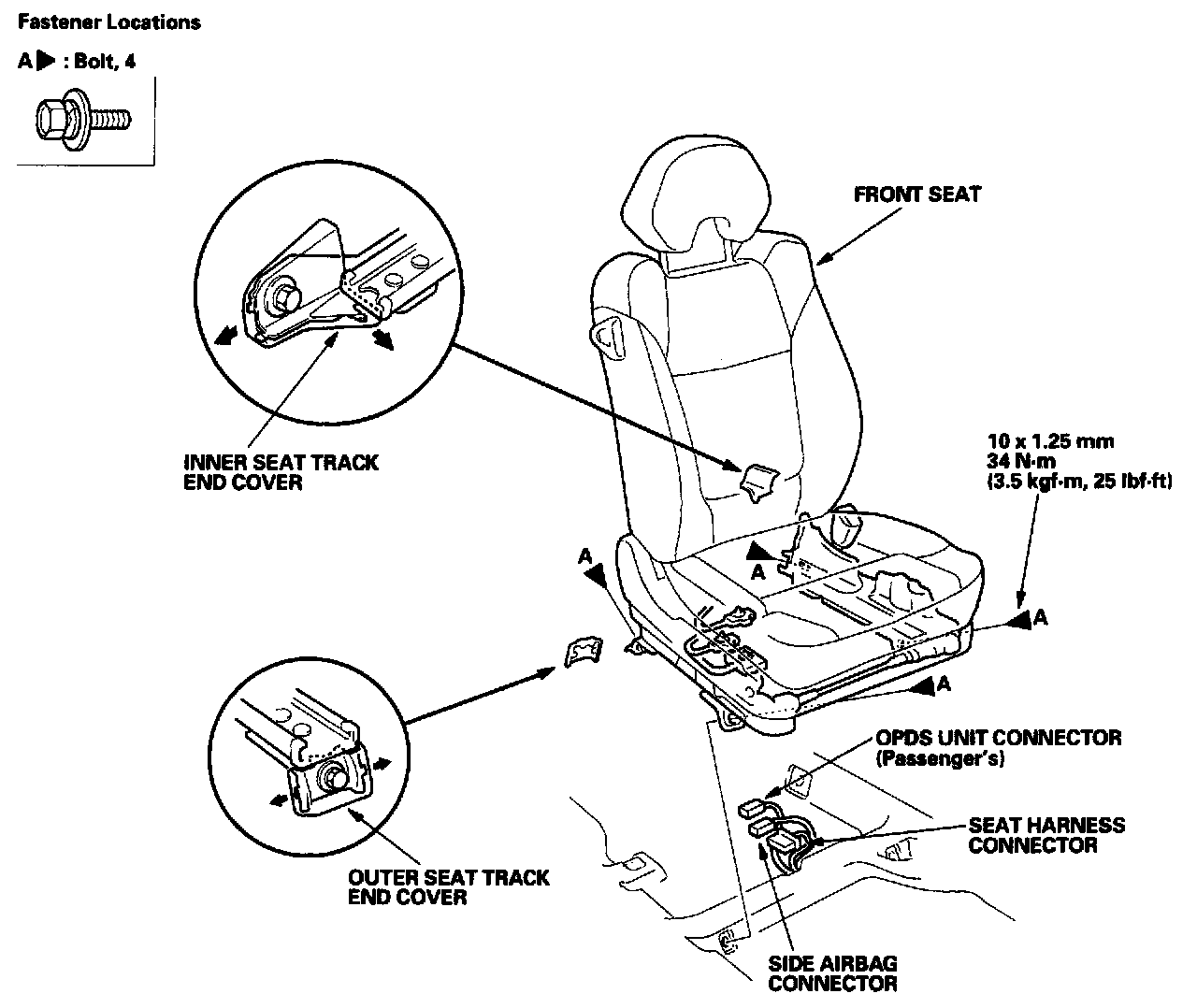

1. Remove the seat as shown.




2. Install the seat in the reverse order of removal, and note these items:
- Make sure the seat harness connector, the side airbag connector, and the OPDS unit connector are plugged in properly.
- Enter the anti-theft code for the radio, then enter the customer's radio station presets.
- Reset the clock.
