Side Defogger Vent Trim

Side Defogger Vent Trim Removal and Installation

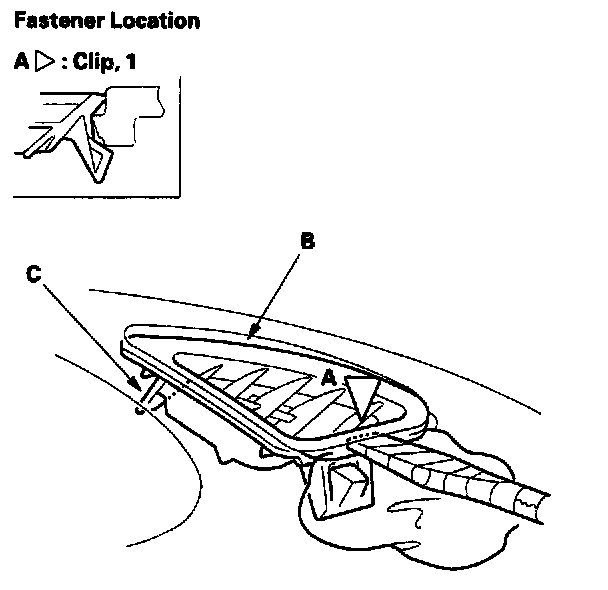

1. Wrap a flat-tip screwdriver with protective tape, and apply protective tape around the related parts to prevent damage. Carefully insert a flat-tip screwdriver next to the clip (A), and detach the clip by prying on the side defogger vent trim (B). Take care not to scratch the dashboard and related parts.
2. Remove the vent trim by releasing the hook (C).
3. Reinstall the hook portion of the vent trim first, then securely push the clip into place.
