Drive Belt: Adjustments

Pump Belt Inspection and Adjustment

Special Tools Required
Belt tension gauge set 07JGG-001000A or Belt tension gauge 07JGG-001010A

Belt tension gauge method

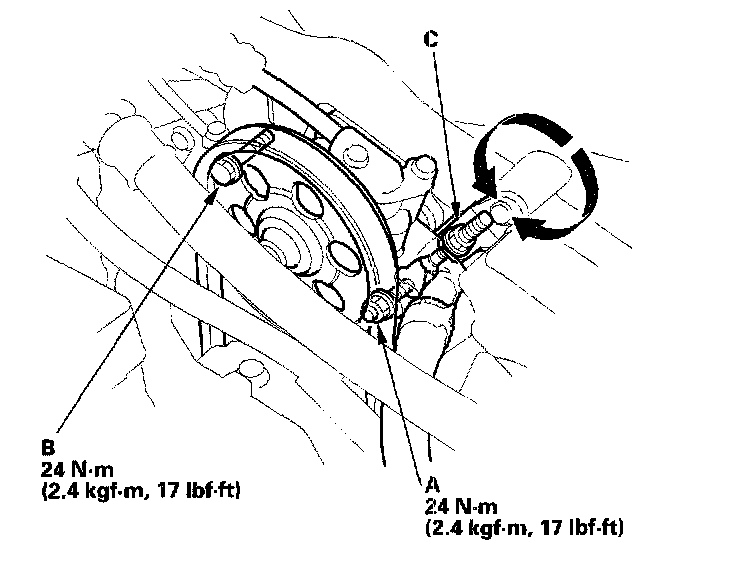

3. Loosen the power steering pump mounting nut (A) and bolt (B).
4. Turn the adjusting nut (C) to get the proper belt tension, then retighten the mounting nut and bolt.
5. Start the engine and turn the steering wheel from lock-to-lock several times, then stop the engine and recheck the tension of the belt.

Deflection Method

3. Loosen the power steering pump mounting nut (A) and bolt (B).
4. Turn the adjusting nut (C) to get the proper belt tension, then retighten the mounting nut and bolt.
5. Start the engine and turn the steering wheel from lock-to-lock several times, then stop the engine and recheck the tension of the belt.
