Door Key Cylinder Switch
Keyless Entry/Security Alarm SystemDoor Key Cylinder Switch Test 1.
Remove the door panel.
2.

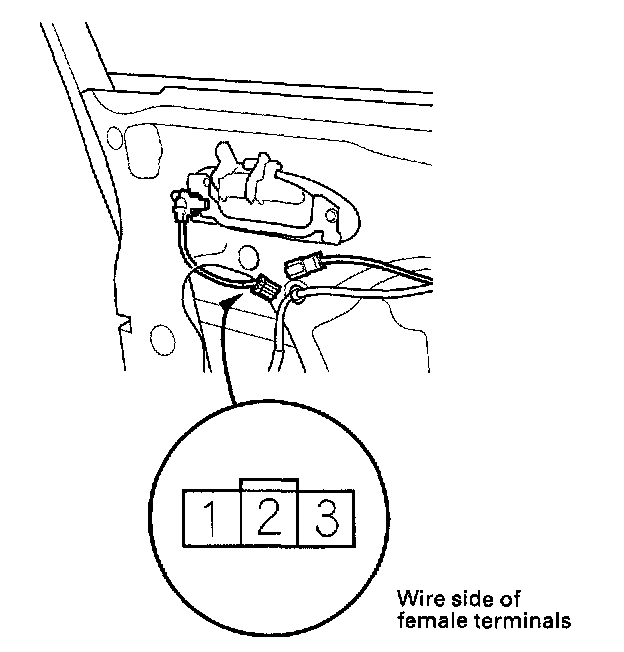

Disconnect the 3P connector from the key cylinder switch.
3.
Check for continuity between the terminals in each switch position according to the table.
4.
If the continuity is not as specified, replace the key cylinder switch.
