Steering Angle Sensor: Service and Repair

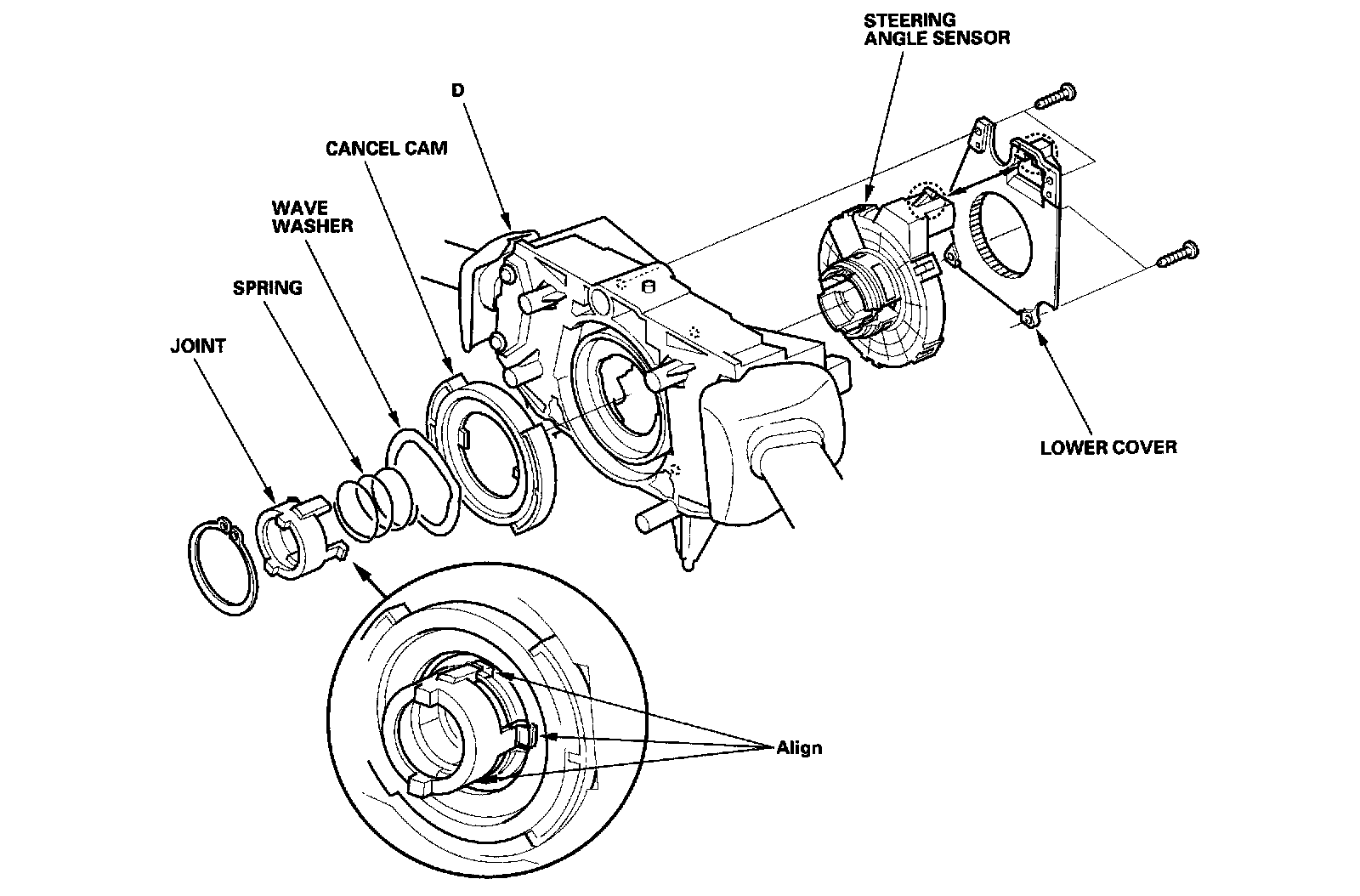

Steering Angle Sensor Replacement NOTE: Do not damage or drop the
steering angle sensor as it is sensitive.
1.
Remove the combination light switch.
2.
Remove the circlip and screws, then remove the
steering angle sensor from the
combination switch.
3.
Install the sensor in the reverse order of removal.
NOTE: Do not apply any grease or oil to the
steering angle sensor.
