Secondary HO2S Replacement

Secondary HO2S Replacement

Special Tools Required
O2 sensor wrench, Snap-on YA8875, SP Tools 93750, or equivalent, commercially available




'02-03 models:

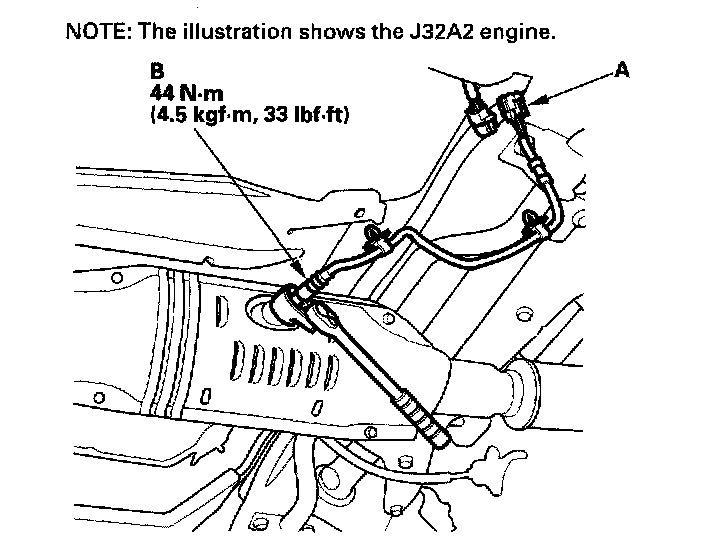

1. Disconnect the secondary HO2S 4P connector (A), then remove the secondary HO2S (B).
2. Install the secondary HO2S in the reverse order of removal.
