PCM Reset Procedures
How to Reset the PCM 1.
Make sure you have the anti-theft code for the radio, then write down the radio station presets.
2.
Turn the
ignition switch OFF.
3.
Use one of these methods to reset the
PCM memory:
-

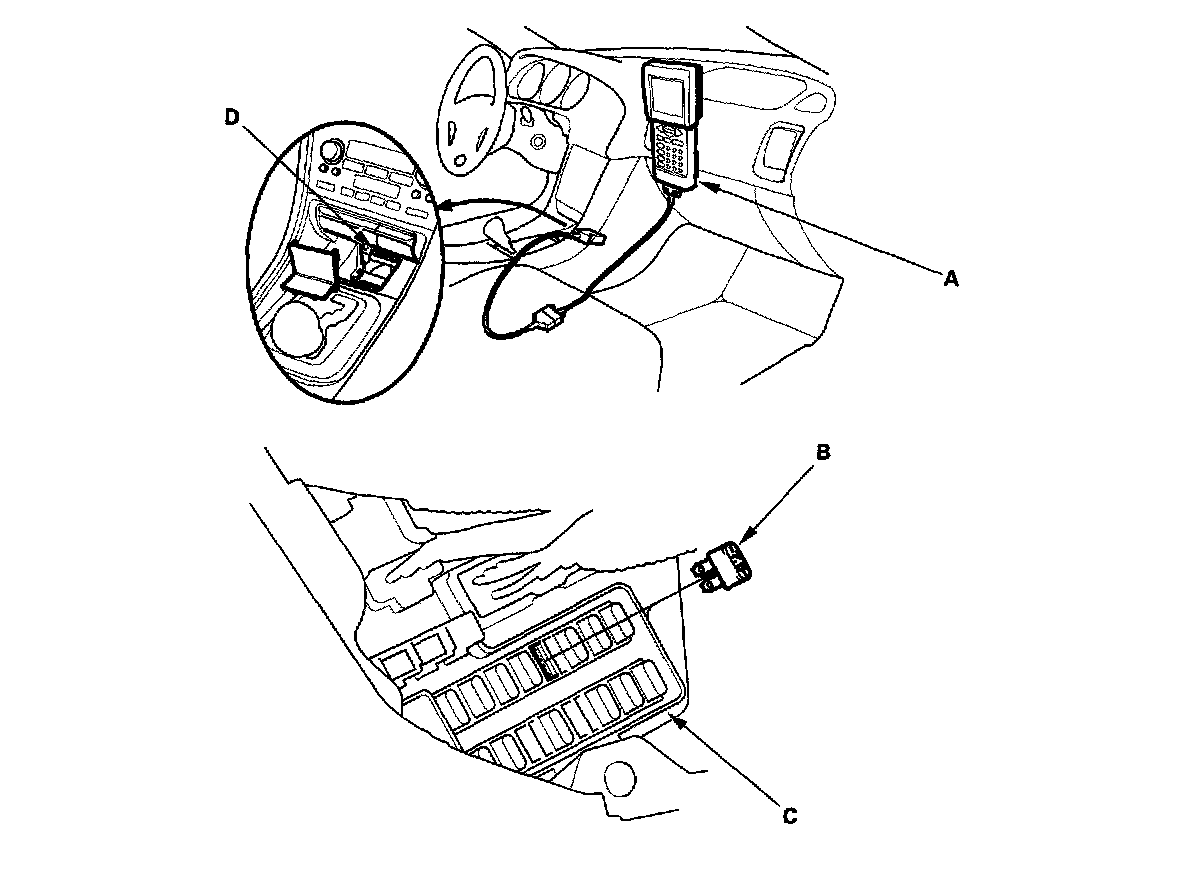

Use the OBD II Scan Tool or the Honda PGM Tester (A).
-
Remove the BACK-UP fuse (7.5A) (B) from the passenger's under-dash fuse/relay box (C) for
10 seconds.
