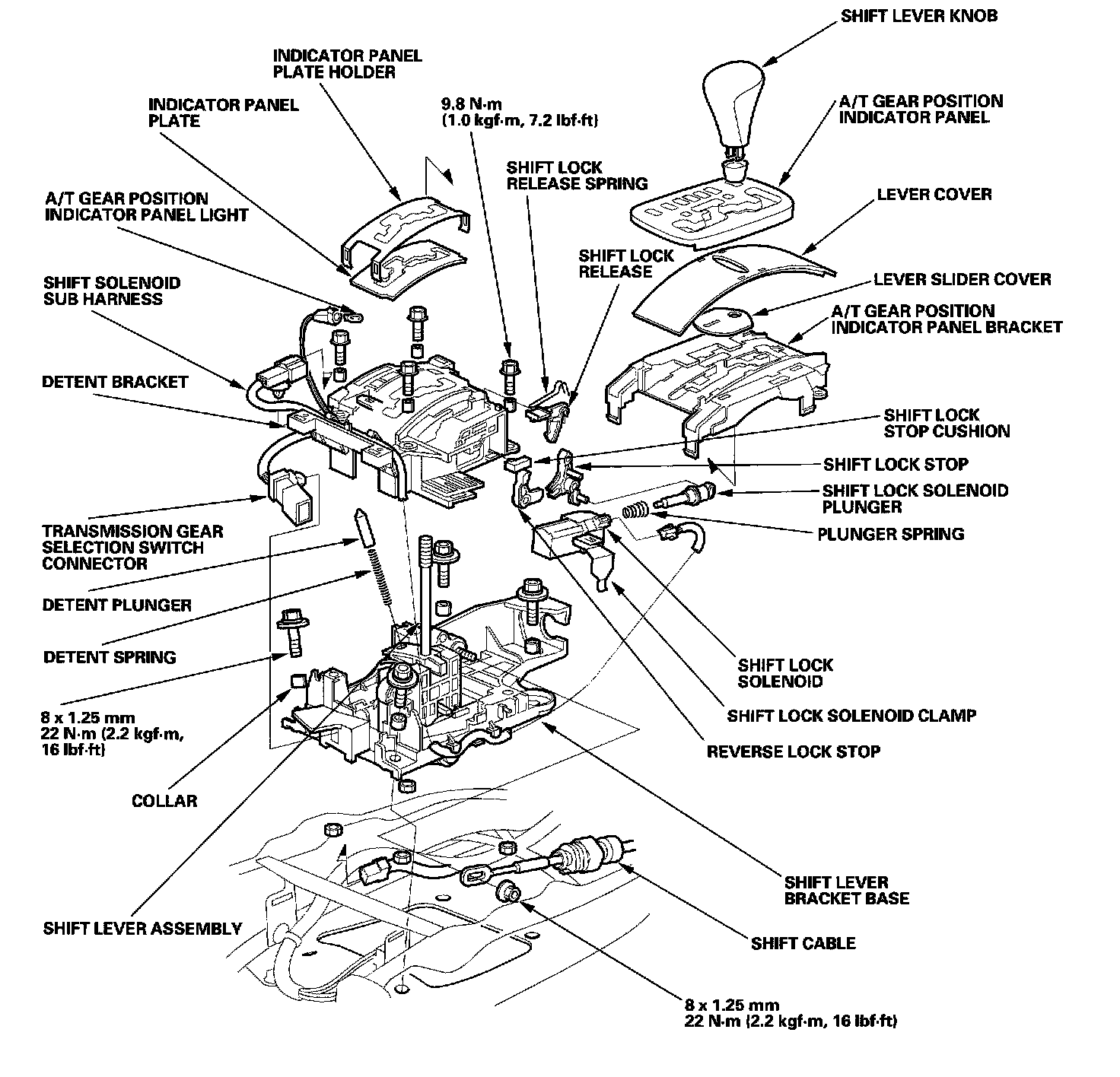

Shift Lever Disassembly/Reassembly
Shift Lever Disassembly/Reassembly Apply silicone grease to these parts:
-
Movable parts of the shift lever.
-
Movable parts of the shift lock/reverse lock mechanism. Sliding surfaces on the opening of the indicator panel and panel holder. Sliding surfaces on the detent plate. Contact surfaces between of the shift lever assembly and the shift lock stop. Detent plunger and detent spring.
