Transmission Temperature Sensor/Switch: Service and Repair

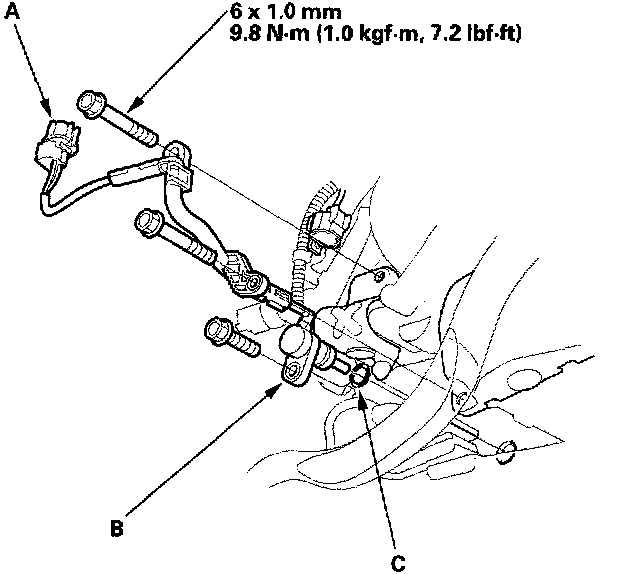

ATF Temperature Sensor Replacement 1.
Disconnect the connector (A) from the ATF temperature sensor.
2.
Remove the bolts securing the sensor harness clamp and ATF temperature sensor, then remove the ATF temperature sensor (B).
3.
Install the new ATF temperature sensor with a new O-ring (c).
4.
Install the harness clamp, then connect the connector.
