Washer Fluid Level Switch: Testing and Inspection
Washer Fluid Level Switch Test (Canada) 1.
Remove the right inner fender.
2.

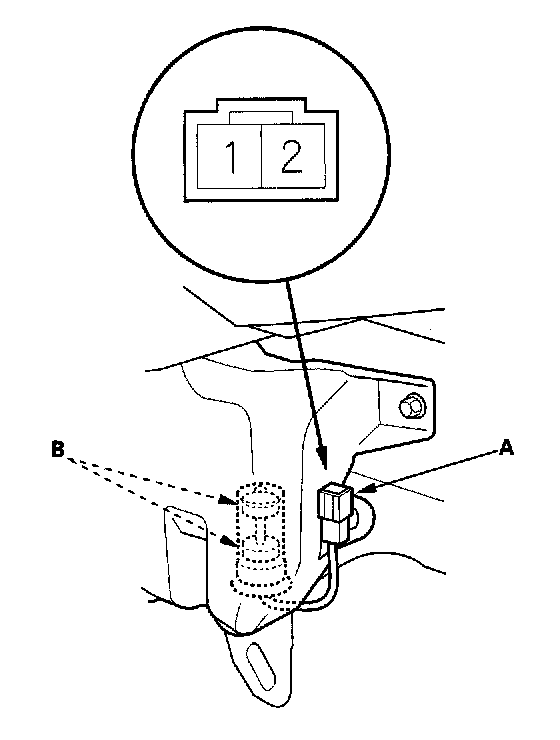

Disconnect the switch 2P connector (A).
3.
Remove the washer level switch from the reservoir.
NOTE: Fluid may flow out of the opening.
4.

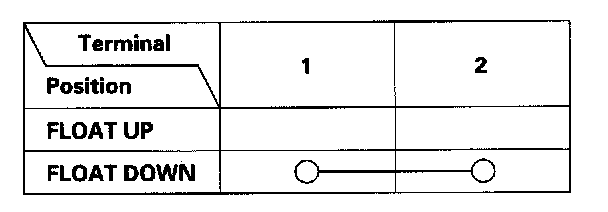

Check for continuity between the terminals in each float (B) position according to the table.
