Parking Brake System: Testing and Inspection
Check 1.

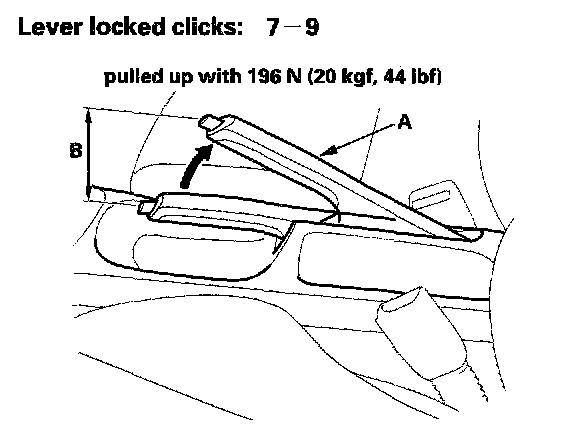

Pull the
parking brake lever (A) with
196 N (20 kgf, 44 lbs.) of force to fully apply the parking brake. The parking brake lever should be locked within the specified number of clicks (B). Lever locked clicks:
7 - 9 2.
Adjust the parking brake if the lever clicks are not within the specification.
