Shift Interlock Solenoid: Service and Repair
Shift Lock Solenoid Replacement1. Remove the center console.

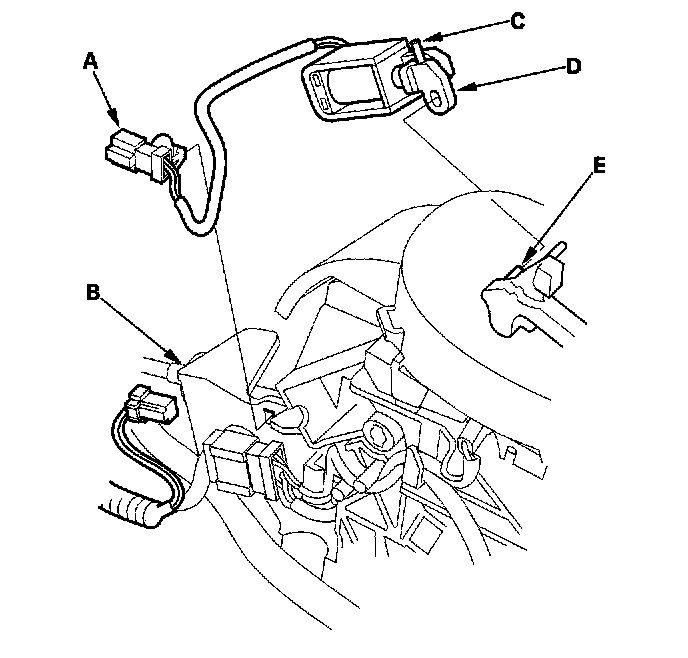

2. Disconnect shift lock solenoid connector IA), and remove it from the shift lever bracket base (B).
3. Remove the shift lock solenoid with needle-nose pliers.
4. Install the new shift lock solenoid (C) by aligning the joint of the shift lock solenoid plunger (D) with the tip of the shift lock stop (E).
5. Install the shift lock solenoid connector on the shift lever bracket base, then connect the connector.
6. Install the shift lever console panel.
