Center Console Rear Cover Replacement
Center Console Rear Cover ReplacementSpecial Tools Required
KTC trim tool set SOJATP2014 *
* Available through the American Honda Tool and Equipment Program
NOTE:
- Take care not to scratch the console.
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
1. Remove the center console rear section.

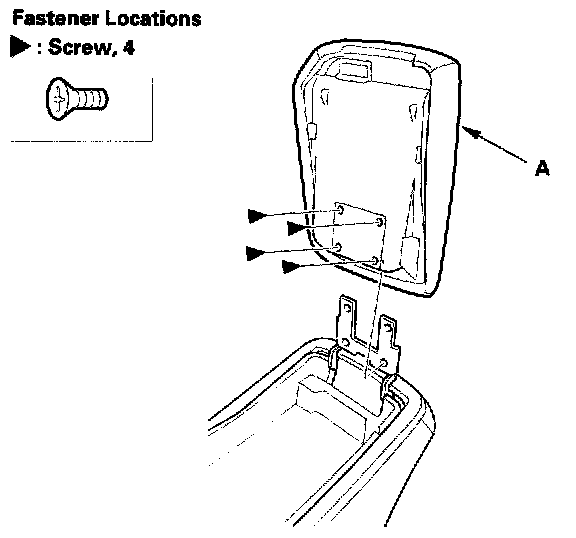

2. Open the armrest (A) and remove the screws, then remove the armrest.

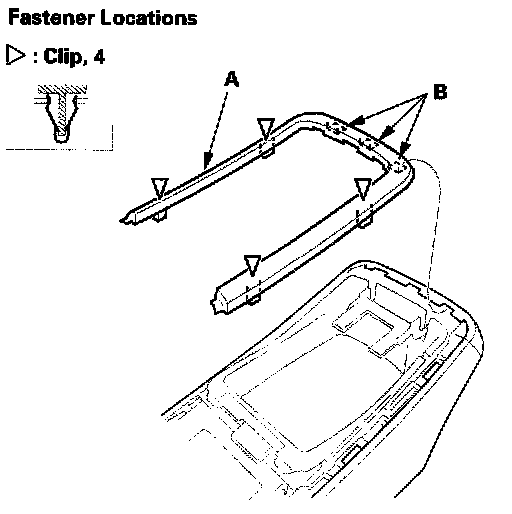

3. Detach the clips, then pull the console upper trim (A) up and forward to release the hooks (B).

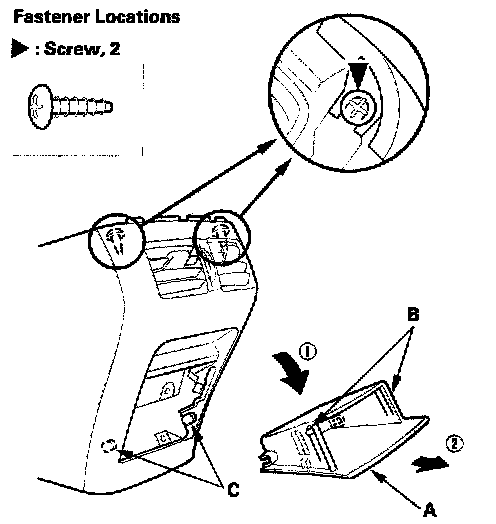

4. Remove the console pocket (A).
1. Open the console pocket, and release the hooks (B).
2. Pull the console pocket out to release the tabs (C).
5. Loosen the screws both sides.

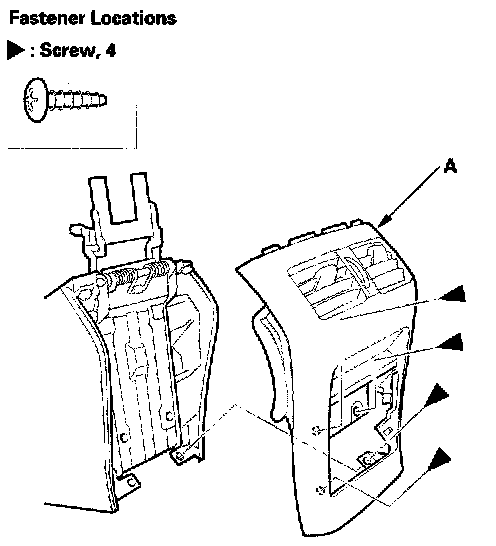

6. Remove the screws then remove the center console rear cover (A).
7. Install the cover in the reverse order of removal, and note these items:
- Replace any damaged clips.
- Push the clips into place securely.
