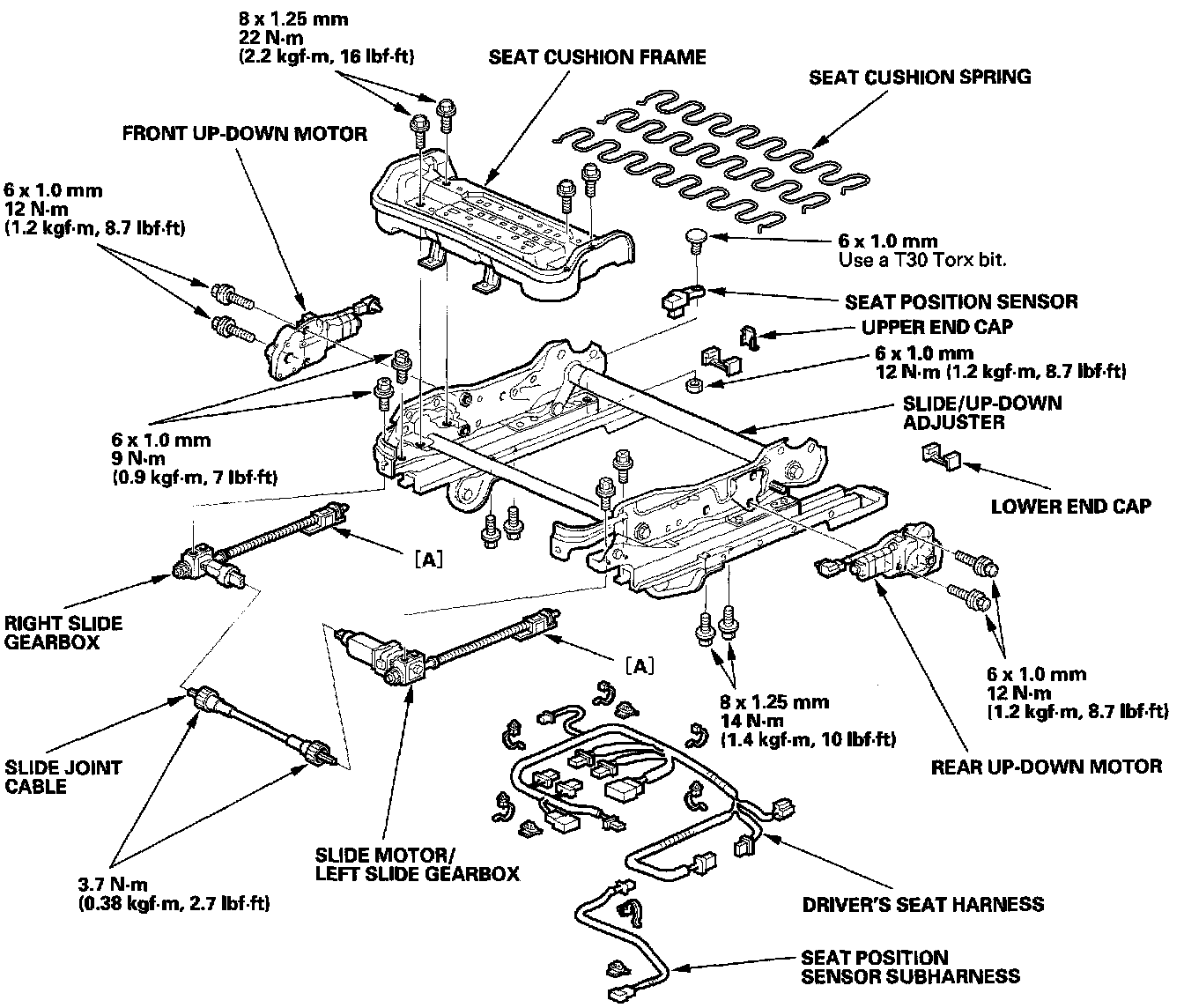

Front Seat Linkage Disassembly/Reassembly - 10-Way Power

Front Seat Linkage Disassembly/Reassembly - 10-Way Power

'05-06 Models




- The operation of the driver's seat position sensor must be checked after any of these actions:
- Driver's seat position sensor replacement
- Cover plate (front side of driver's seat slide rail) replacement

NOTE:
- Put on gloves to protect your hands.
- To remove the slide motor and slide gearbox, slide the front seat forward fully.
- Before installing the slide motor and slide gearbox, align portion (A) as shown to align both slide gearbox positions.
- Apply multipurpose grease to the sliding and pivot portions of the linkage.
- Check operation of the recline and slide adjuster.
