Rocker Arm Assembly Removal

Rocker Arm Assembly Removal
1. Remove the cylinder head cover.

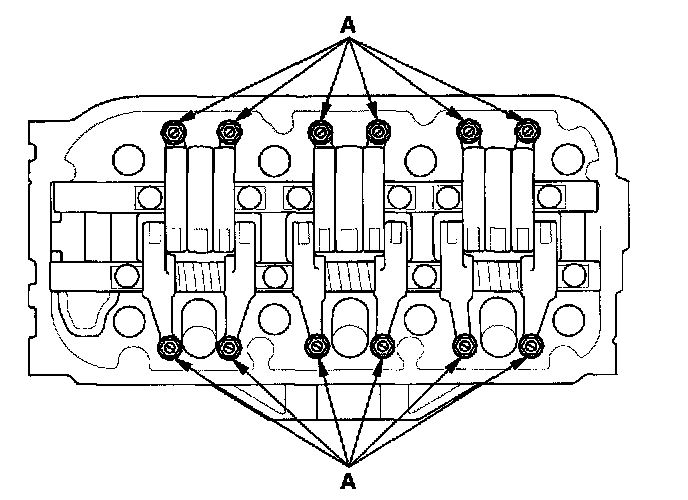

2. Loosen the adjusting screws (A).

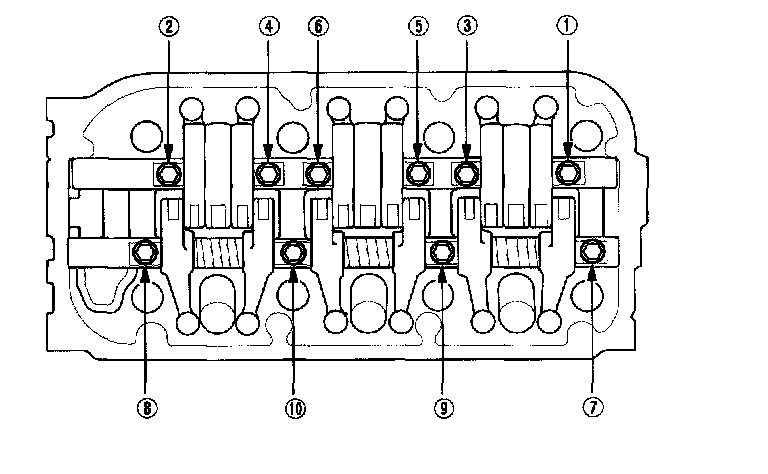

3. Remove the bolts and the rocker arm assembly.
- 1 Unscrew the rocker shaft mounting bolts two turns at a time, to prevent damaging the valves or rocker arm assembly.
- 2 When removing the rocker arm assembly, do not remove the rocker shaft mounting bolts. The bolts will keep the springs and the rocker arms on the shafts.
