Clock: Service and Repair
ReplacementWithout NavigationNOTE: Vehicles with navigation; refer to audio-HVAC subdisplay unit removal/installation.
1.
Remove the upper panel.
2.

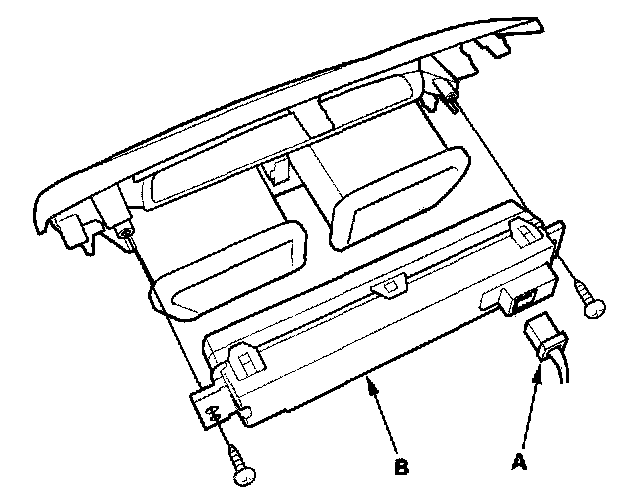

Disconnect the 5P connector (A) from the clock.
3.
Remove the two mounting screws, and remove the clock (B).
4.
Install in the reverse order of removal.
