HFL Switch/HFL-Voice Control Switch Test/Replacement

HFL Switch/HFL-Voice Control Switch Test/Replacement

1. Remove the driver's airbag assembly.

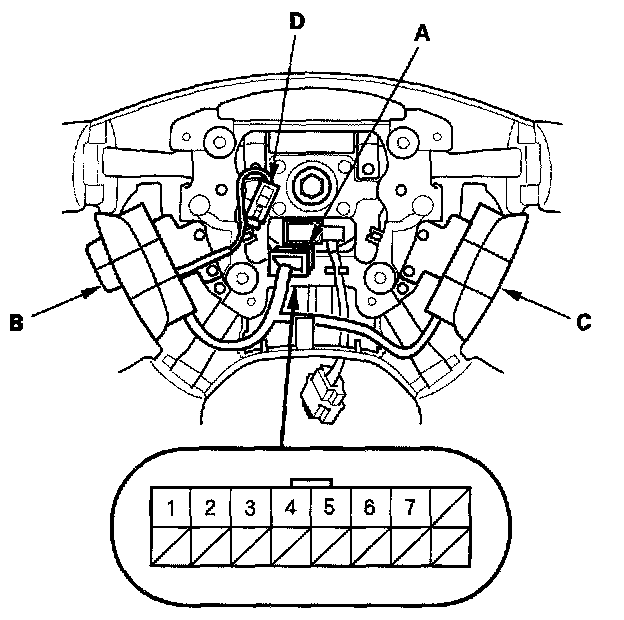

2. Disconnect the 16P connector (A) from the cable reel.

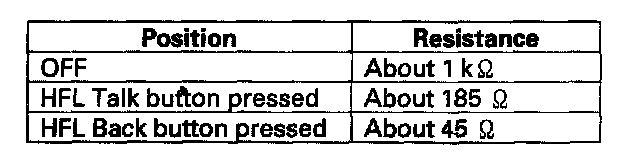

3. Measure resistance between the 16P connector No. 6 and No. 7 terminals in each switch position according to the table.
4. If the resistance is not as specified, remove the screws and the 1P connector (D), then replace the HFL switch (B) and cruise SET/RESUME/CANCEL switch (C) as an assembly.
