Navigation Module: Locations

Relay And Control Unit Locations - Dashboard Part 3:



Relay And Control Unit Locations - Seats:

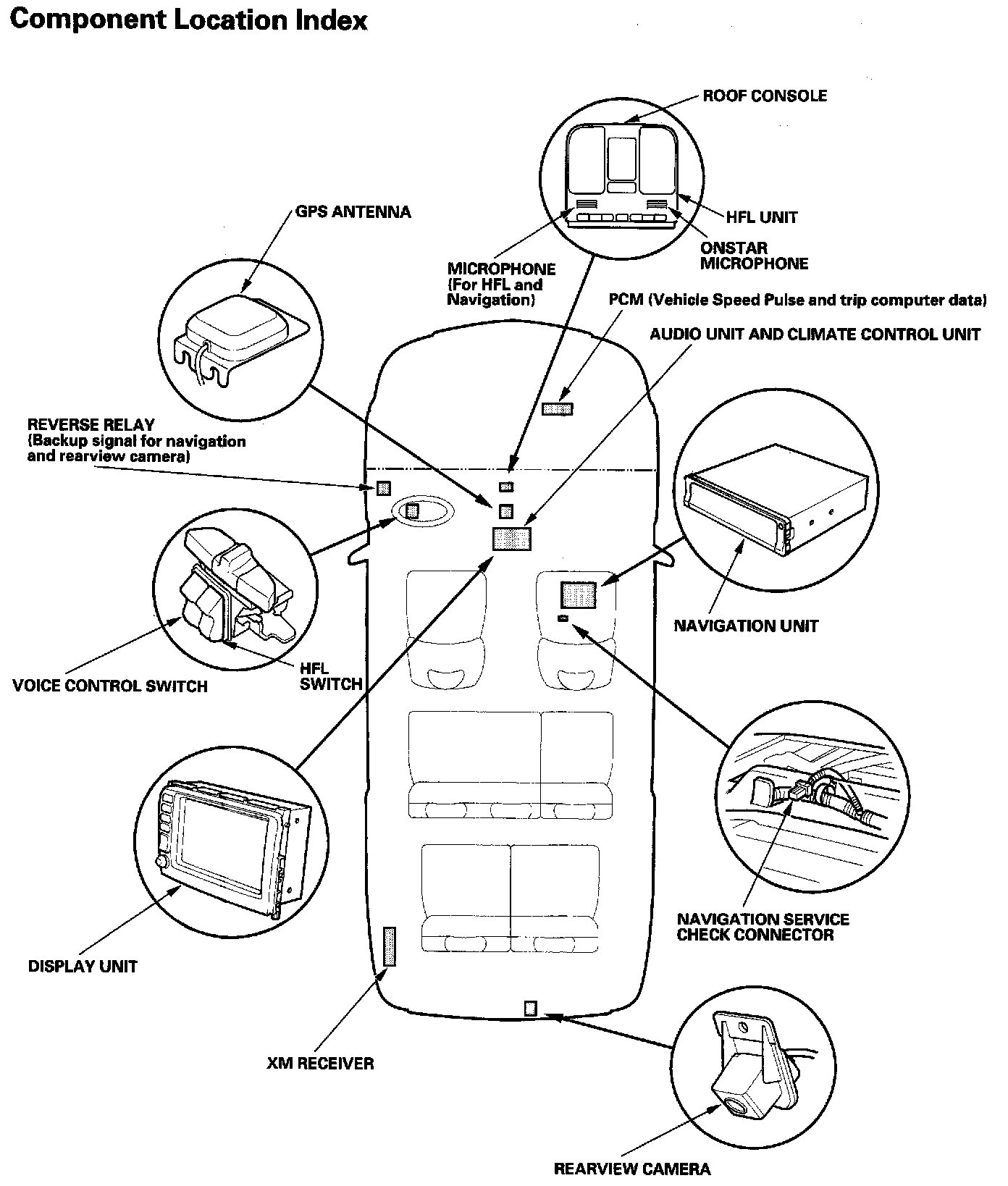

Navigation System - Component Location Index:
