Voice Control Switch Test/Replacement
Voice Control Switch Test/Replacement1. Remove the driver's airbag assembly.

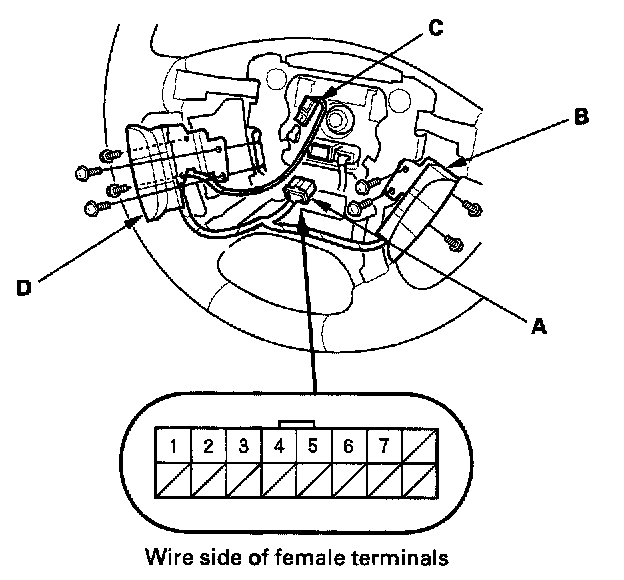

2. Disconnect the 16P connector (A) from the cable reel.
3. Measure the resistance between the 16P connector No. 4 and No. 7 terminals in each switch position according to the table.
4. If the resistance is not as specified, go to step 5.
5. Remove the two screws and the cruise control set/resume/switch (B) from the steering wheel.
6. Remove the four screws, the 1P connector (C) and the radio remote switch (D), HFL-voice control switch and cruise set/resume/cancel switch as an assembly.
