Front Fender Fairing

Front Fender Fairing Replacement

1. Remove the front inner fender as necessary.

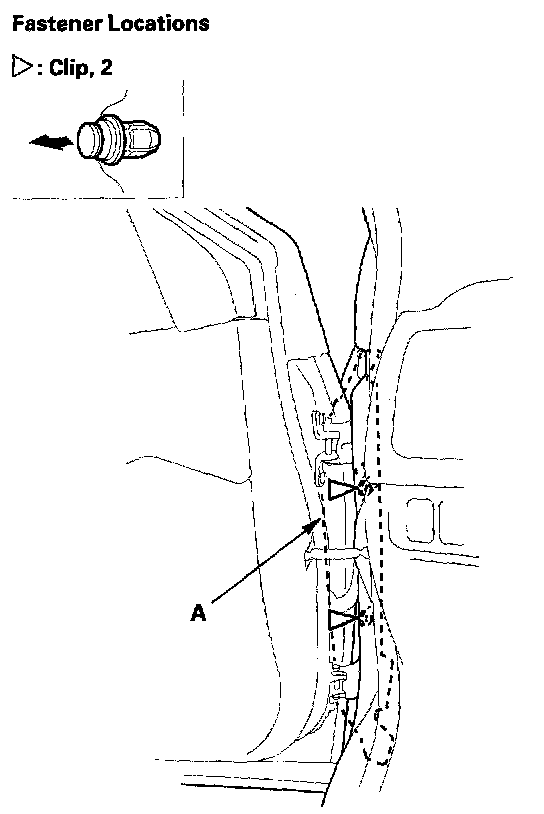

2. Open the front door. From inside the door, remove the clips securing the front fender fairing (A).

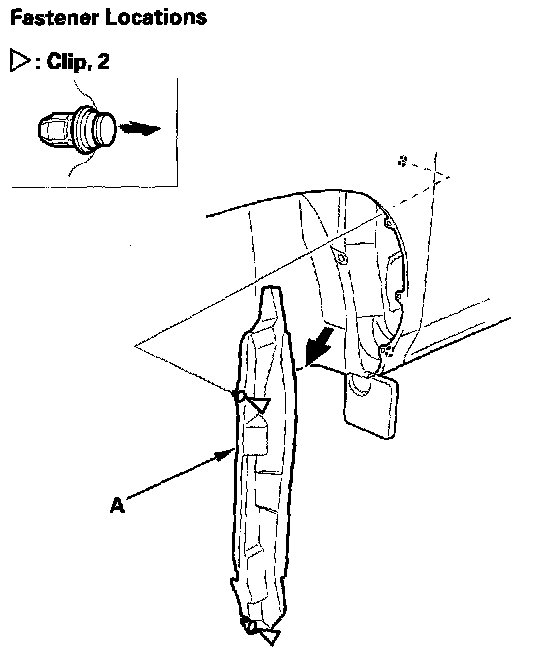

3. From the wheel arch, release the clip, then remove the front fender fairing (A).
4. Install the fender fairing in the reverse order of removal, and note these items:
- Check the clips for damage or stress-whitening, and replace them with new one.
- Push the clips into place securely.
