Front Inner Fender

Front Inner Fender Replacement

NOTE: Take care not to scratch the body.

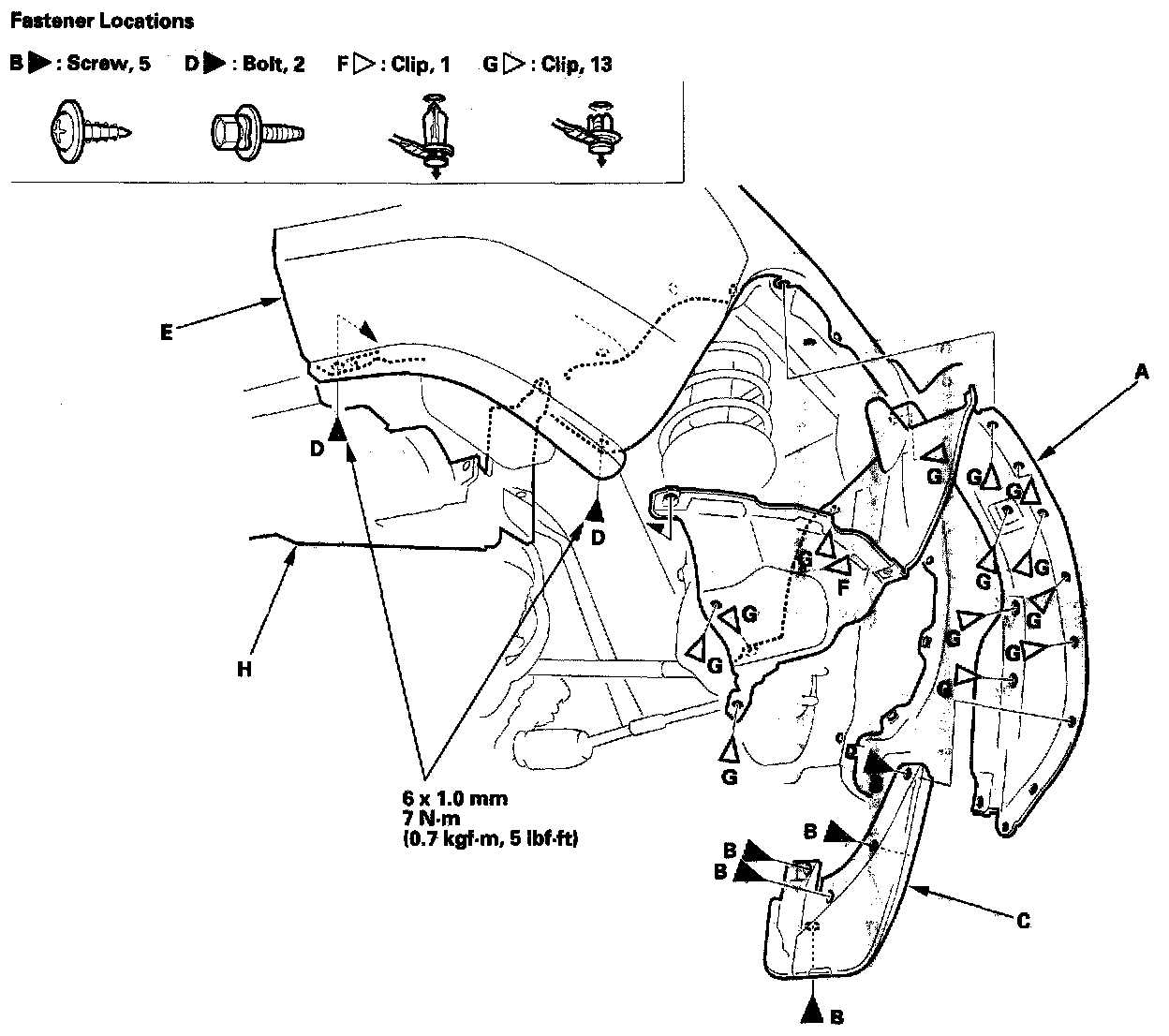

1. Remove the front inner fender (A).
1. Remove the screws (B), then remove the front splash guard (C).
2. Remove the bolts (D) securing the front bumper (E) and front inner fender.
3. Remove the clips (F, G) securing the front inner fender (and splash shield (H)) on the body.
4. Remove the front inner fender.

2. Install the inner fender in the reverse order of removal, and note these items:
- Check the clips for damage or stress-whitening, and replace them with new one.
- Push the clips into place securely.
