Grille: Service and Repair

Front Bulkhead Cover Replacement

Special Tools Required
KTC trim tool set SOJATP2014 *
* Available through the American Honda Tool and Equipment Program

NOTE:
- Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
- Take care not to scratch the front bulkhead and body.

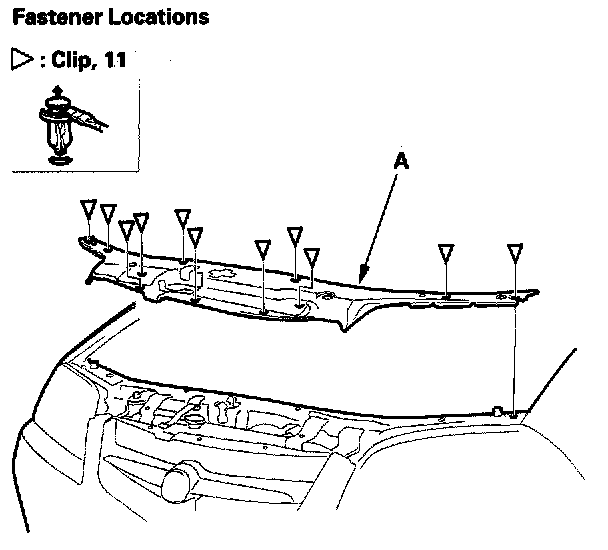

1. Detach the clips, then remove the front bulkhead cover (A).
2. Install the front bulkhead cover in the reverse order of removal, and note these items:
- Check the clip(s) for damage or stress-whitened, and replace them with new one(s).
- Push the clips into place securely.
