Power Mirror Motor: Service and Repair

Power Mirror Actuator/Tweeter Harness Replacement

1. Remove the power mirror.
2. Disconnect the connector(s).

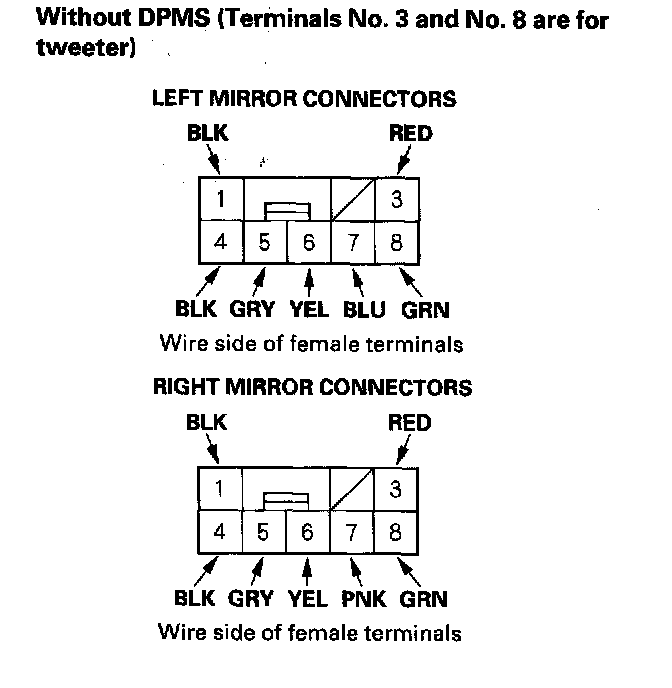

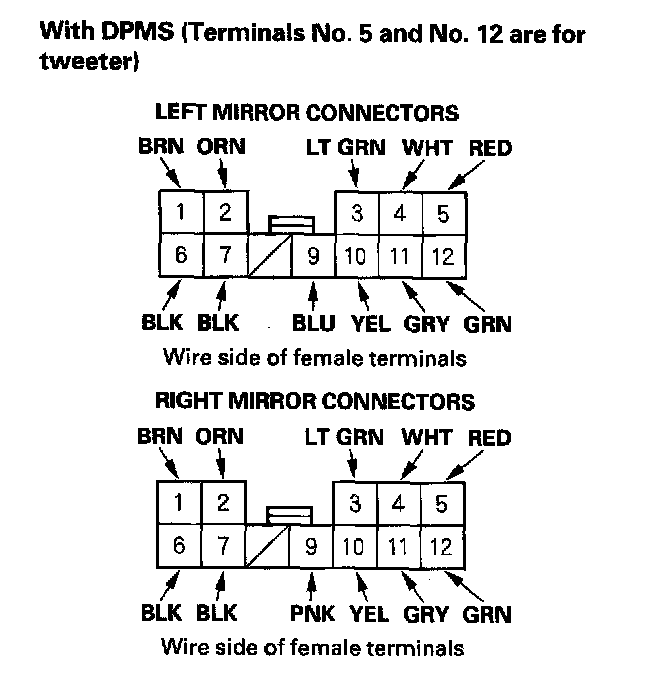

3. Record the terminal locations and wire colors.

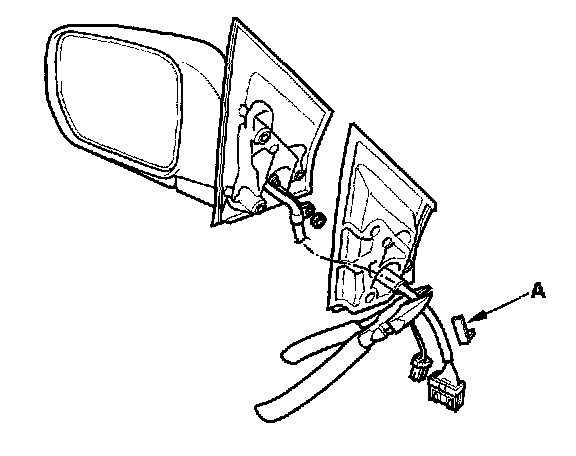

4. Remove the wire harness clip (A) from the harness, then cut the harness with wire cutters.

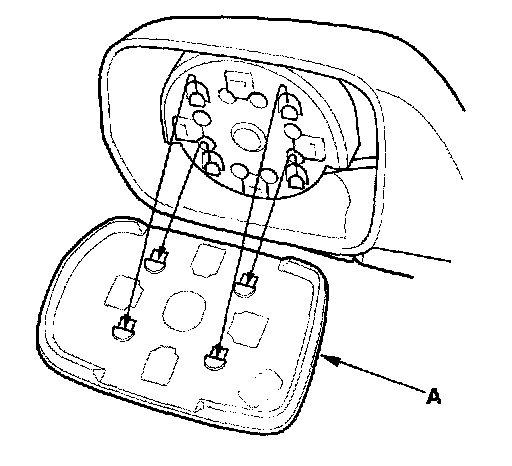

5. Slide the mirror holder (A) up and remove it.

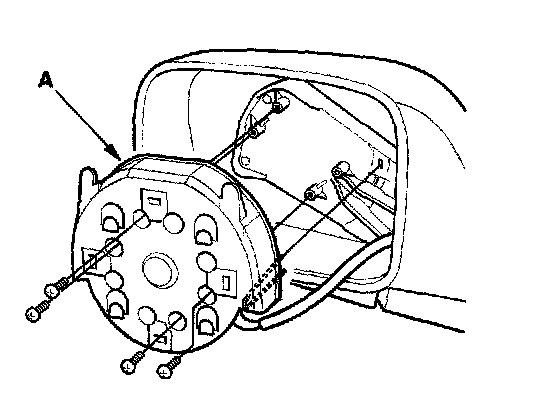

6. Remove the four screws, then remove the actuator (A).

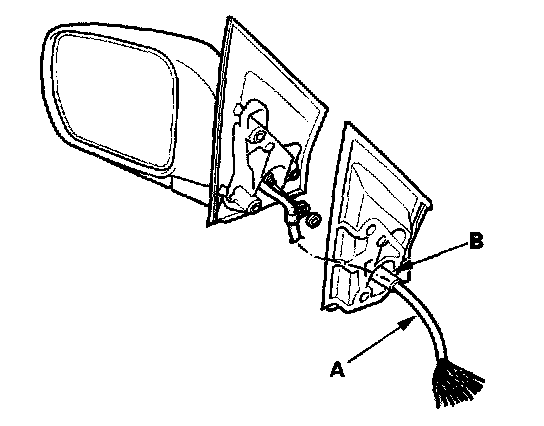

7. Route the wire harness (A) of the new actuator through the hole in the bracket (B).







8. Insert the terminals into the connector.

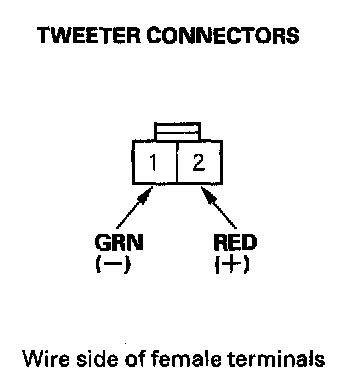

9. Insert the terminals of tweeter side into the new tweeter 2P connector.
10. Reattach the wire harness clip to the harness with tape in its original position.
11. Seal the intersection of wire harness with tape.
12. Reassemble in the reverse order of disassembly. Be careful not to break the mirror holder when reinstalling it to the actuator.
13. Reinstall the mirror assembly to the door.
14. Operate the power mirror to ensure smooth operation.
