Power Seat Control Module: Locations

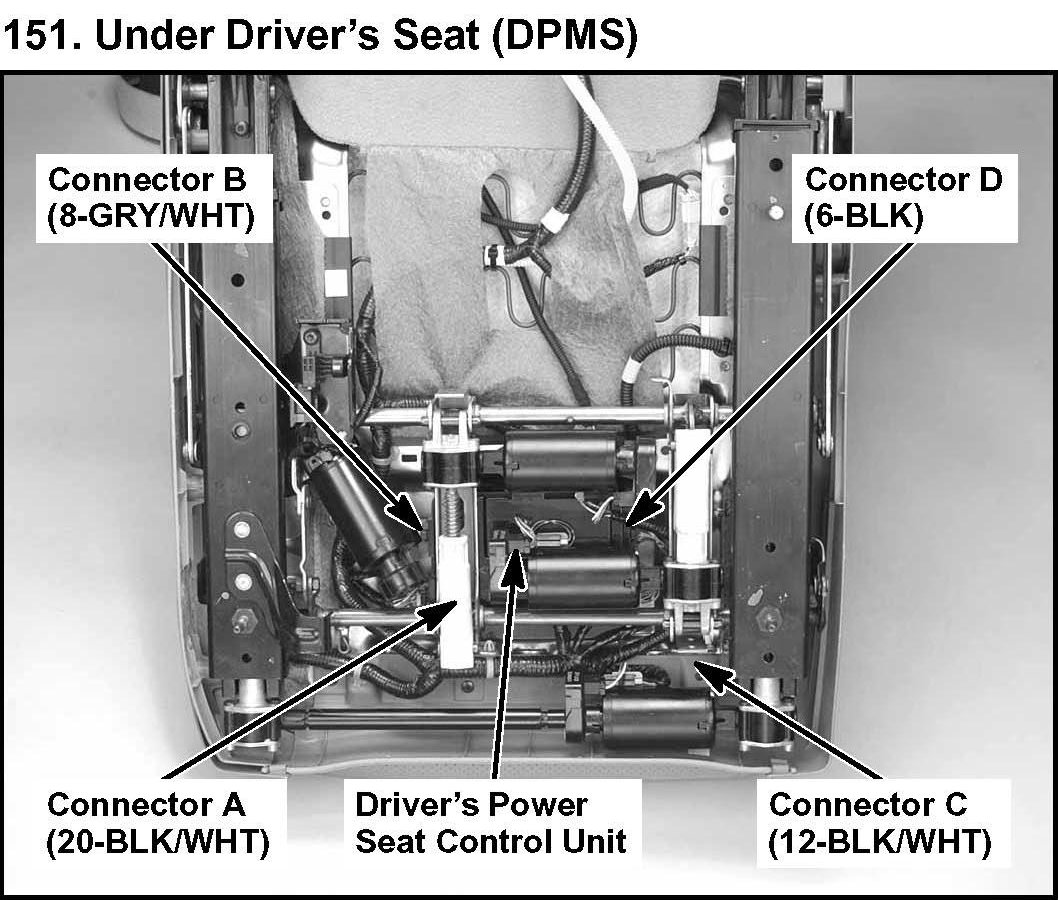

151. Under Driver's Seat (DPMS):

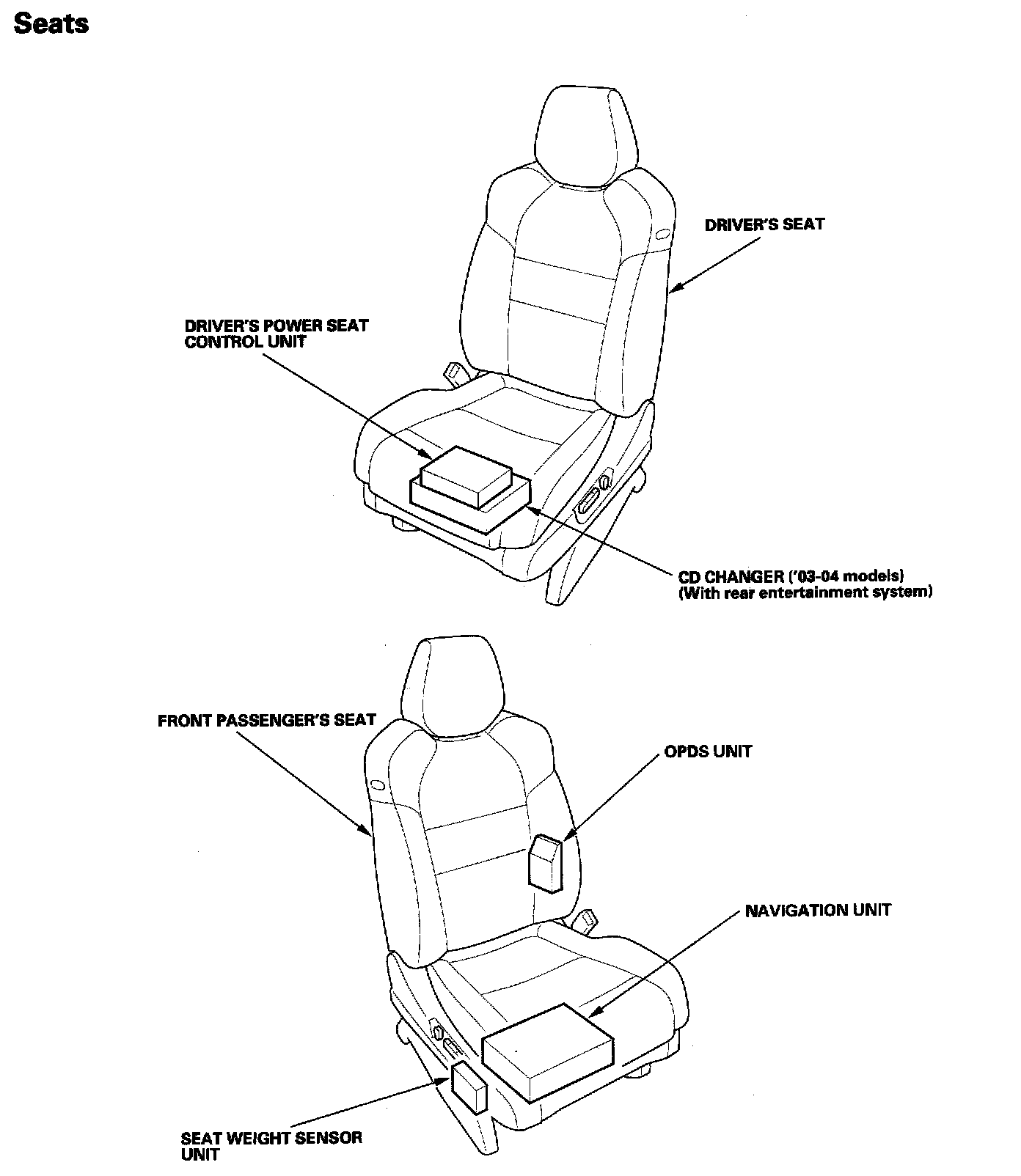

Relay And Control Unit Locations - Seats:

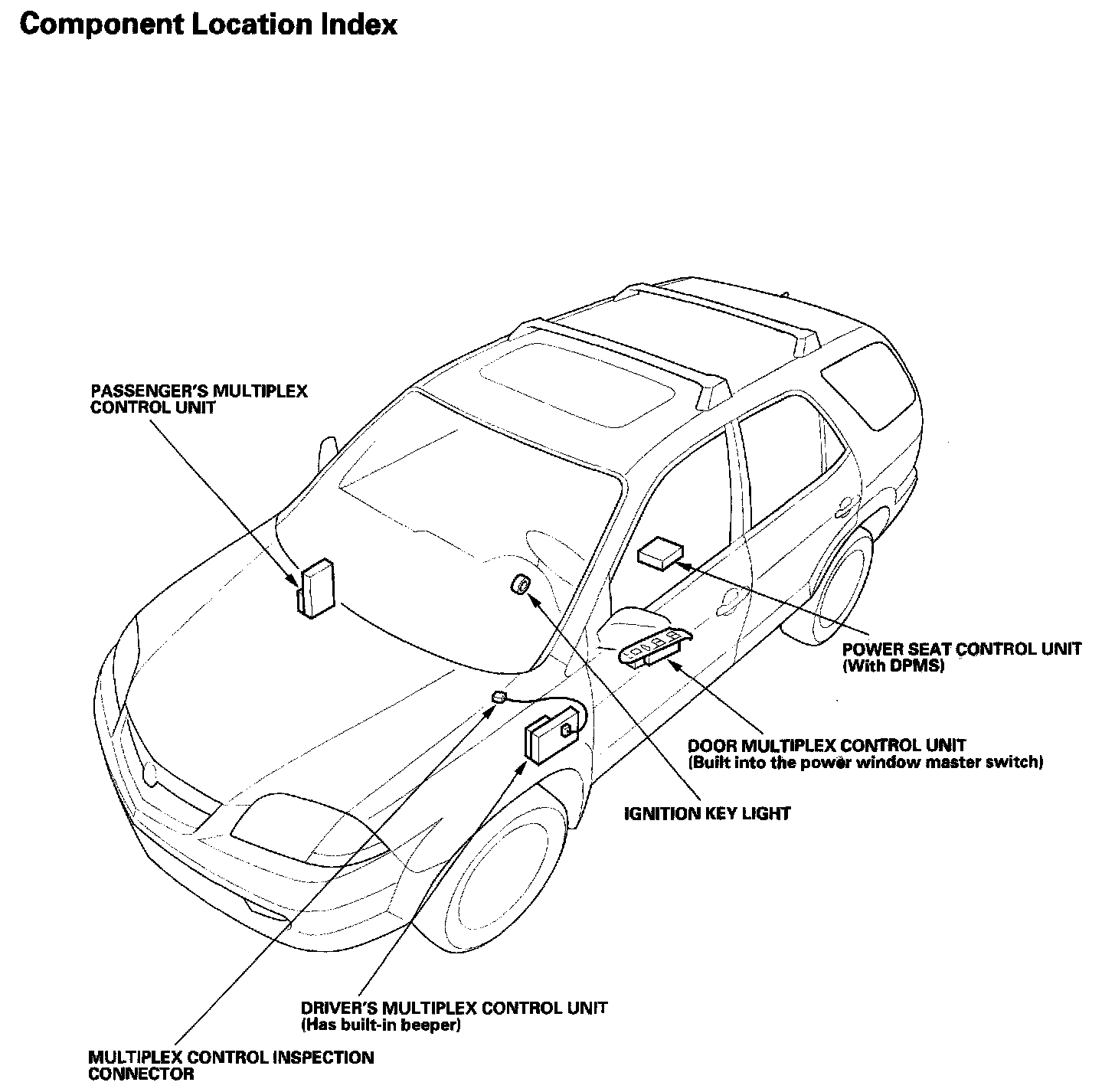

Multiplex Control System - Component Location Index:

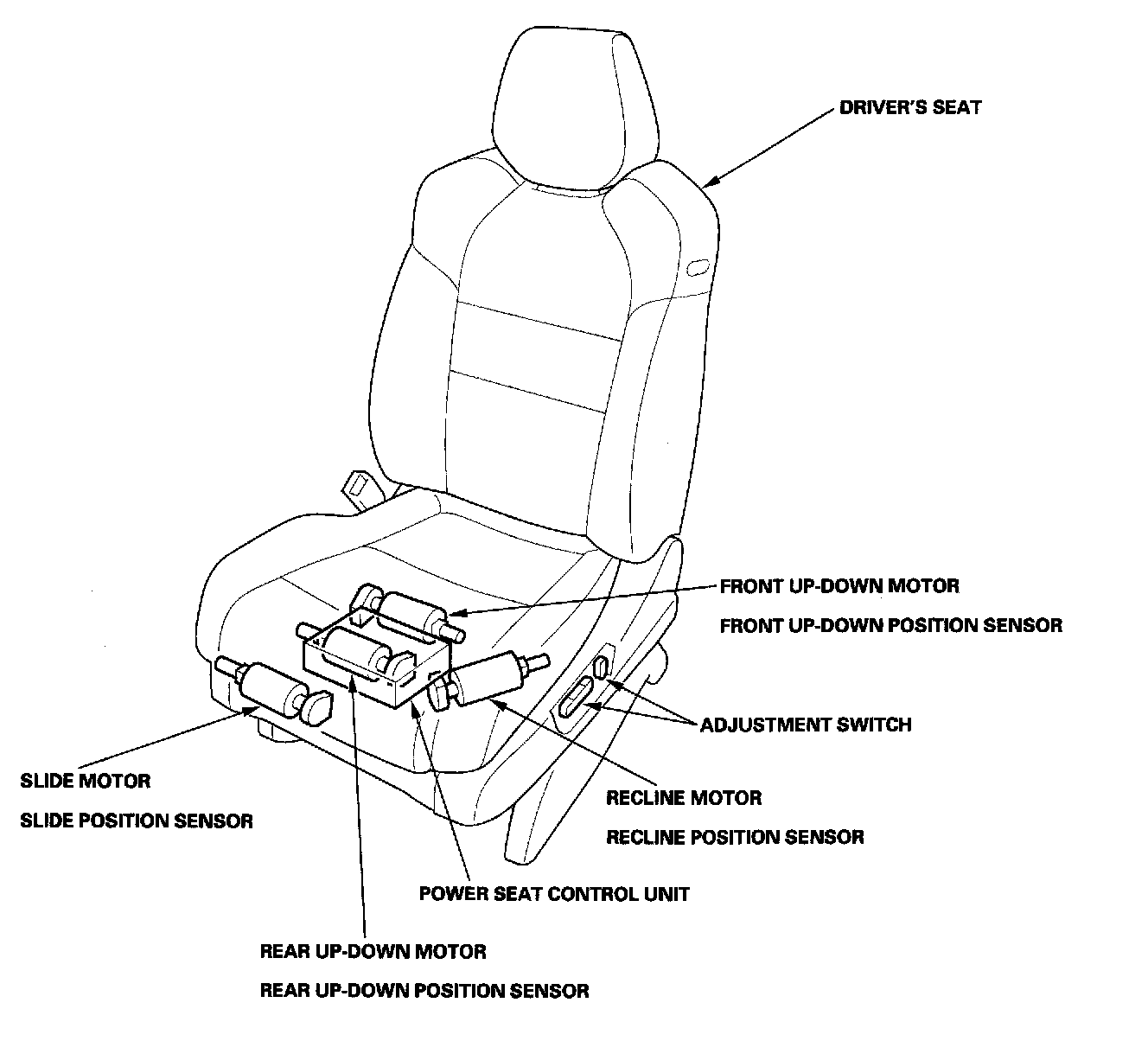

Driving Position Memory System (DPMS) - Component Location Index:
