Traction Control Switch: Testing and Inspection
VSA Off Switch Test 1.

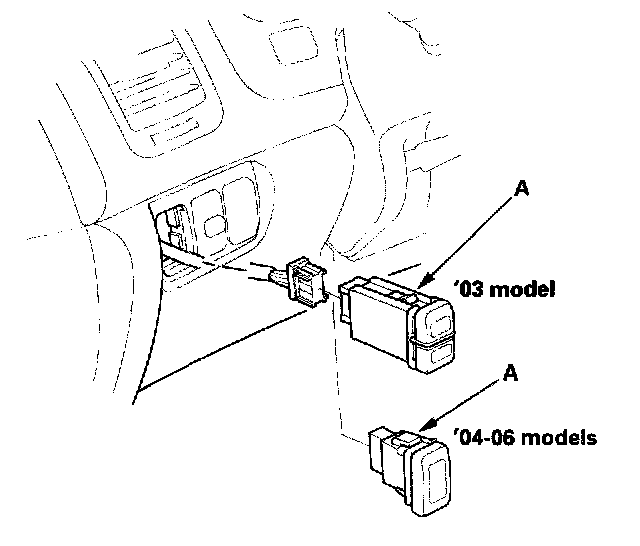

Remove the VSA OFF switch (A) from the switch panel.
2.

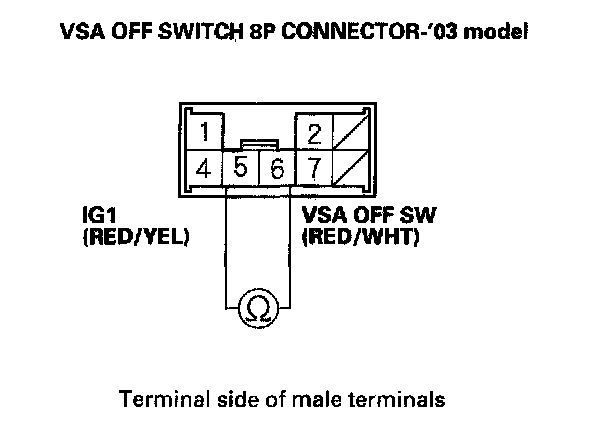

'03 model: Check for continuity between terminal No. 5 and No. 6.

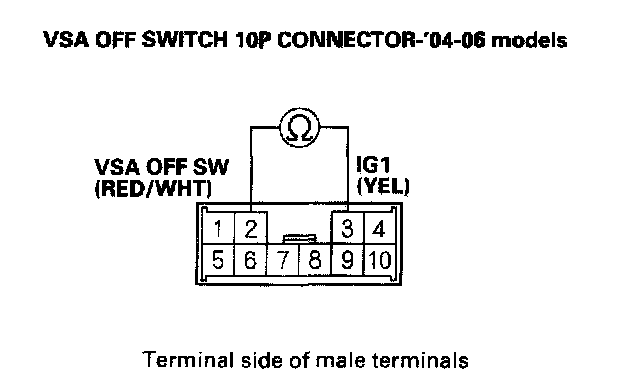

'04-06 models: Check for continuity between terminal No. 2 and No. 3.
3.
There should be continuity while the VSA OFF switch is pushed.
4.
If there is no continuity, replace the switch.
