Component Tests and General Diagnostics

Cruise Control Input Test

1. Connect the Honda Diagnostic System (HDS) to the Data Link Connector (DLC).
2. Turn the ignition switch ON (II).

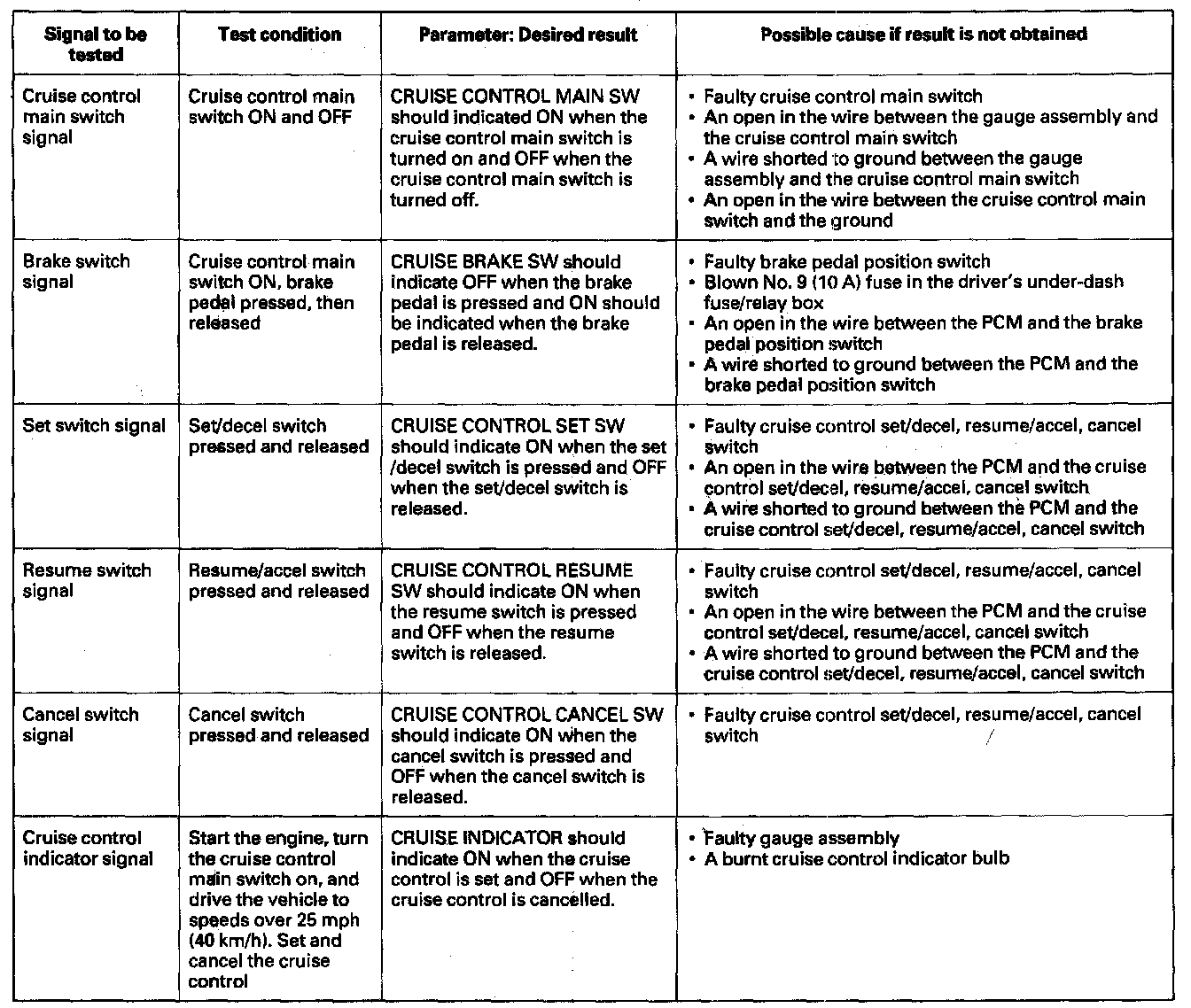

3. Do the mentioned tests while monitoring parameters in the PGM-FI DATA LIST with the HDS.

NOTE: Intermittent failures are often caused by loose circuit connections. While monitoring cruise control inputs, flex their circuits, and note if any of the test results change.
