View 301-325: 322

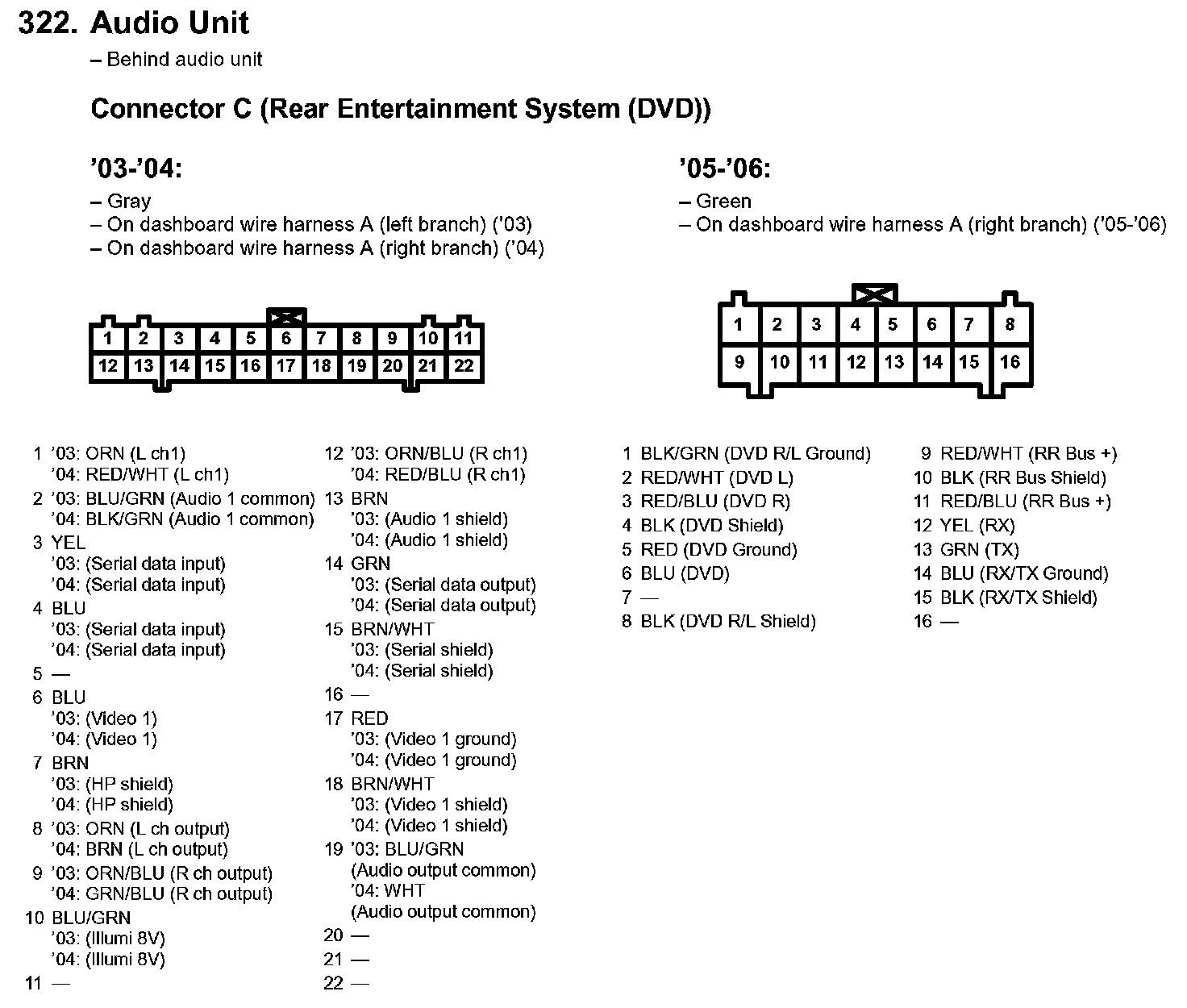

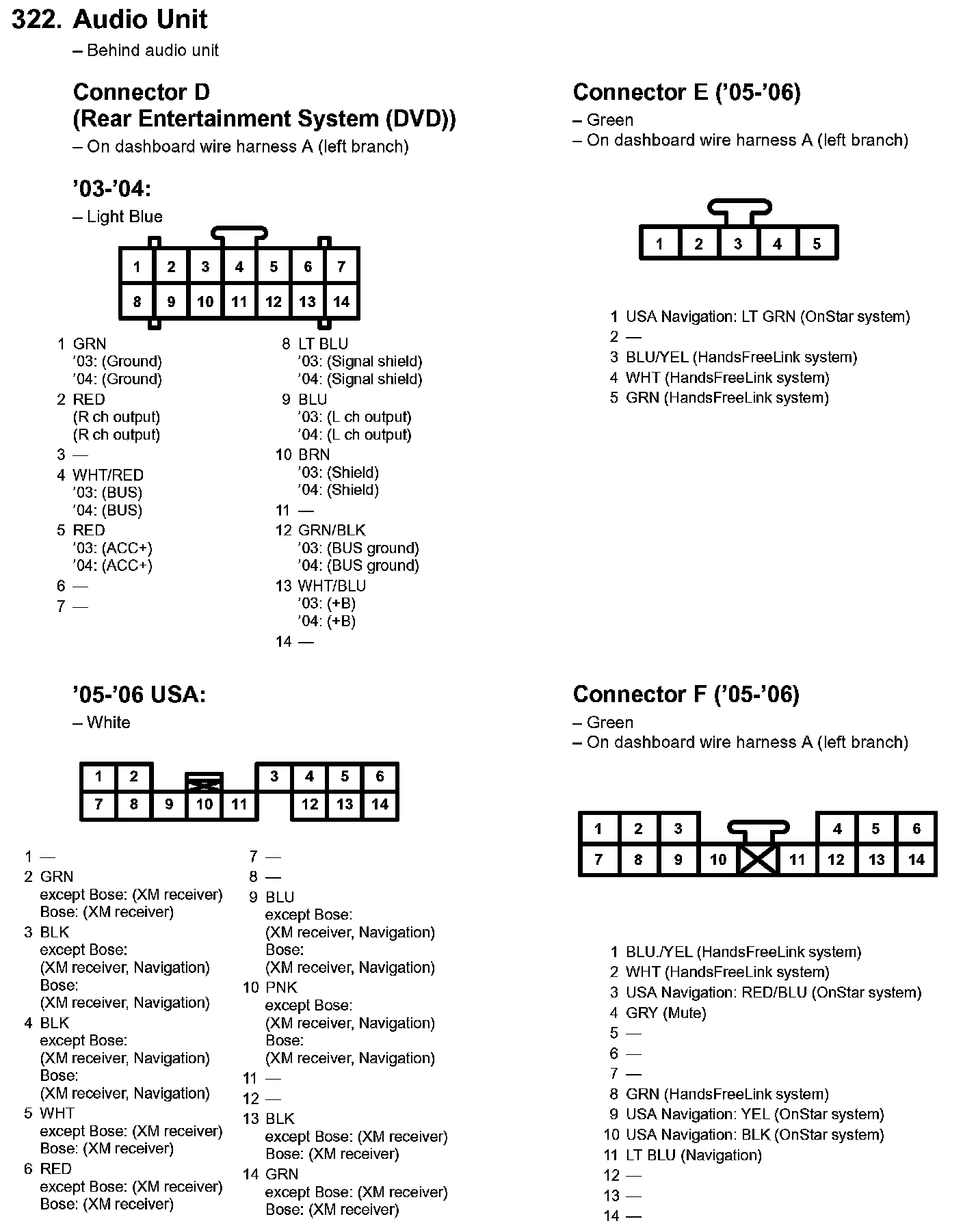

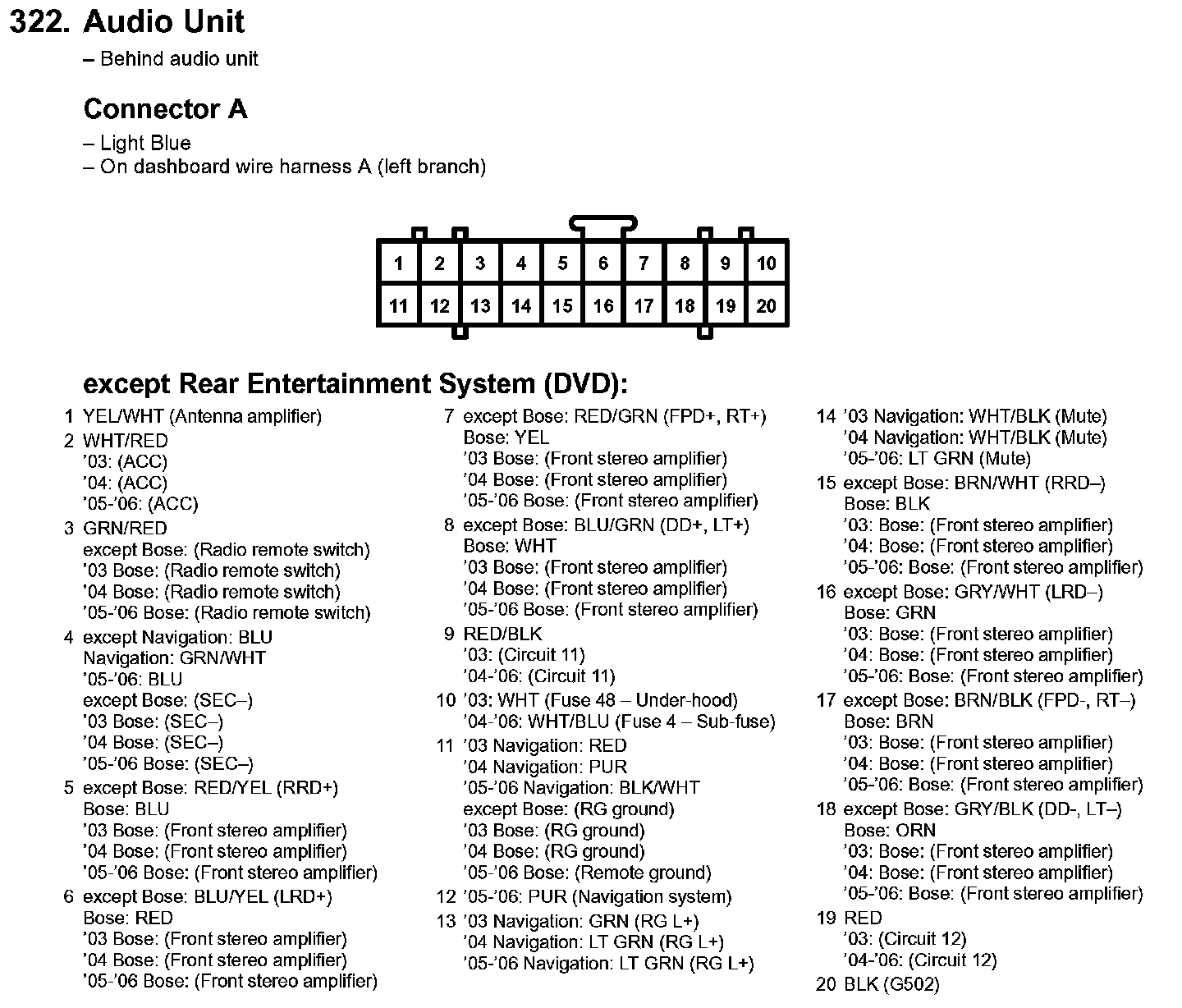

322. Audio Unit:

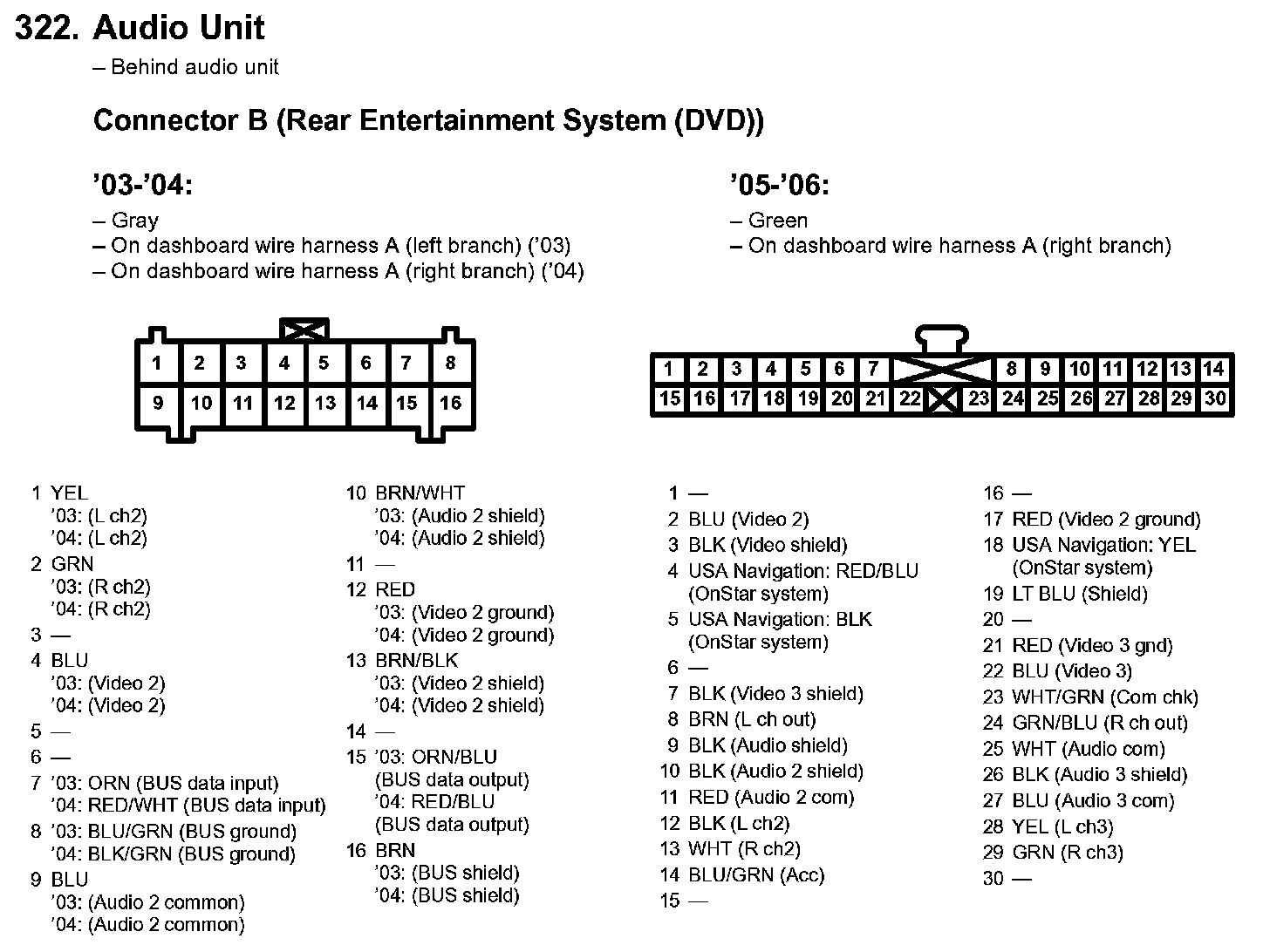

322. Audio Unit:

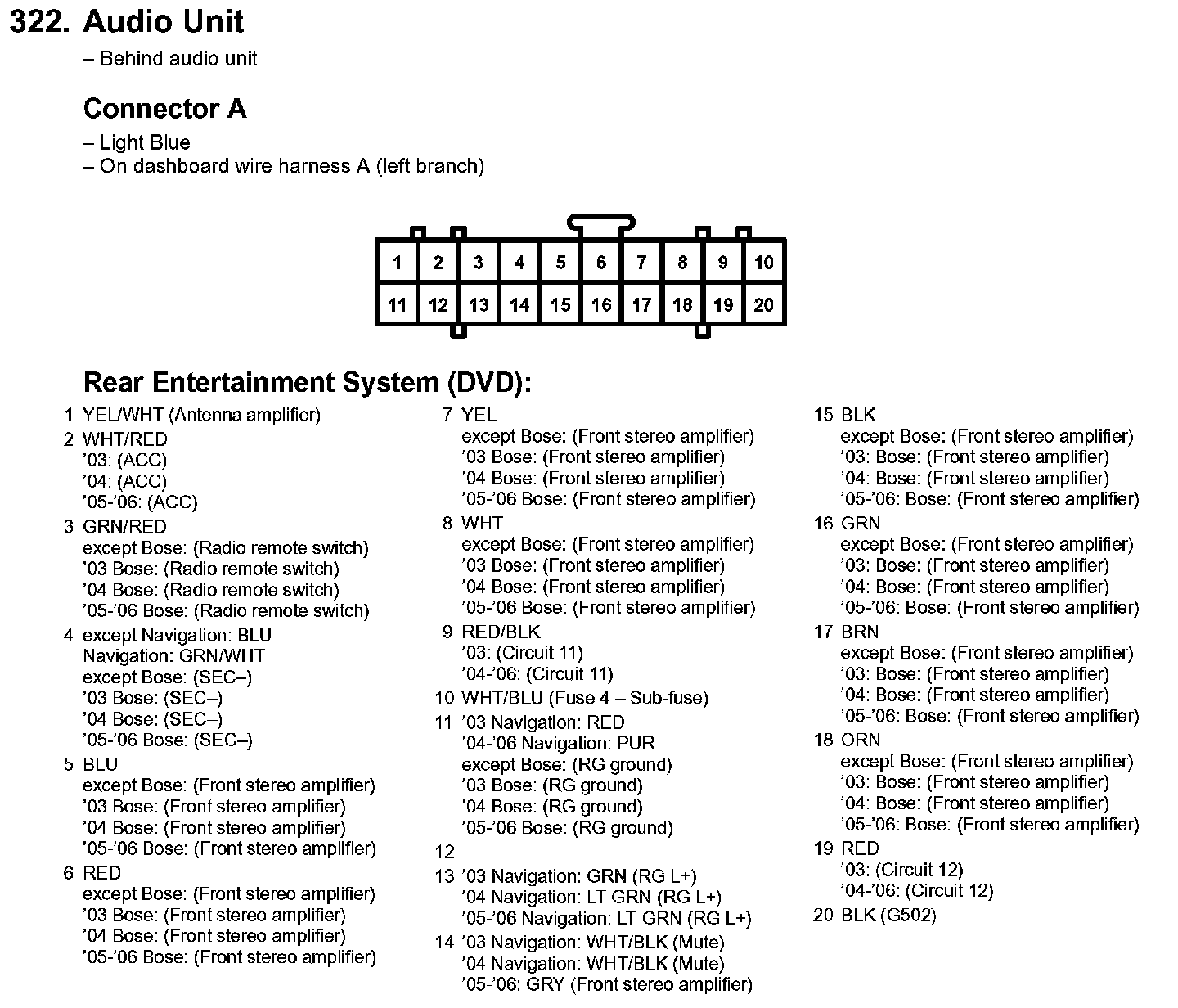

322. Audio Unit:

322. Audio Unit:

322. Audio Unit:

397. XM Receiver ('05-'06: USA):

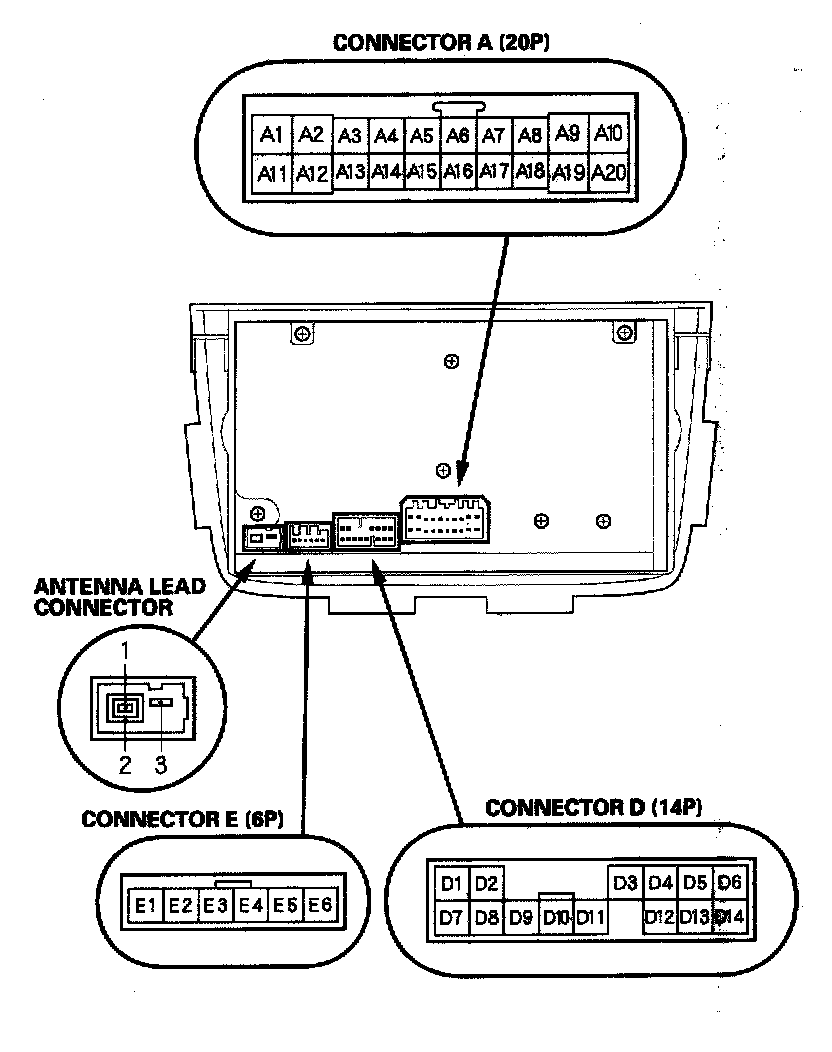

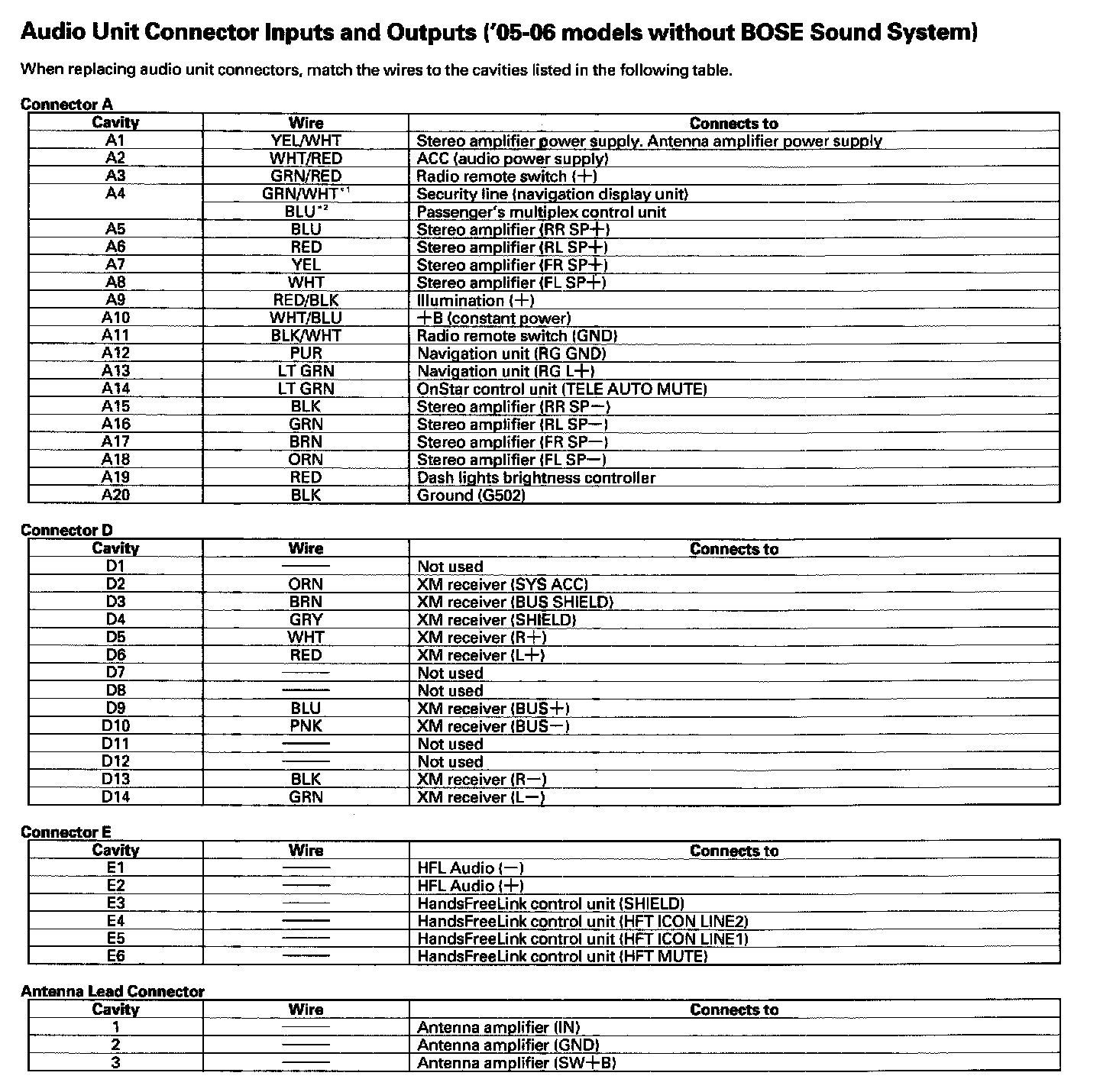

Audio Unit Connector Inputs And Outputs ('05-06 Model Without BOSE Sound System) Part 1:

Audio Unit Connector Inputs And Outputs ('05-06 Model Without BOSE Sound System) Part 2:

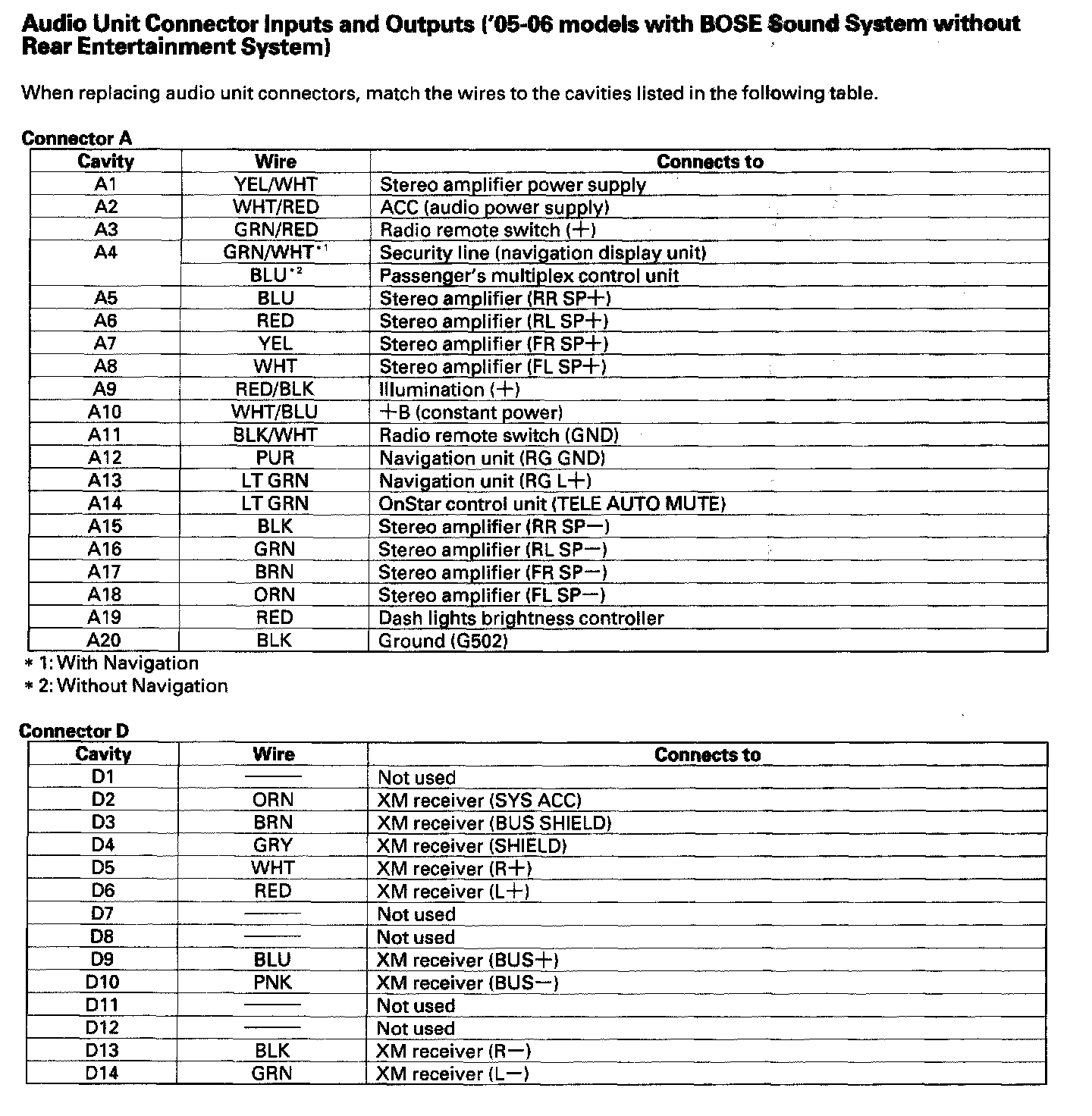

Audio Unit Connector Inputs And Outputs ('05-06 Model With BOSE Sound System Without Rear Entertainment System) Part 1:

Audio Unit Connector Inputs And Outputs ('05-06 Model With BOSE Sound System Without Rear Entertainment System) Part 2:

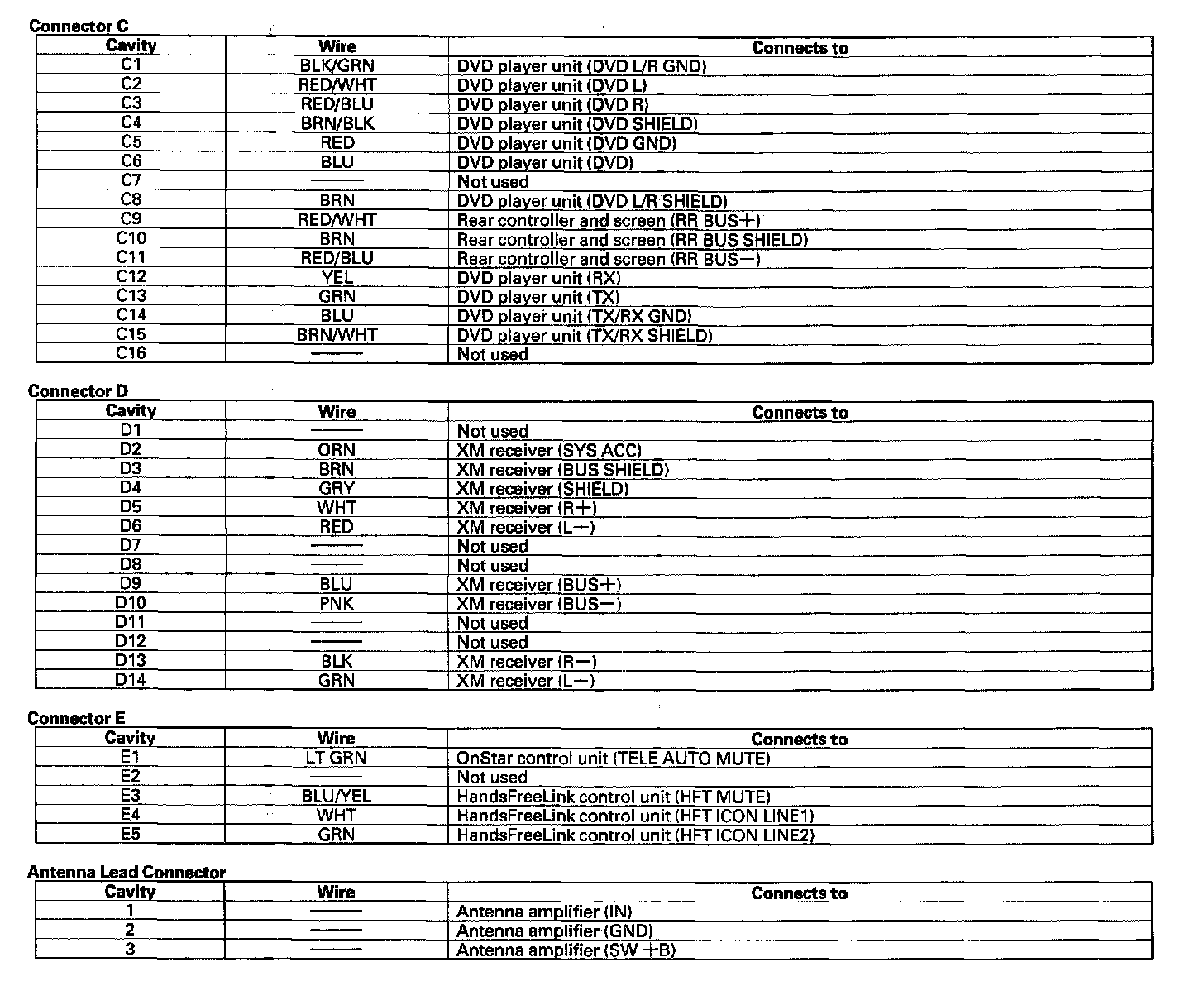

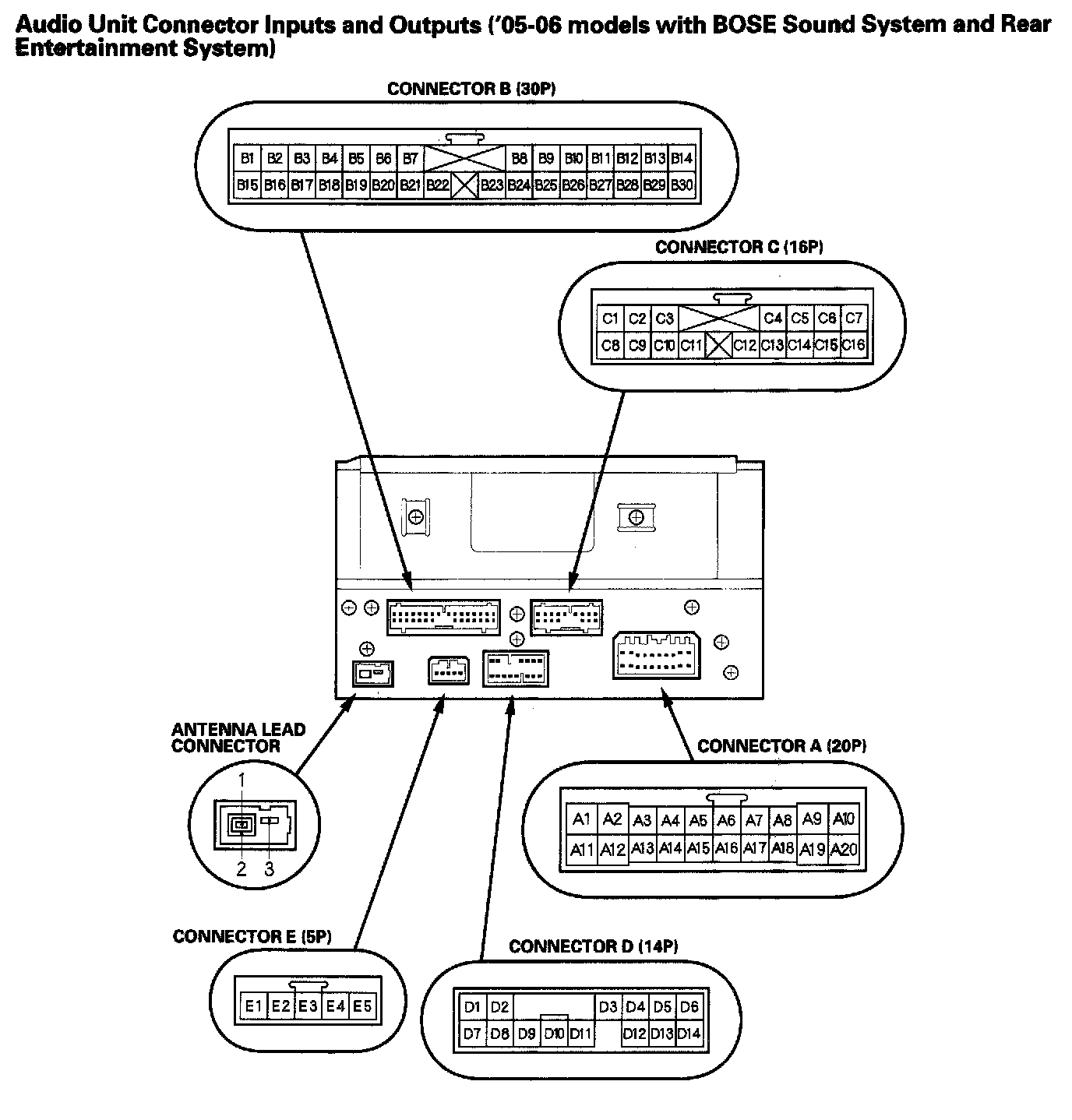

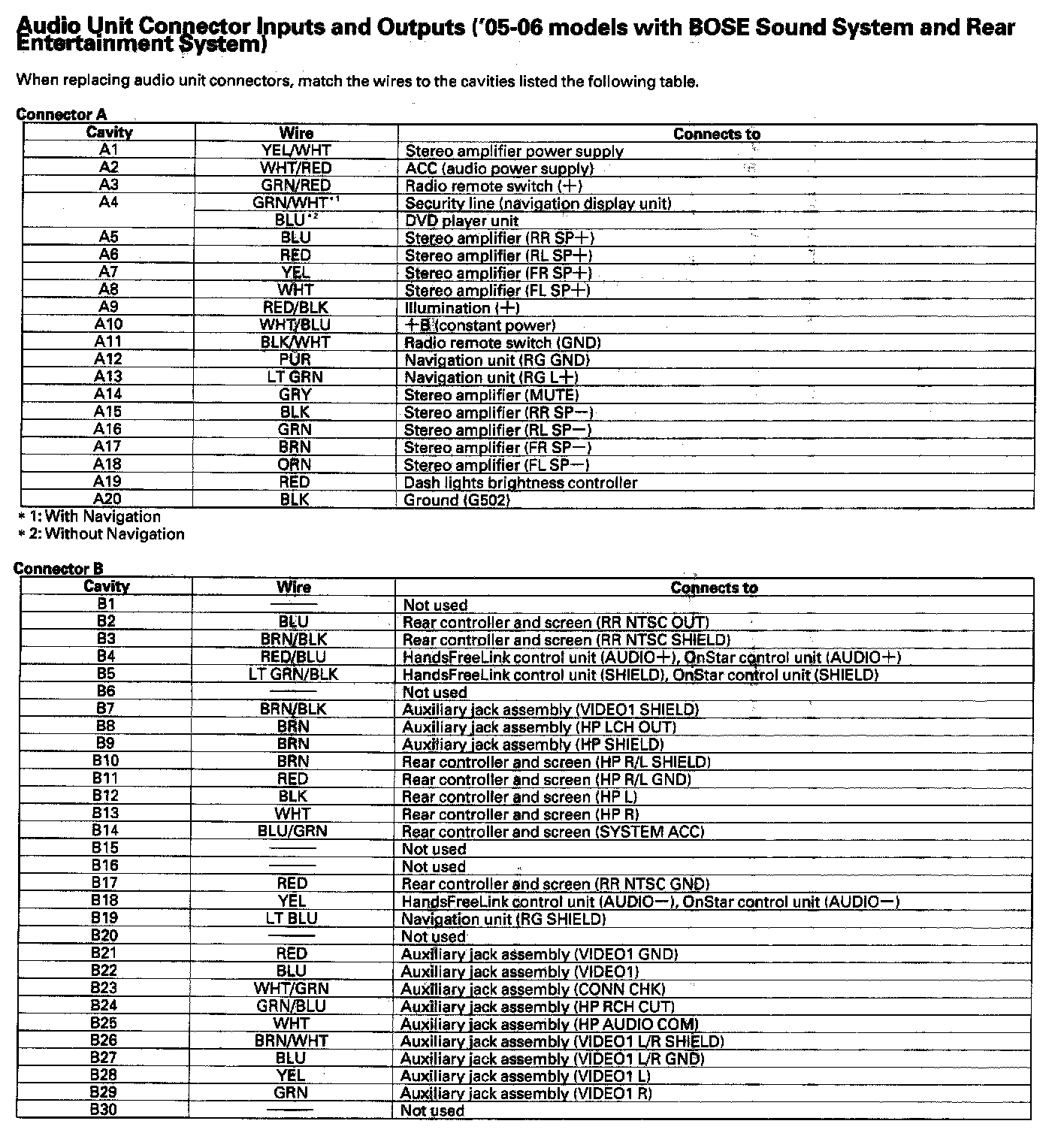

Audio Unit Connector Inputs And Outputs ('05-06 Model With BOSE Sound System With Rear Entertainment System) Part 1:

Audio Unit Connector Inputs And Outputs ('05-06 Model With BOSE Sound System With Rear Entertainment System) Part 2:

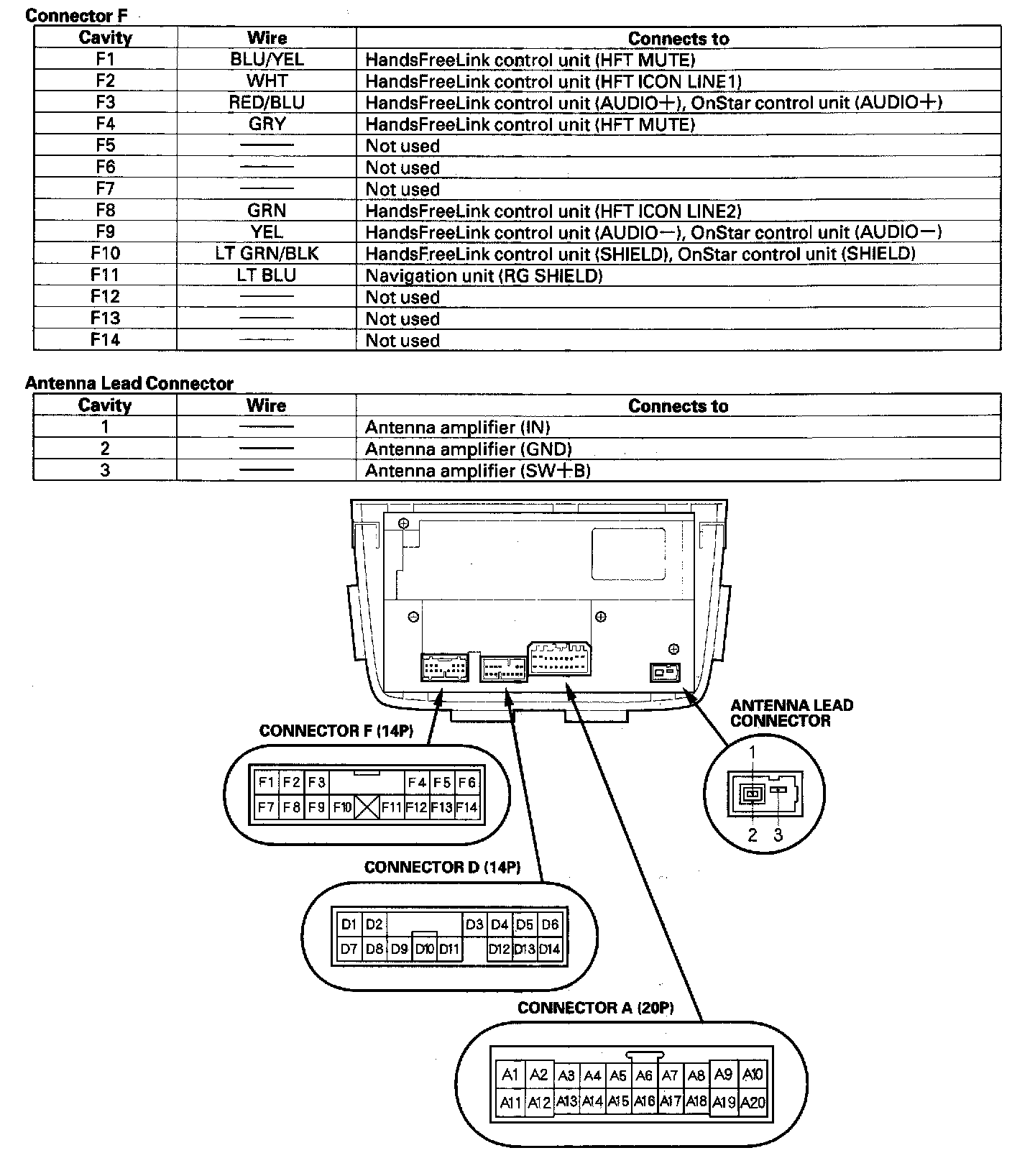

Audio Unit Connector Inputs And Outputs ('05-06 Model With BOSE Sound System With Rear Entertainment System) Part 3:

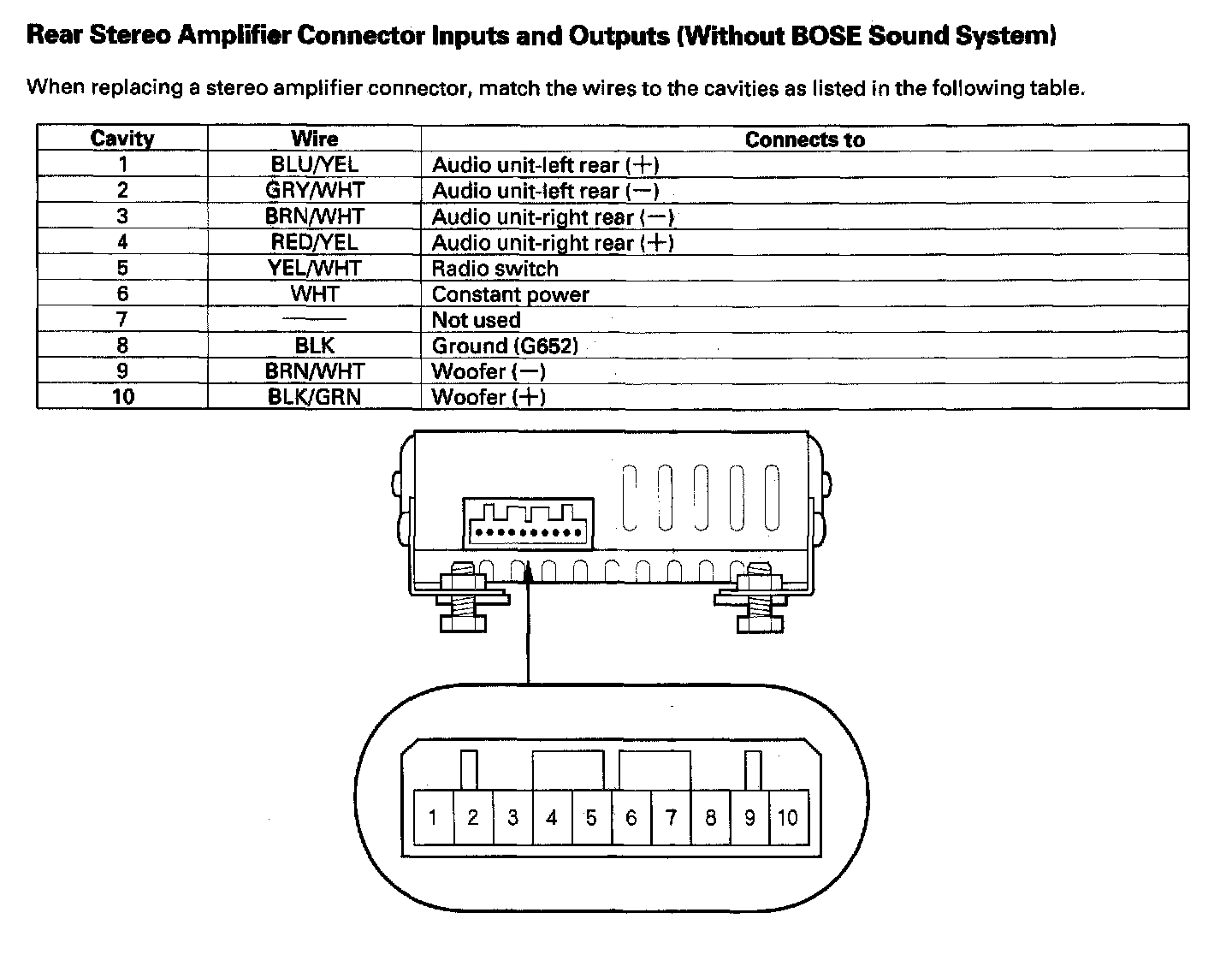

Rear Stereo Amplifier Connector Inputs And Outputs (Without BOSE Sound System):

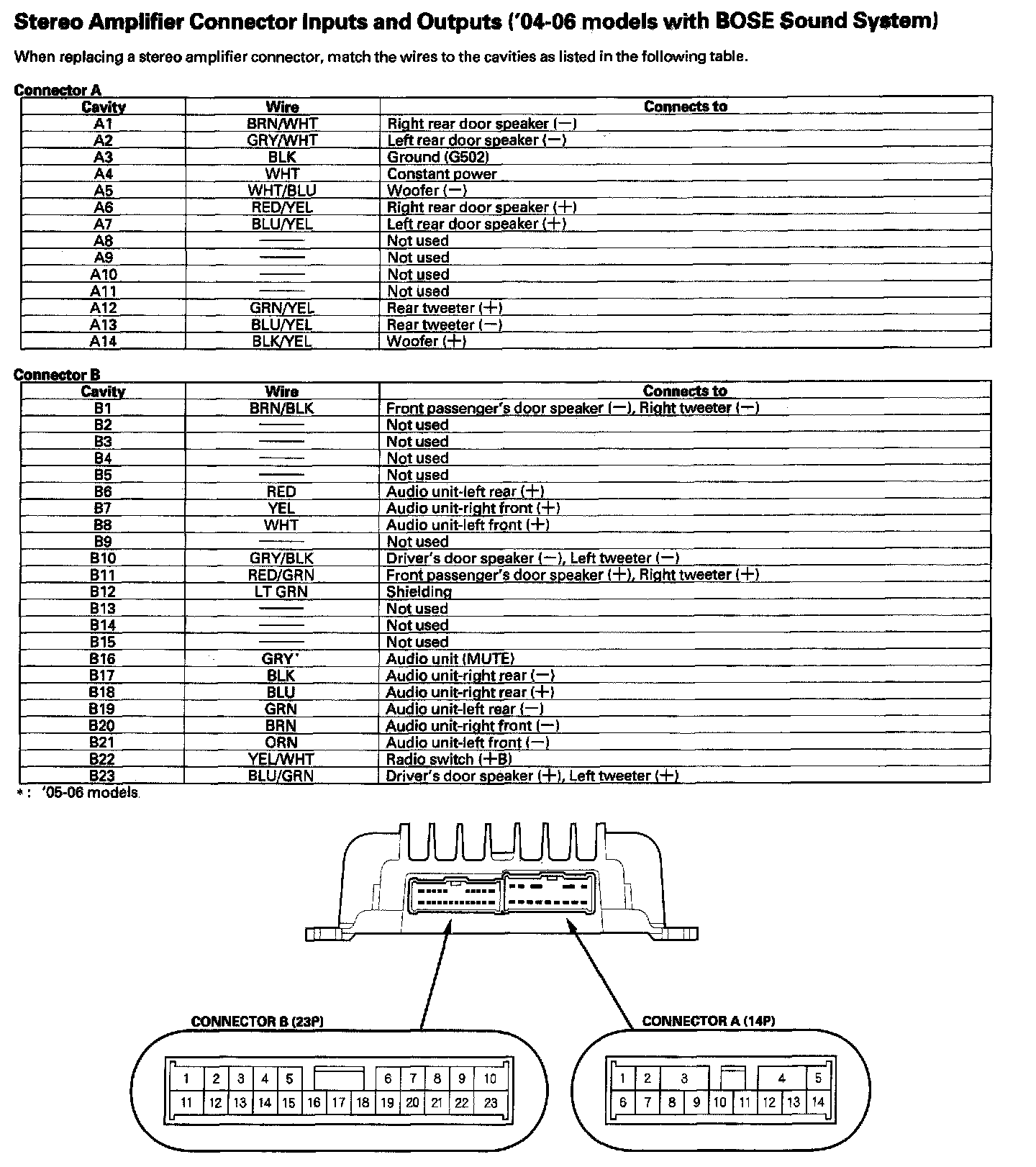

Stereo Amplifier Connector Inputs And Outputs ('04-06 Models With BOSE Sound System):

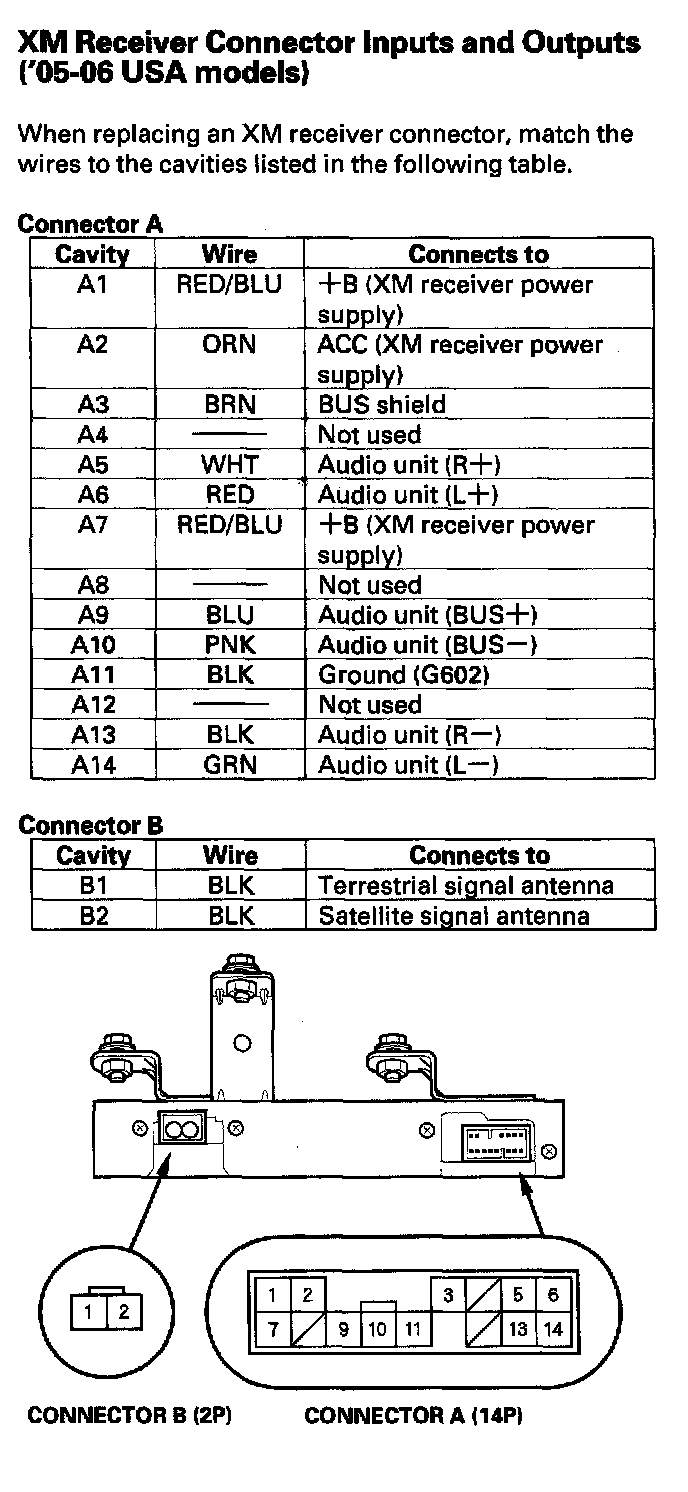

XM Receiver Connector Inputs and Outputs ('05-06 U.S.A. Models):
