Driver/Vehicle Information Display
Driver/Vehicle Information Display
327. Multi-information Display Unit (except Navigation):

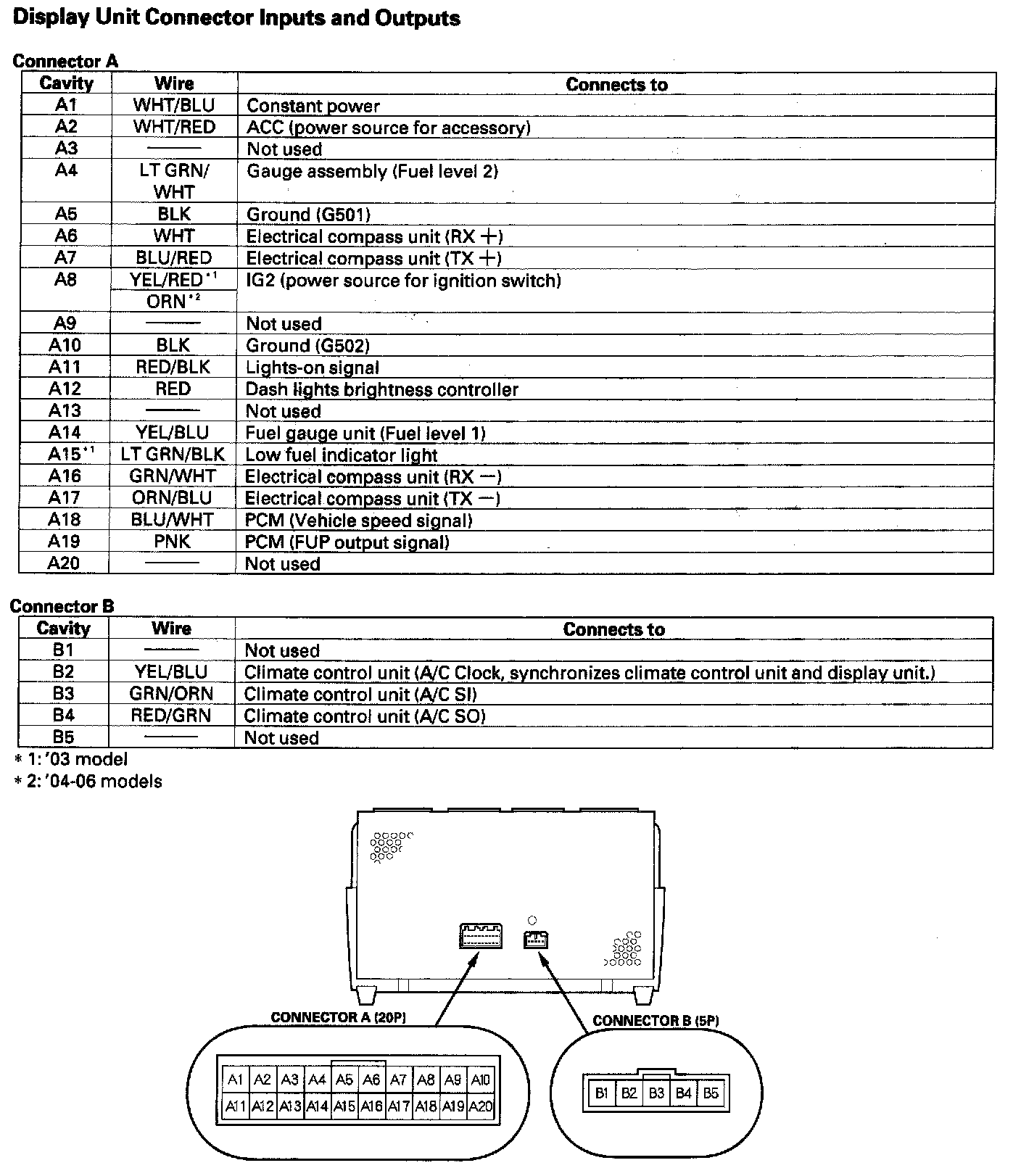

Display Unit Connector Inputs And Outputs:

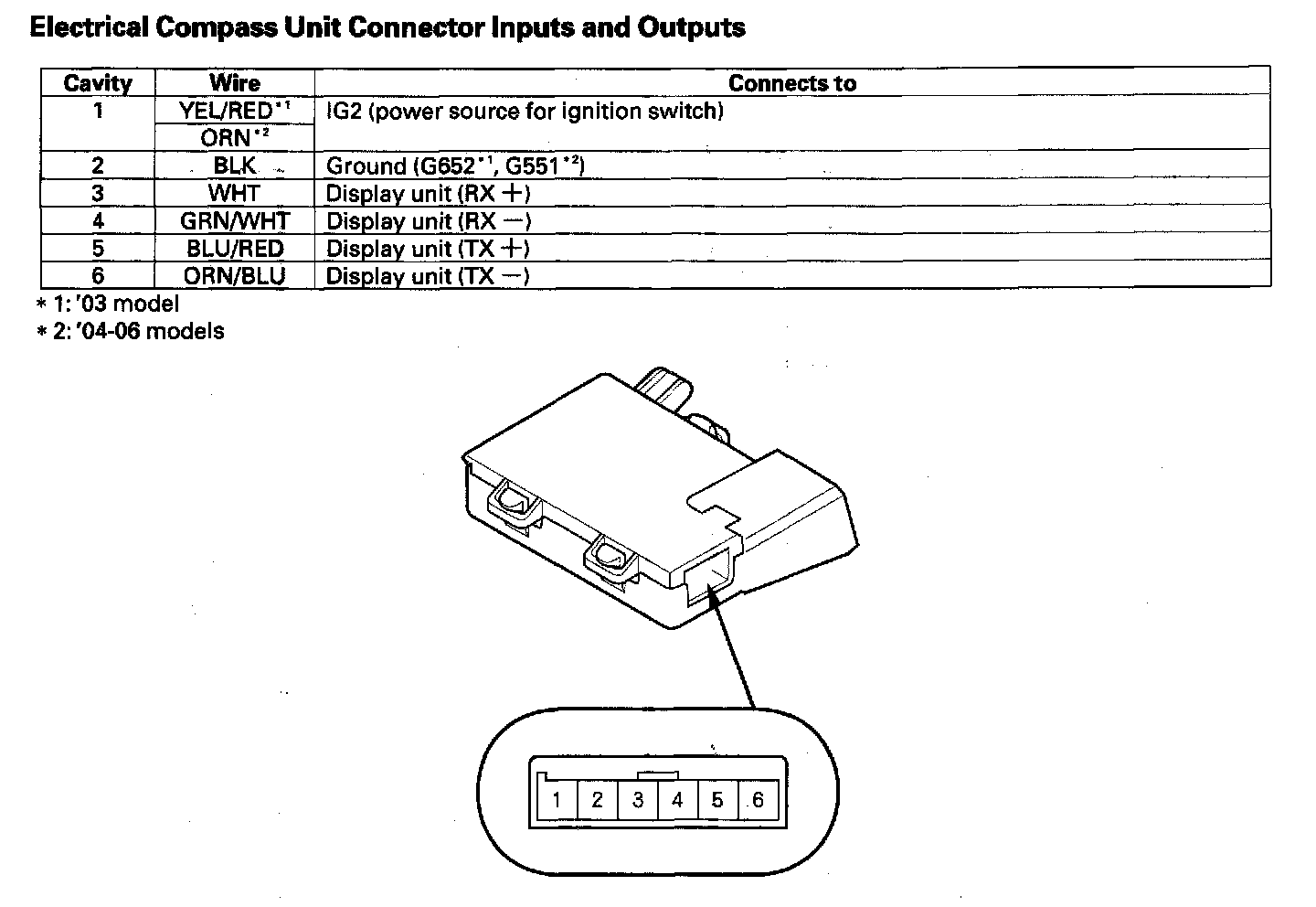

Electrical Compass Unit Connector Inputs And Outputs:
