System Diagram

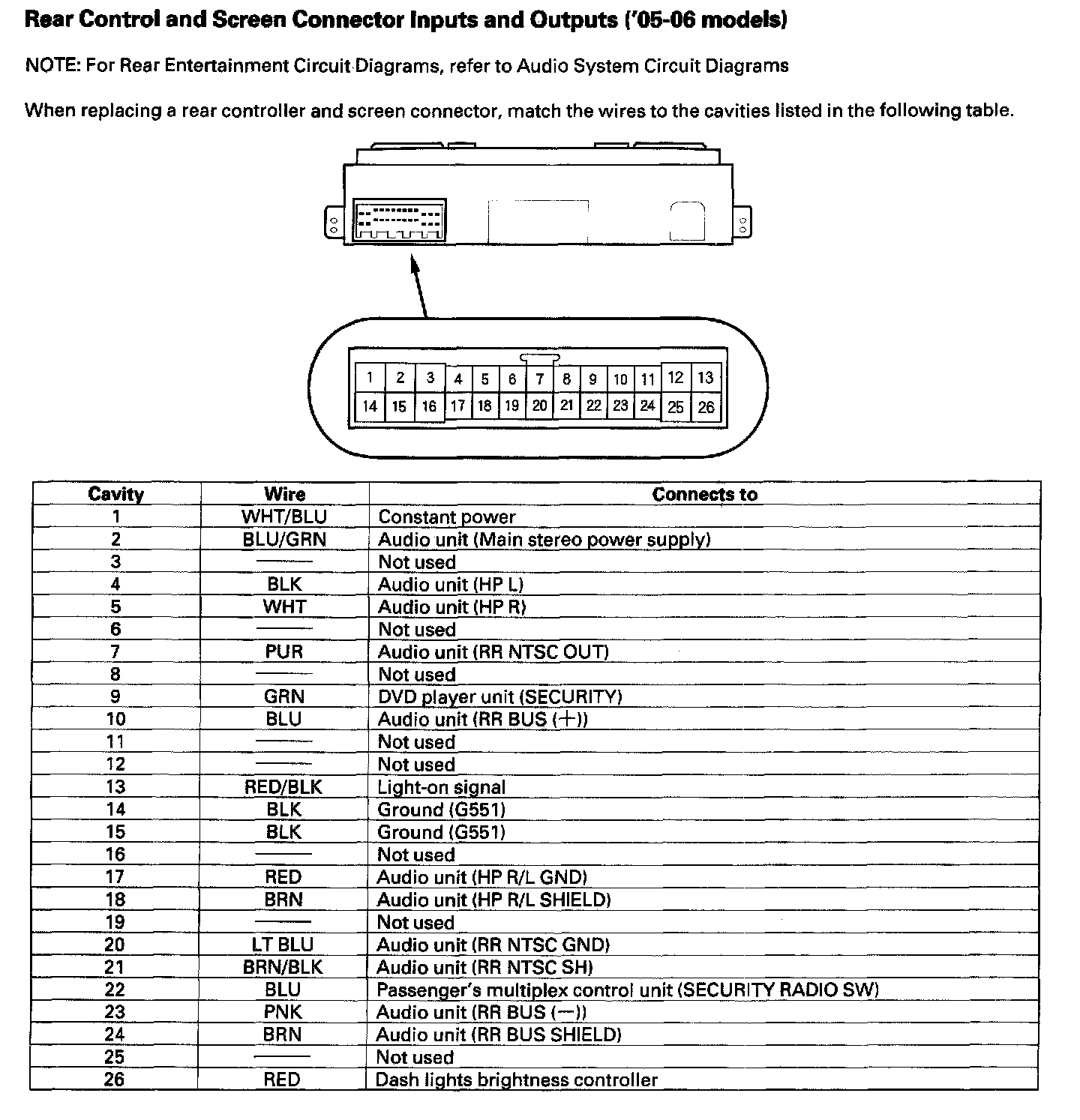

Rear Control And Screen Connector Inputs And Outputs:

Rear Control and Screen Connector Inputs And Outputs ('05-06 Models)

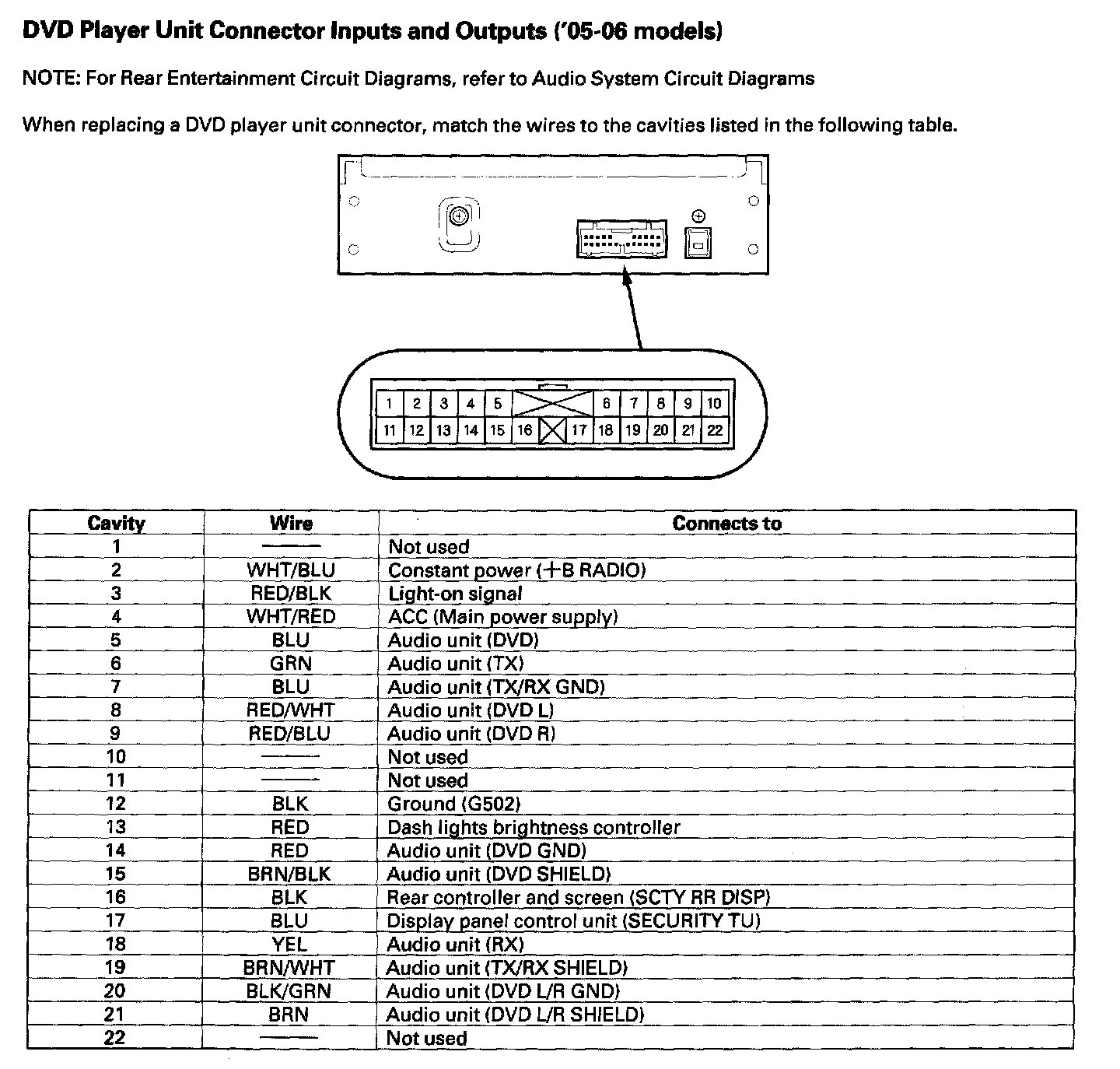

DVD Player Unit Connector Inputs And Outputs:

DVD Player Unit Connector Inputs And Outputs ('05-06 Models)

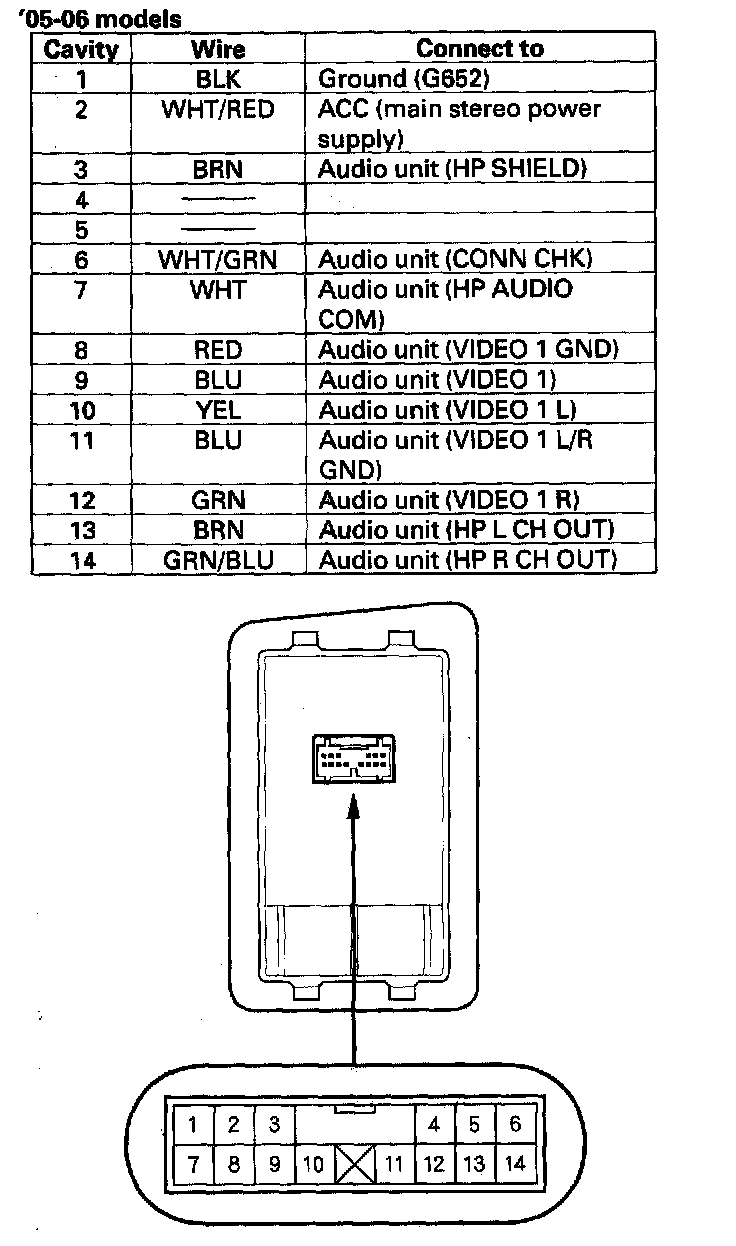

Auxiliary Jack Assembly Connector Inputs And Outputs:

Auxiliary Jack Assembly Connector Inputs and Outputs

NOTE: For Rear Entertainment Circuit Diagram, refer to Audio System Circuits Diagrams:
'03-04 models
'05-06 models

When replacing an auxiliary jack assembly connector. match the wires to the cavities listed in the given table.
