Home >> Acura >> 2006 >> MDX V6-3.5L >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Cylinder Block Assembly >> System Diagram

System Diagram

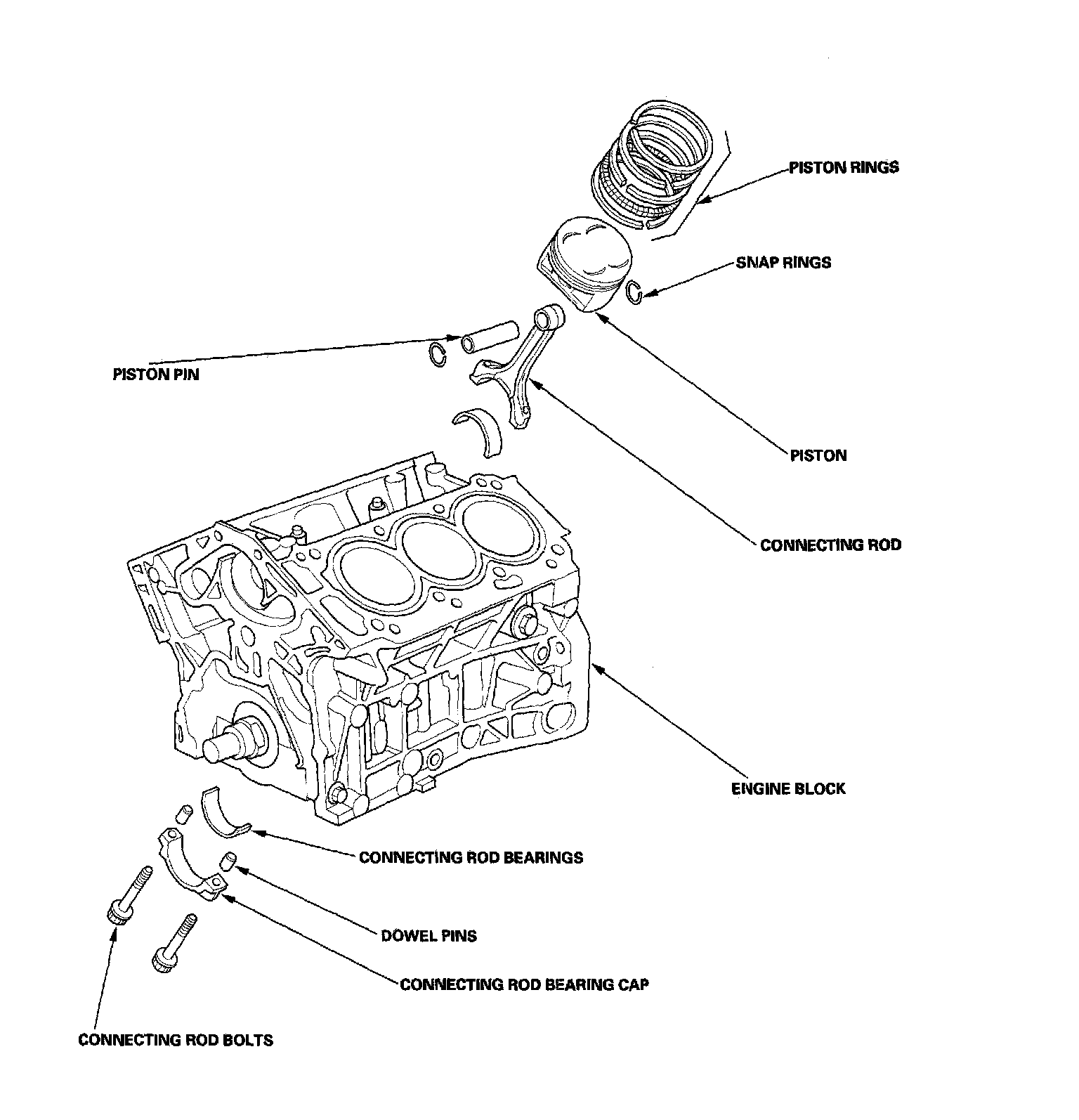

Engine Block Component Location Index:

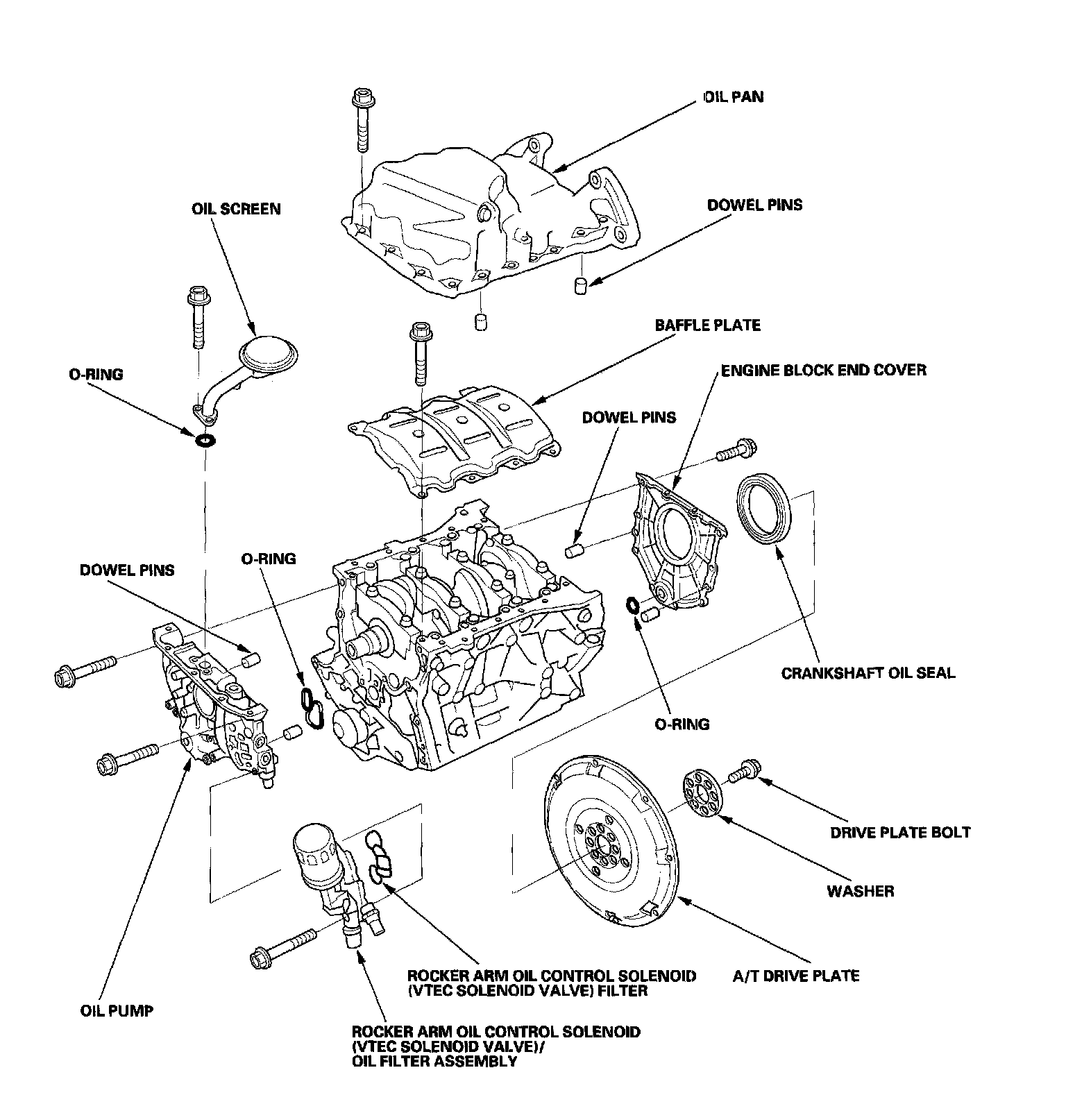

Engine Block Component Location Index:

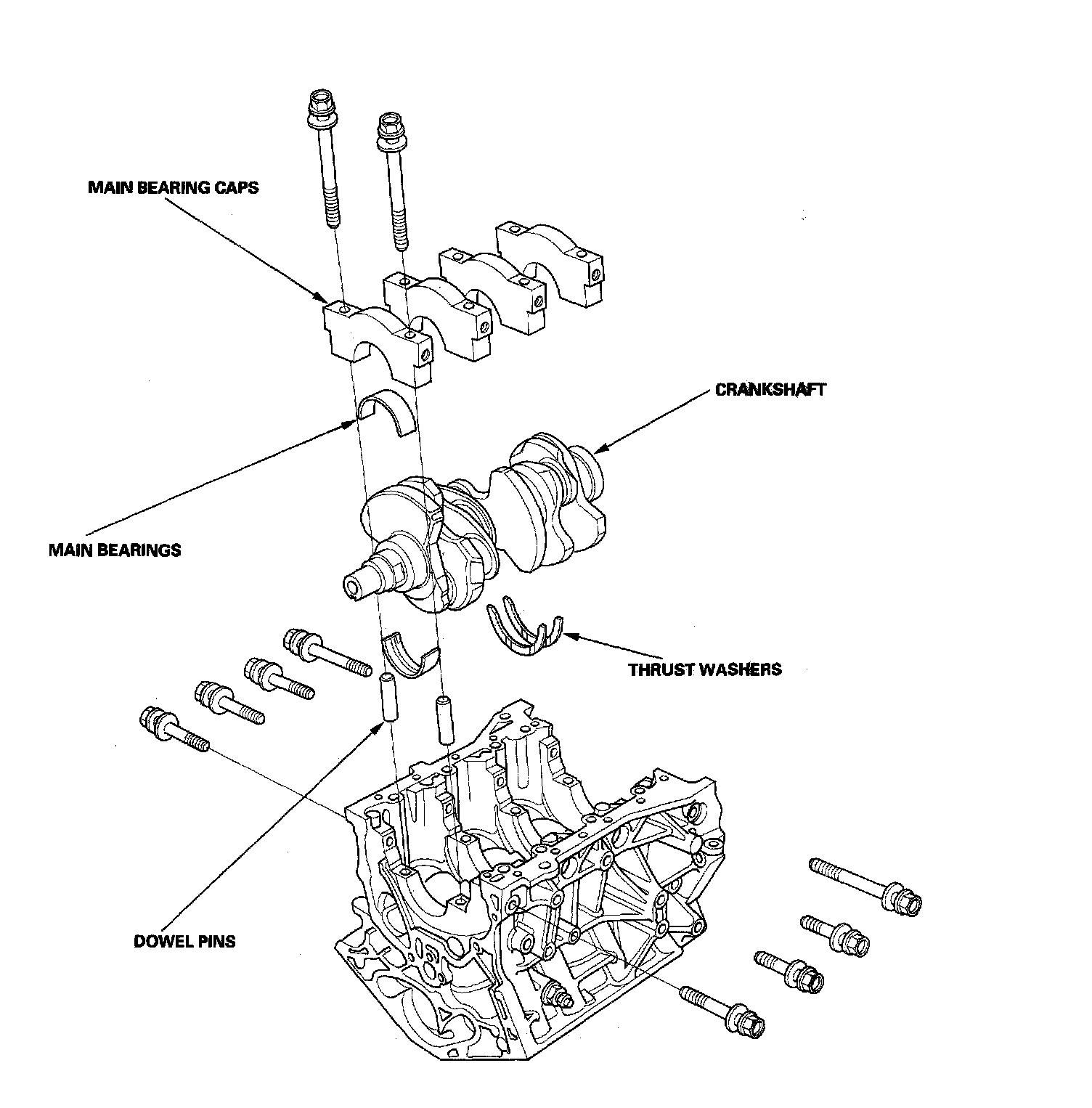

Engine Block Component Location Index:
