Rear Individual MAP Light Test

Rear Individual Map Light Test

1. Turn the light switch OFF.

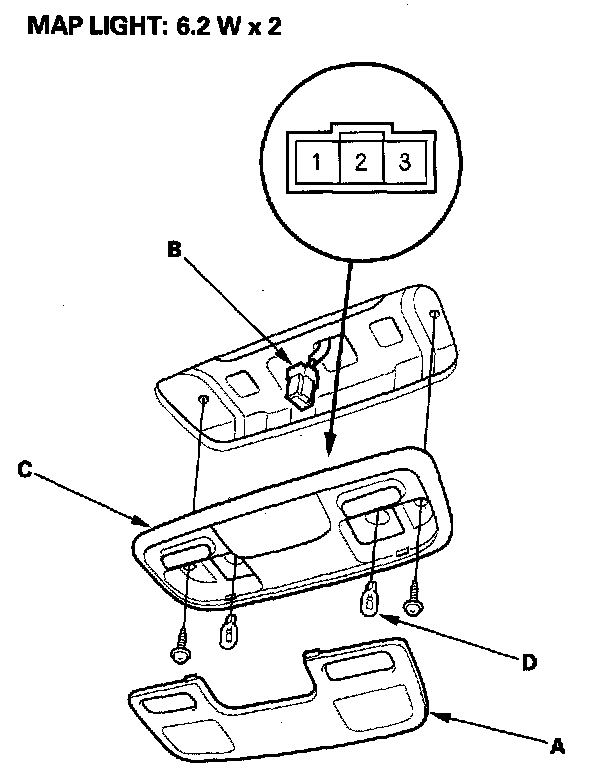

2. Carefully pry off the lens (A) with a small screwdriver.
3. Remove the two mounting screws.
4. Disconnect the 3P connector (B) from the housing (C).
5. Check for continuity between the terminals.
- There should be continuity between the No. 1 and No. 3 terminals with the left switch ON.
- There should be continuity between the No. 1 and No. 2 terminals with the right switch ON.
6. If the continuity is not as specified, check the bulb(s) (D). If the bulbs are OK, replace the light.
