Driver's Seat Wire Harness (DPMS)
Driver's Seat Wire Harness (DPMS)

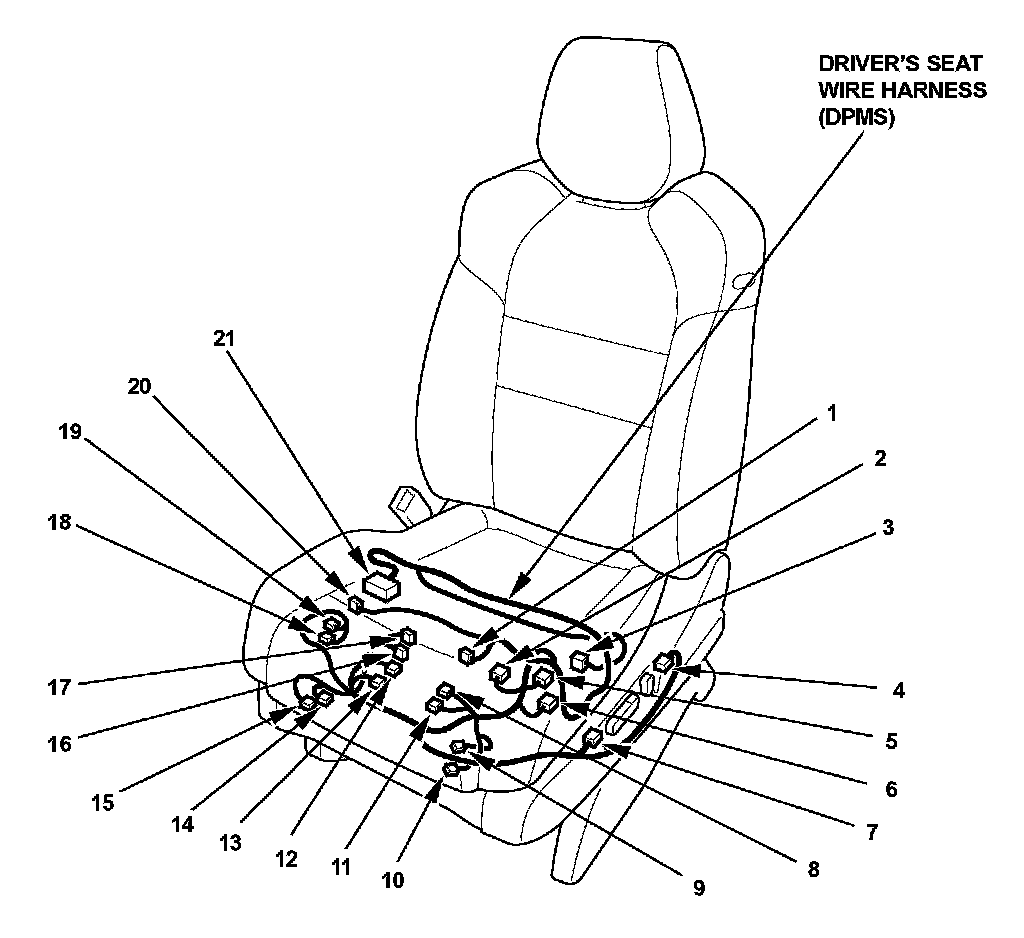

Harness Location View:

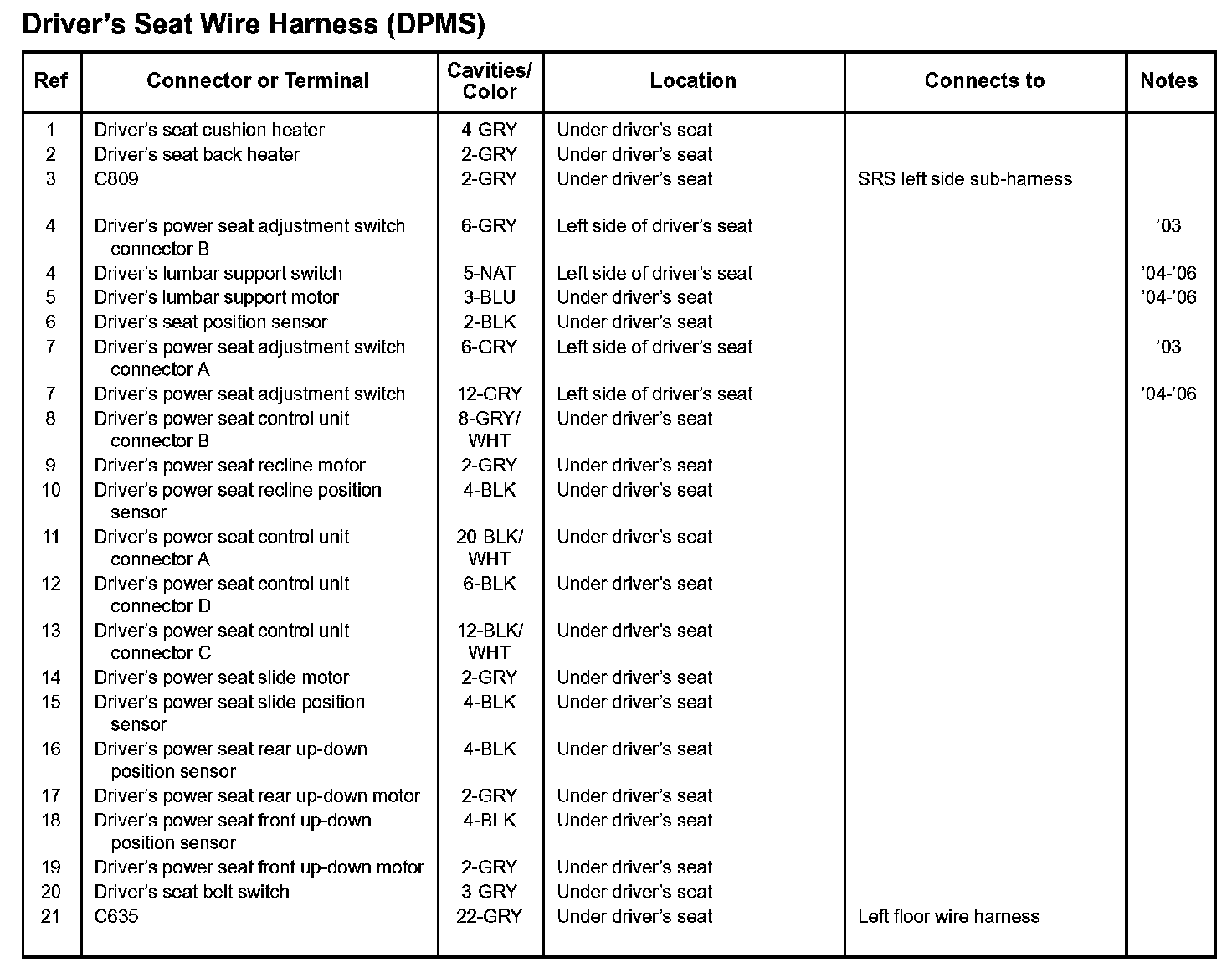

Driver's Seat Wire Harness (DPMS):
