Locations
>>
Harness Locations
>>
Knock Sensor Subharness
Knock Sensor Subharness

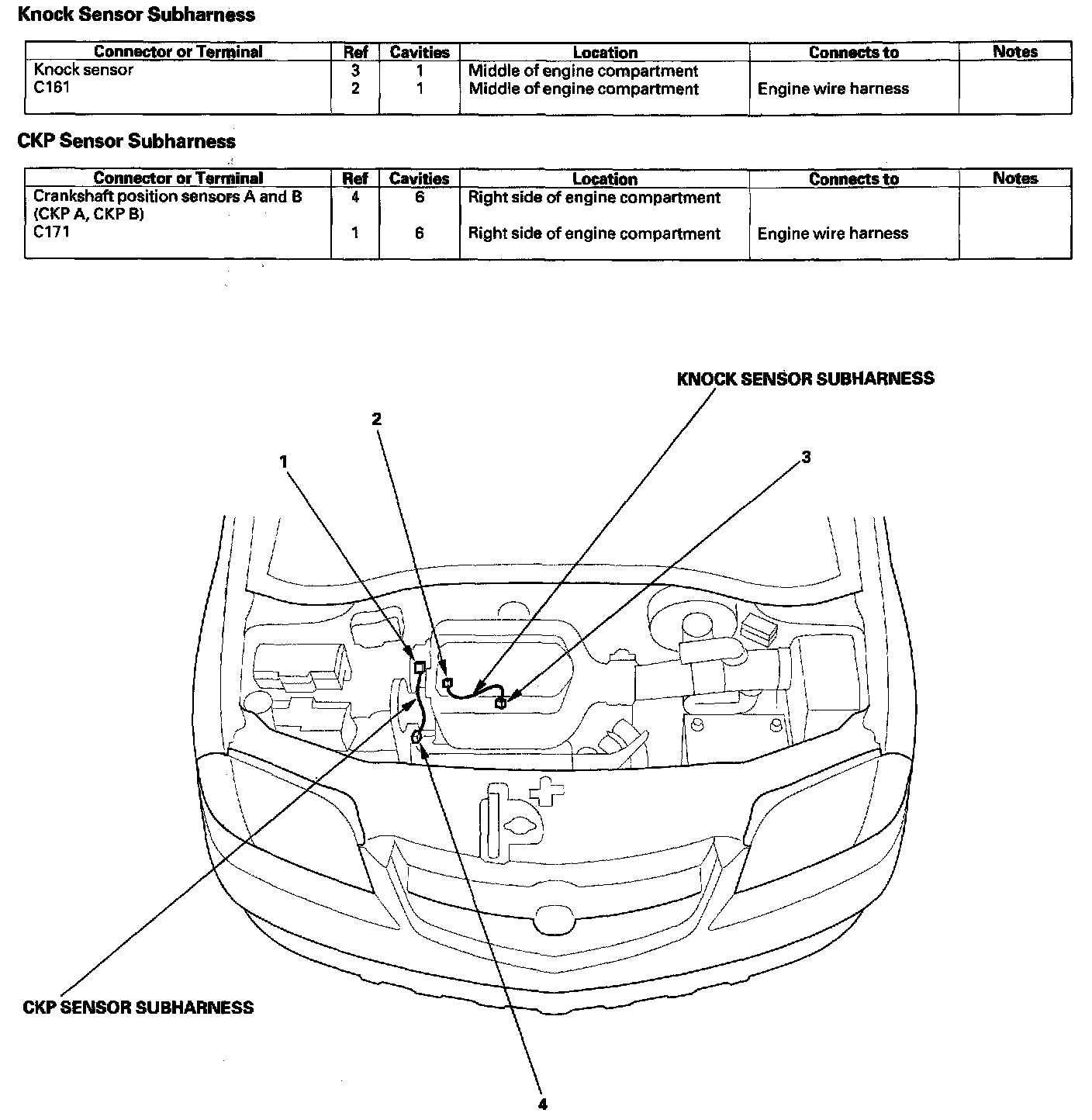

Knock Sensor Subharness/CKP Sensor Subharness:

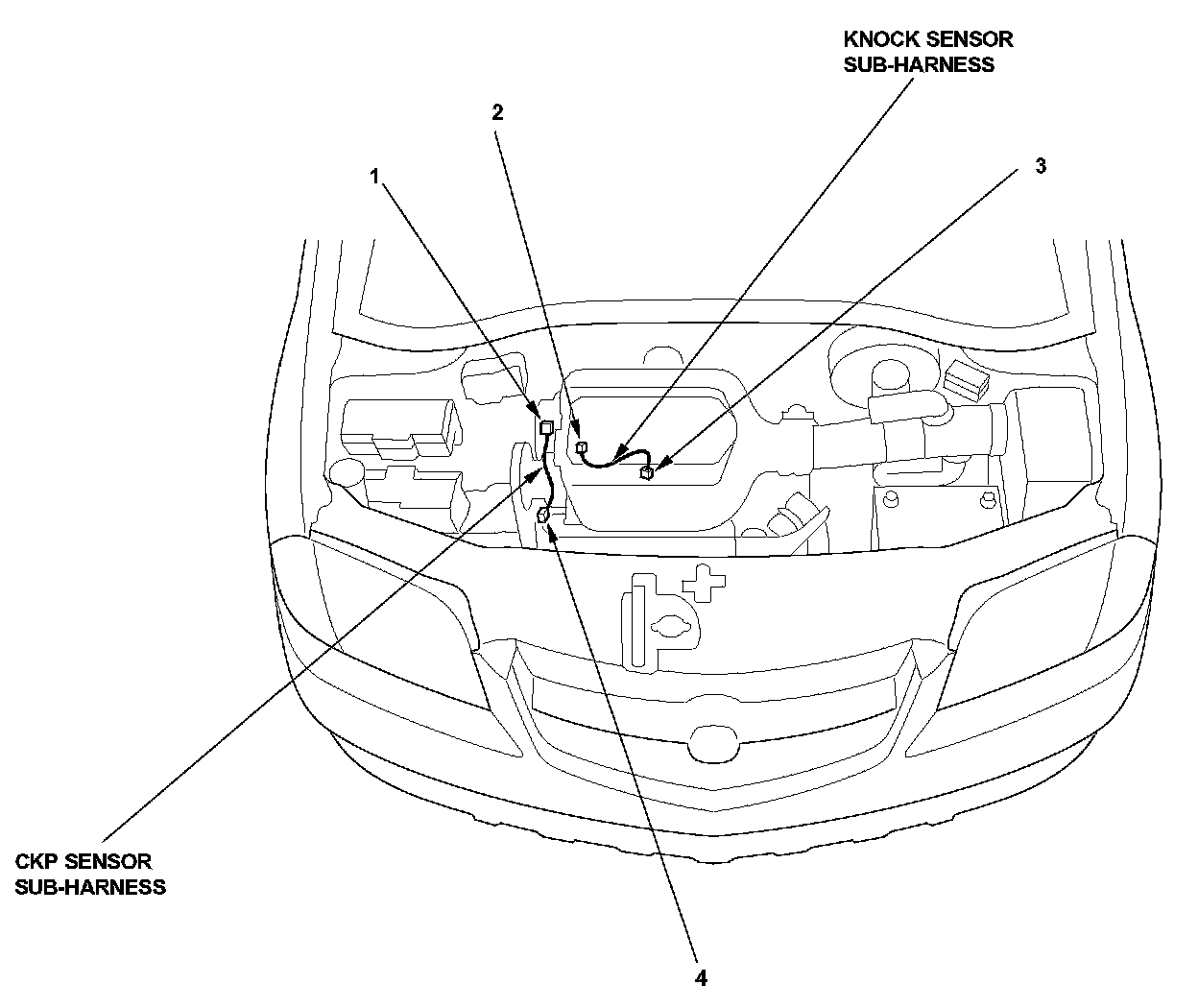

Harness Location View:

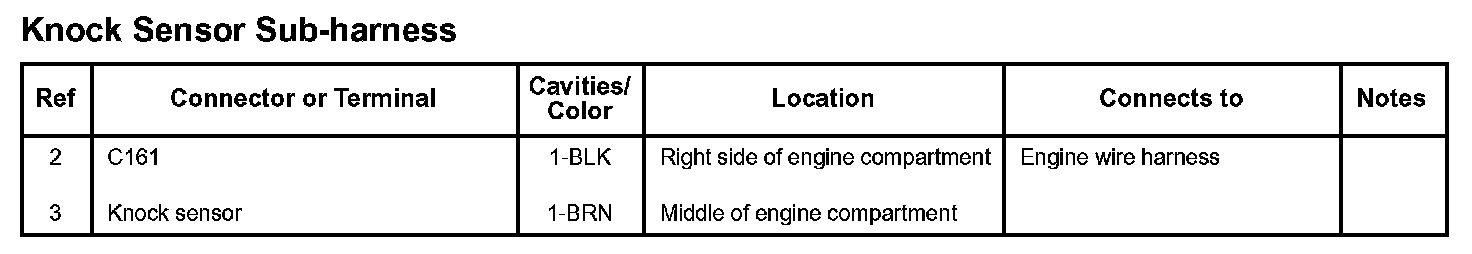

Knock Sensor Sub-Harness:
