Component Locations

111. Driver's Door:

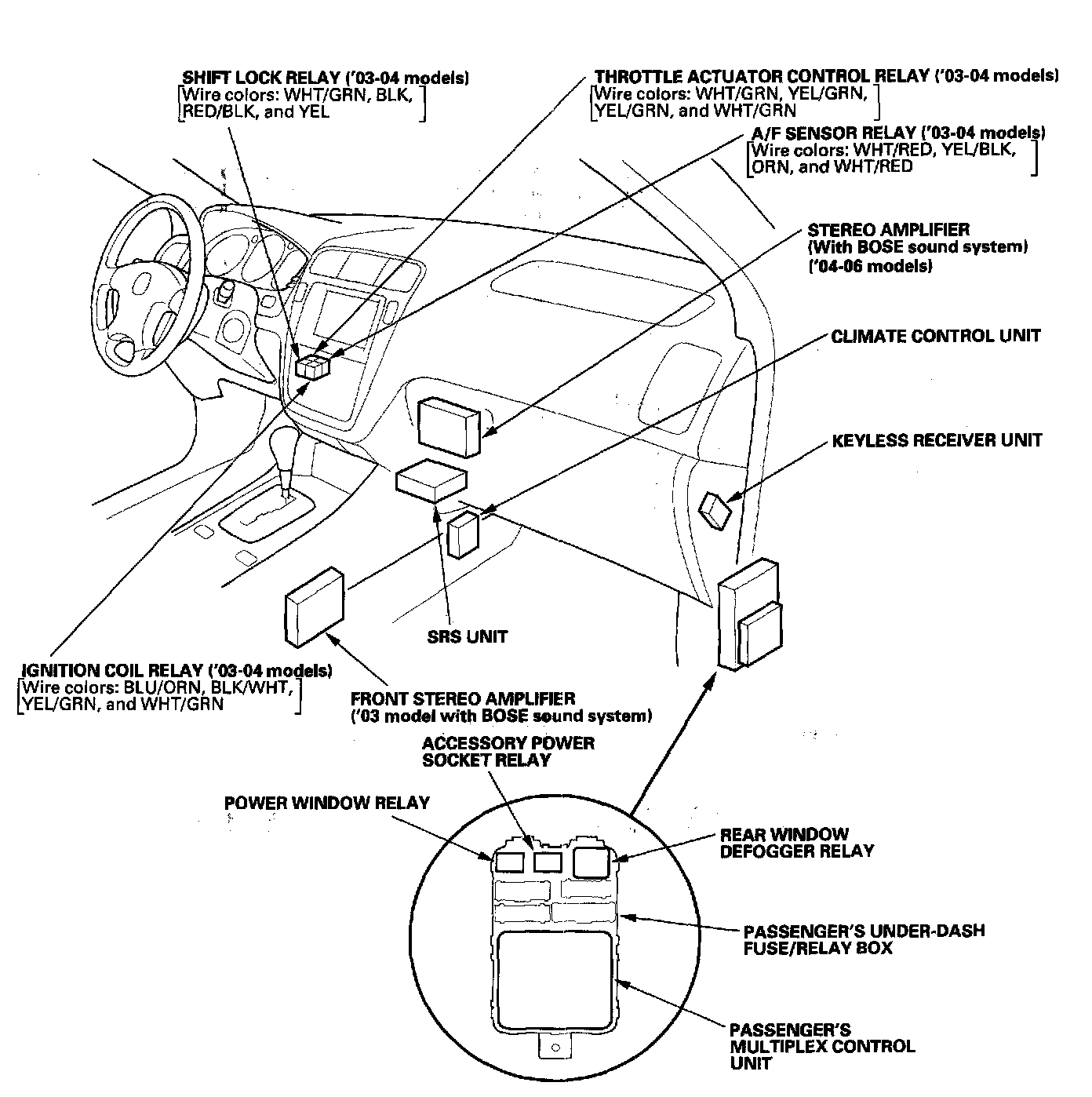

Relay And Control Unit Locations - Dashboard Part 1:

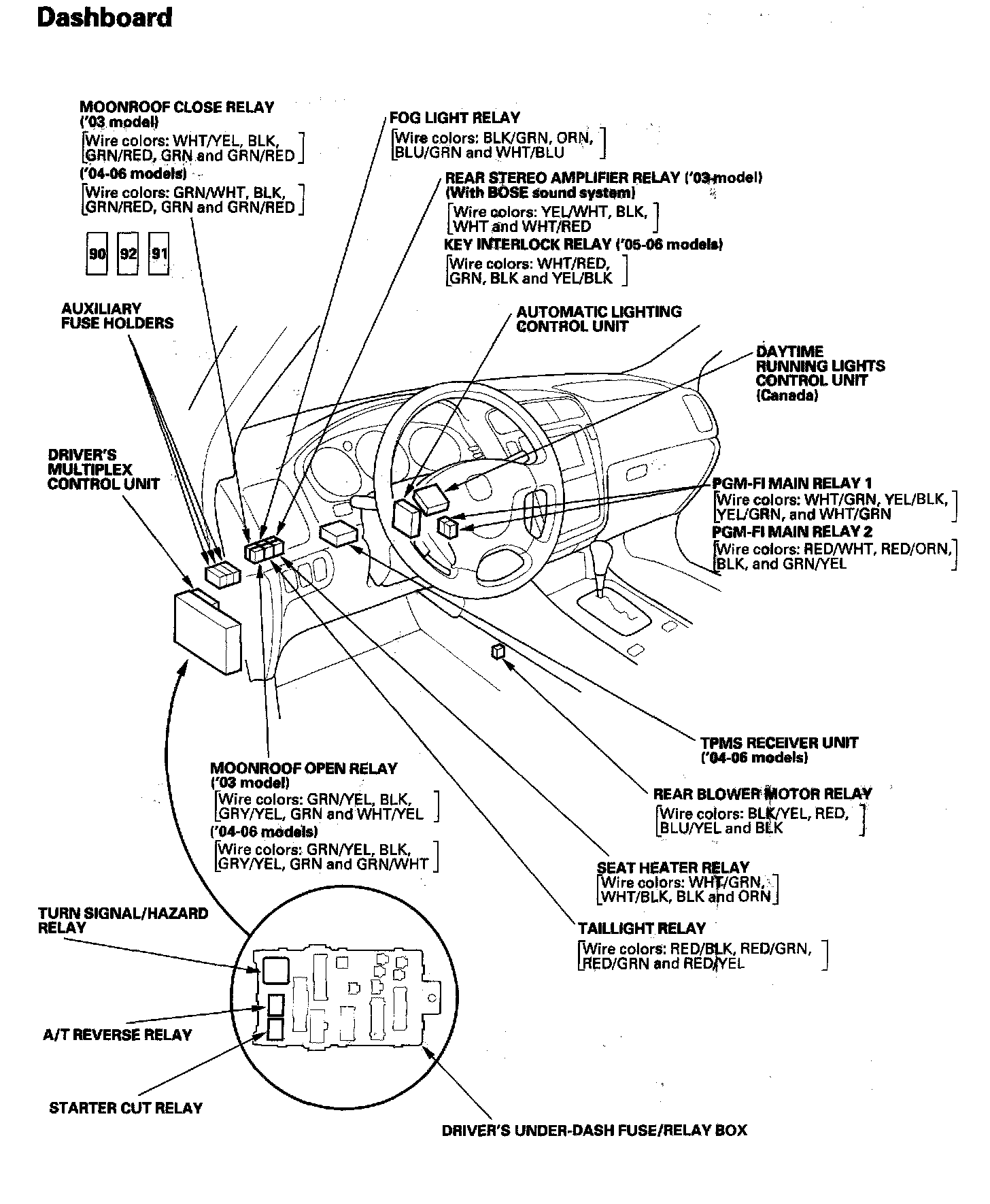

Relay And Control Unit Locations - Dashboard Part 2:

Relay And Control Unit Locations - Door, Rear Side Trim And Roof:

Multiplex Control System - Component Location Index:
