EGR Valve: Service and Repair

EGR Valve Replacement

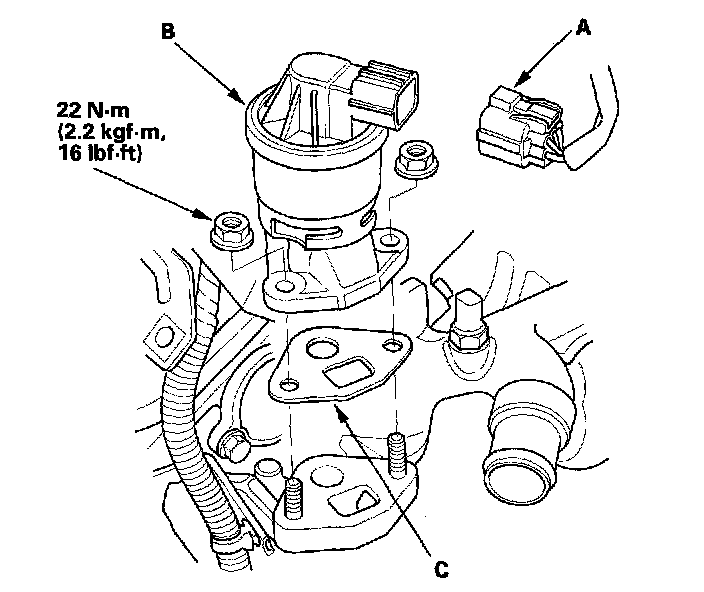

1. Remove the intake manifold cover and the ignition coil cover.

2. Disconnect the EGR valve 6P connector (A).
3. Remove the EGR valve (B).
4. Install the valve in the reverse order of removal with a new gasket (C).
5. Install the ignition coil cover and the intake manifold cover.
