Torque Specifications

Drive Plate:

Install the drive plate and washer on the engine crankshaft, and tighten the eight bolts in a crisscross pattern.

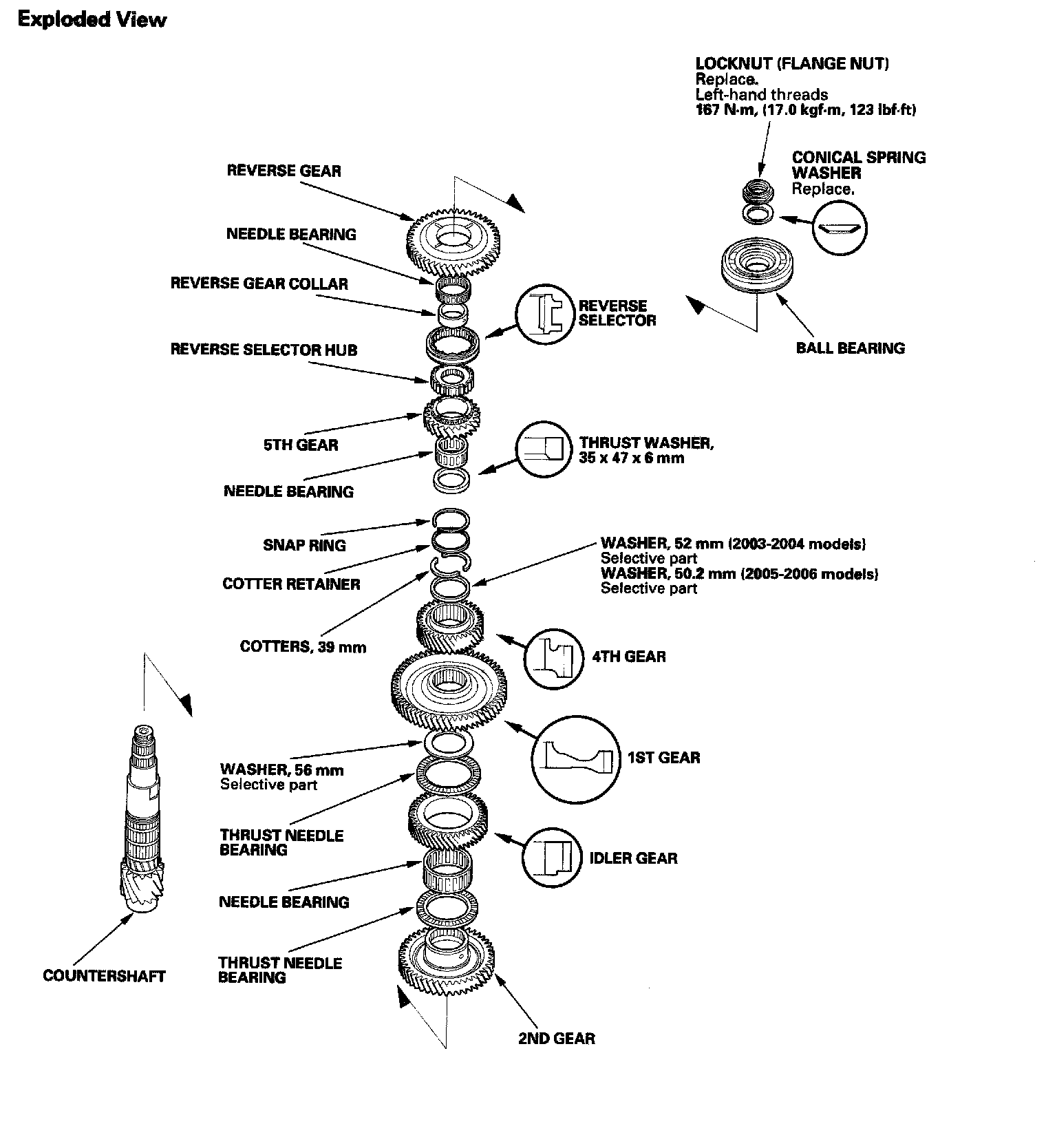

Countershaft:

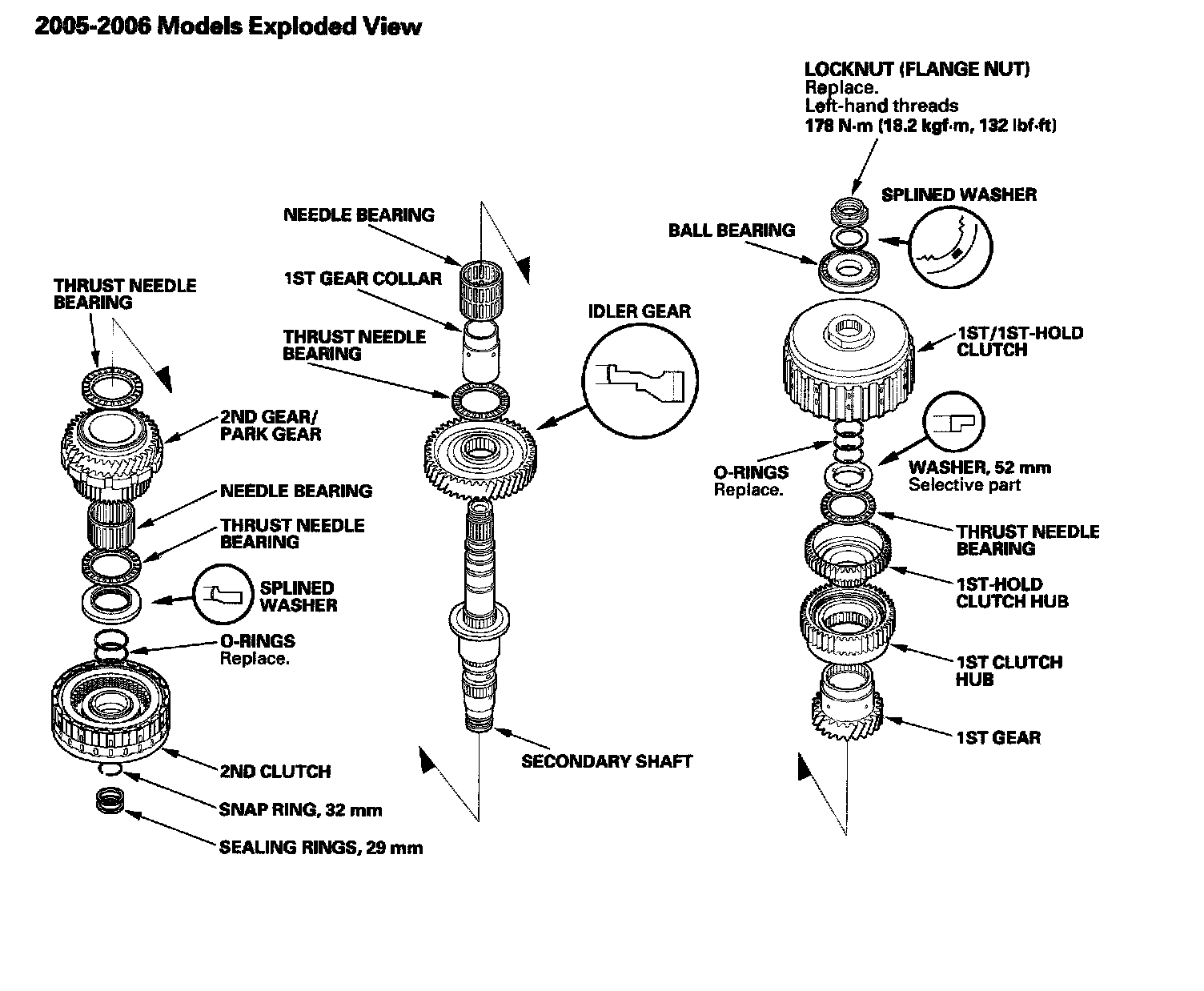

Secondary Shaft 2005-2006 Models:

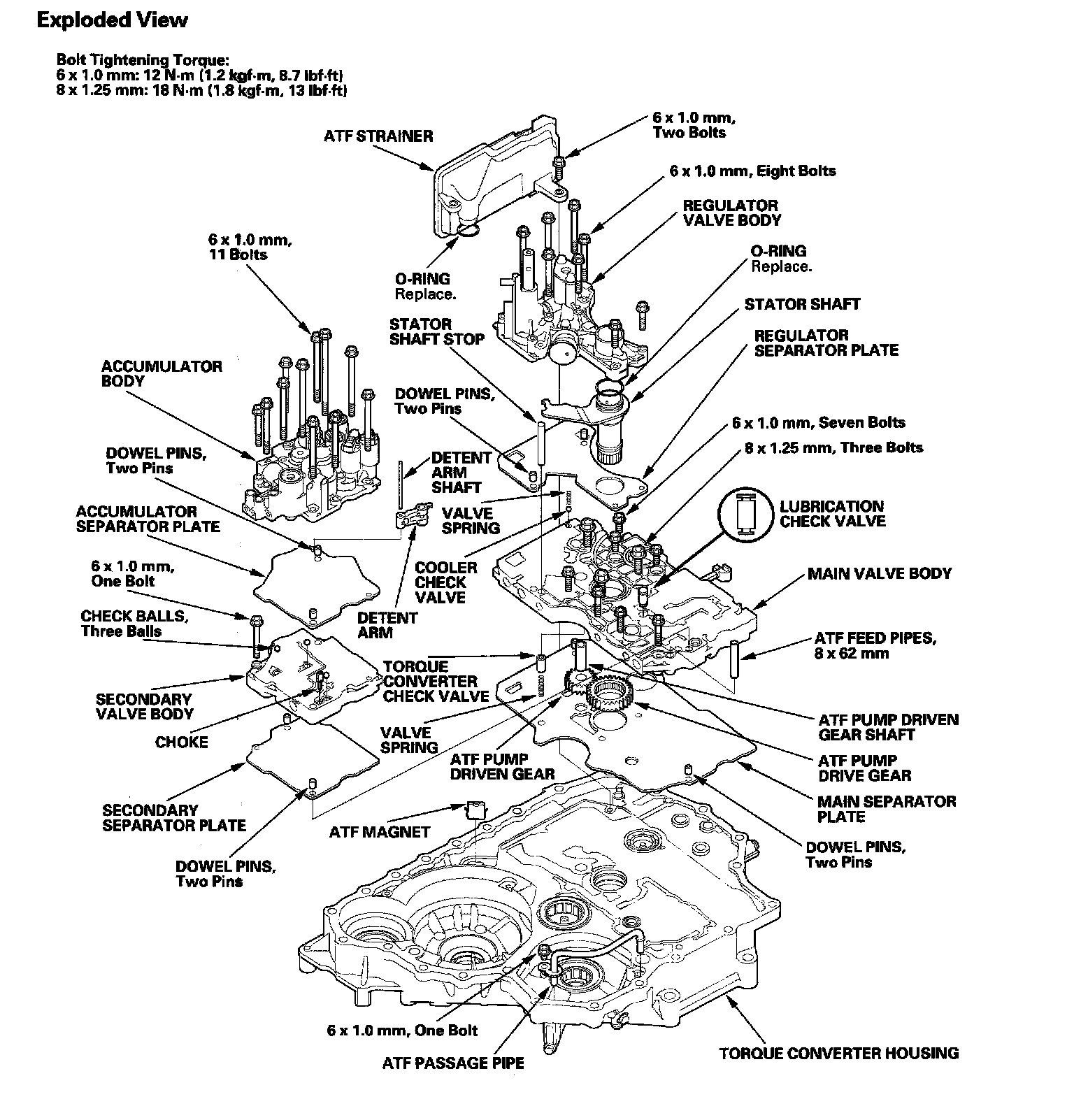

Transmission:

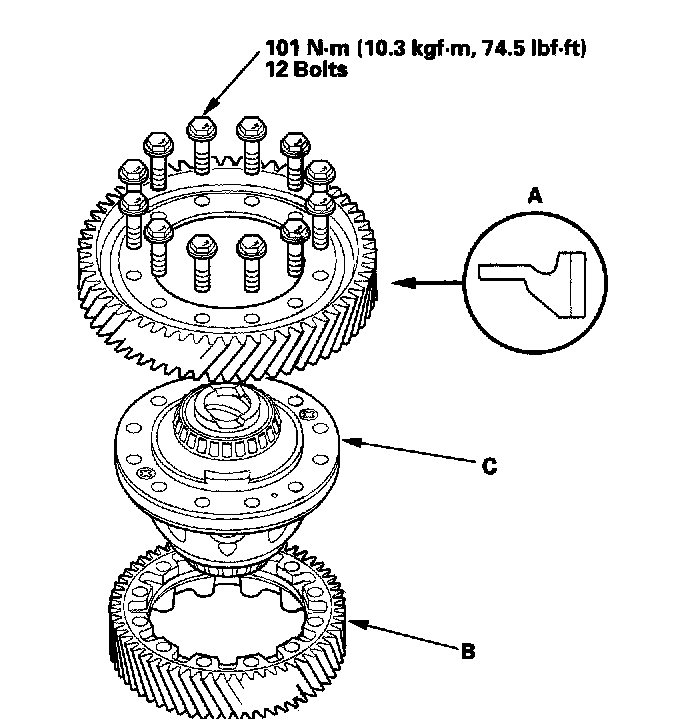

Final Driven Gear:

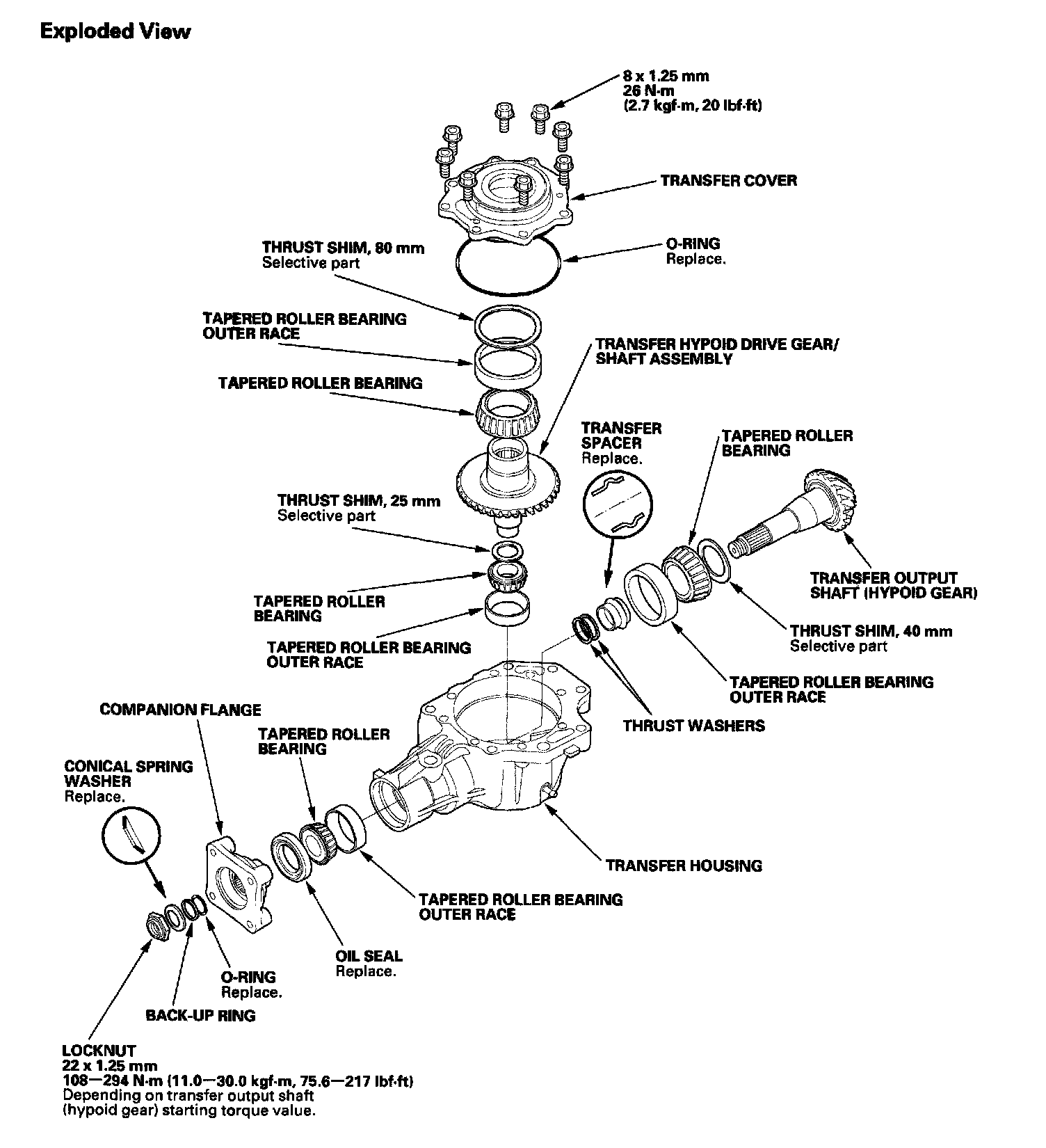

Transfer:

For more transmission Overhaul Specifications refer to Service procedures. Service and Repair
