Transfer Assembly Installation

Transfer Assembly Installation
1. Clean the areas where the transfer assembly contact the transmission with solvent or carburetor cleaner, and dry with compressed air. Then apply transmission fluid to the contact areas.

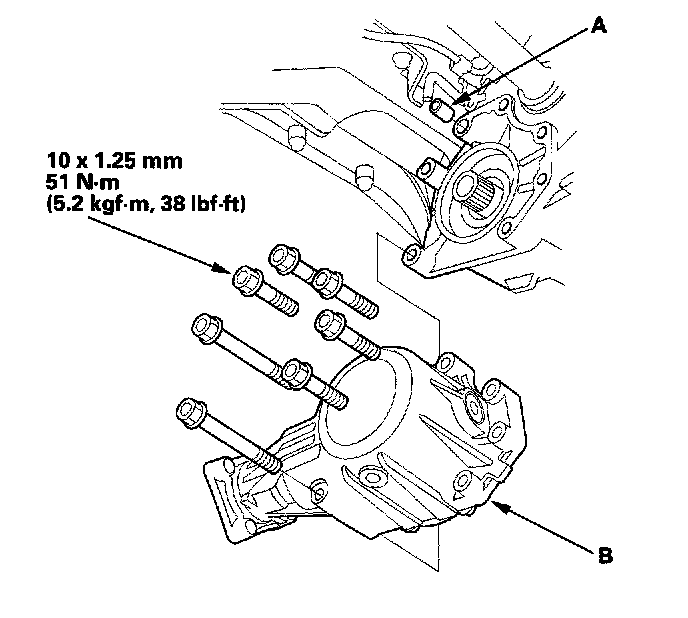

2. Install the dowel pin (A) in the transmission, and install the transfer assembly (B) on the transmission.

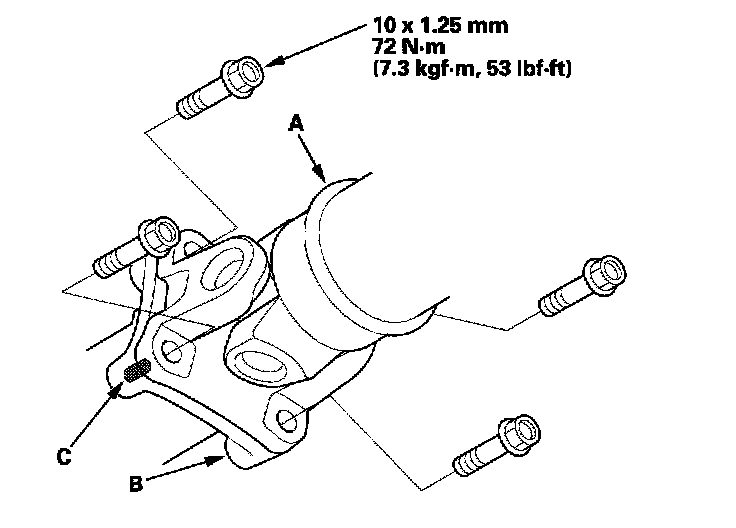

3. Install the propeller shaft (A) to the transfer companion flange (B) by aligning the reference mark (C).

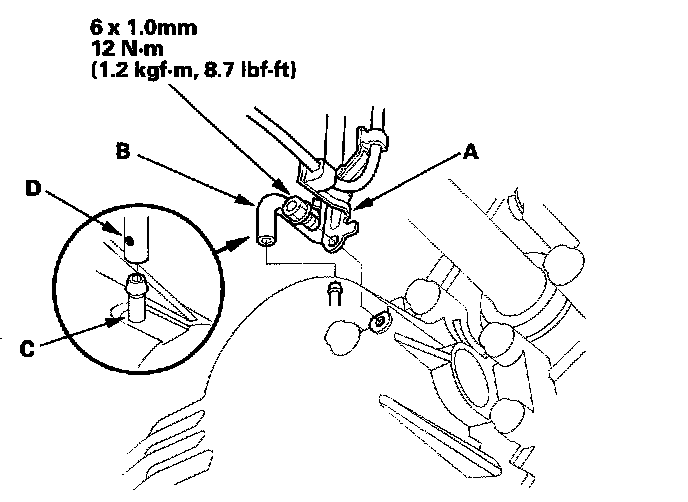

4. Secure the transfer breather tube bracket (A) on the transfer assembly with the bolt, and install the breather tube (B) over the breather pipe (C) with the dot (D) on the tube facing out.

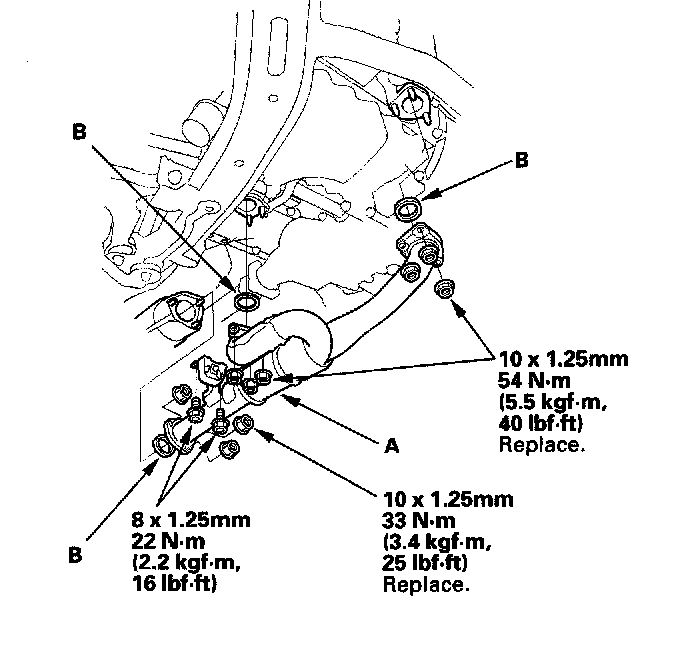

5. Install the exhaust pipe A and the new gaskets (B).

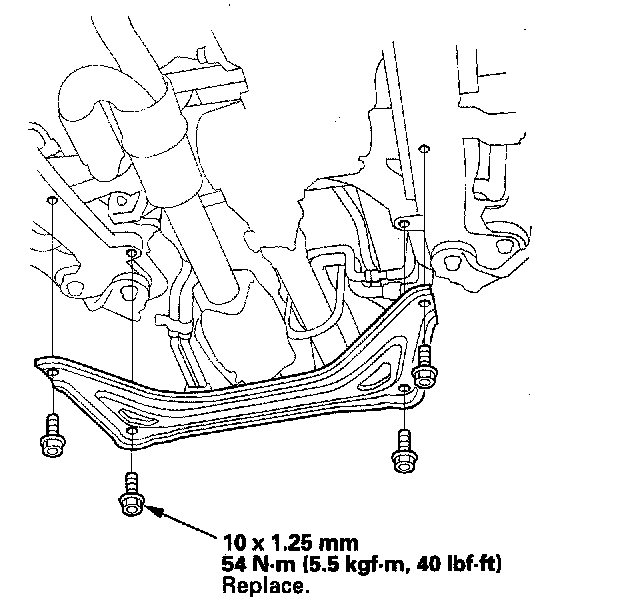

6. Install the subframe stiffener with the new mounting bolts.
7. Refill the transfer with transfer fluid (hypoid gear oil), if necessary.
8. Refill the transmission with ATF.
