DTC 26
DTC 26: Lateral Acceleration SensorNOTE: If DTC 64 is stored at the same time as DTC 26, troubleshoot DTC 64 first, then recheck for DTC 26.
1. Clear the DTC using the HDS.
2. Disconnect the HDS from the 16P DLC.
3. Turn the ignition switch OFF, then turn it ON (II) again.
4. Test-drive the vehicle around a number of corners.
5. Verify the DTC.
Is DTC 26 indicated?
YES - Go to step 6.
NO - The system is OK at this time, Refer to intermittent failures.
6. Turn the ignition switch OFF.
7. Disconnect the VSA modulator-control unit 47P connector, steering angle sensor 5P connector and yaw rate-lateral acceleration sensor 5P connector.
8. Turn the ignition switch ON (II).
9. Measure the voltage between body ground and the VSA modulator-control unit 47P connector terminal No. 33, No. 35, and No. 37 individually.
Is there 0.1 V or more?
YES - Repair short to power in the wire between the VSA modulator-control unit and the yaw rate lateral acceleration sensor.
NO - Go to step 10.
10. Turn the ignition switch OFF.

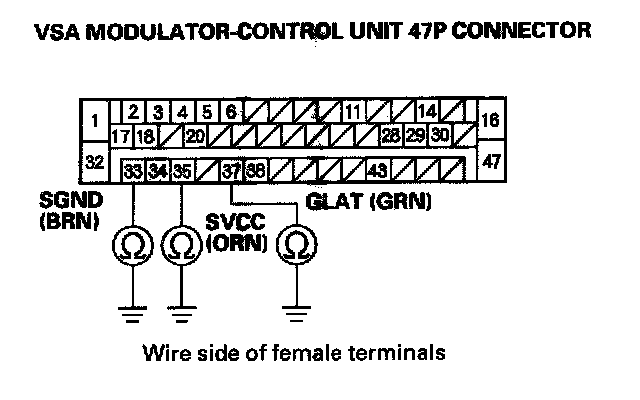

11. Check for continuity between body ground and the VSA modulator-control unit 47P connector terminal No. 33, No. 35, and No. 37 individually.
Is there continuity?
YES - Repair short to body ground in the wire between the VSA modulator-control unit and the yaw rate-lateral acceleration sensor.
NO - Go to step 12.
12. Check for continuity between the VSA modulator-control unit 47P connector terminal No. 35 and yaw rate-lateral acceleration sensor 5P connector terminal No. 2.
Is there continuity?
YES - Go to step 13.
NO - Repair open in the wire between the VSA modulator-control unit and the yaw rate-lateral acceleration sensor.

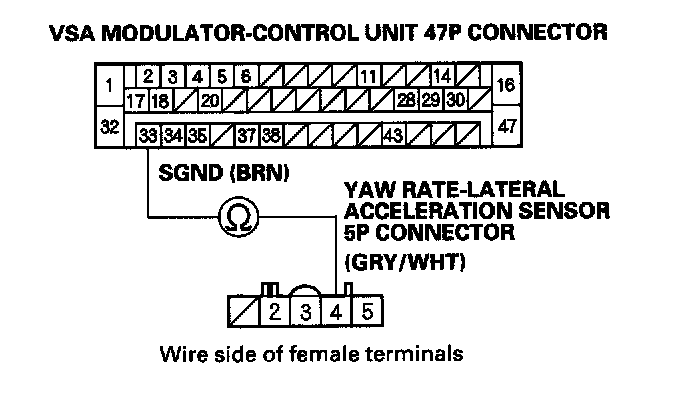

13. Check for continuity between the VSA modulator control unit 47P connector terminal No. 33 and yaw rate-lateral acceleration sensor 5P connector terminal No. 4.
Is there continuity?
YES - Go to step 14.
NO - Repair open in the wire between the VSA modulator-control unit and the yaw rate-lateral acceleration sensor.
14. Check for continuity between the VSA modulator control unit 47P connector terminal No. 37 and yaw rate-lateral acceleration sensor 5P connector terminal No. 5.
Is there continuity?
YES - Go to step 15.
NO - Repair open in the wire between the VSA modulator-control unit and the yaw rate-lateral acceleration sensor.
15. Substitute a known-good yaw rate-lateral acceleration sensor.
16. Reconnect all of the disconnected connectors.
17. Clear the DTC using the HDS.
18. Disconnect the HDS from the 16P DLC.
19. Turn the ignition switch OFF, then turn it ON (II) again.
20. Test-drive the vehicle around a number of corners.
21. Verify the DTC.
Is DTC 26 indicated?
YES - Replace the VSA modulator-control unit.
NO - Replace the original yaw rate-lateral acceleration sensor.
