Crankshaft Main Bearing
Main Bearing-to-Journal Oil Clearance No. 1, 2, 4, 5 Journals:
Standard (New)
0.017 - 0.041 mm (0.0007 - 0.0016 inch)
Service Limit
0.050 mm (0.0020 inch)
No. 3 Journal:
Standard (New)
0.025 - 0.049 mm (0.0010 - 0.0019 inch)
Service Limit
0.055 mm (0.0022 inch)

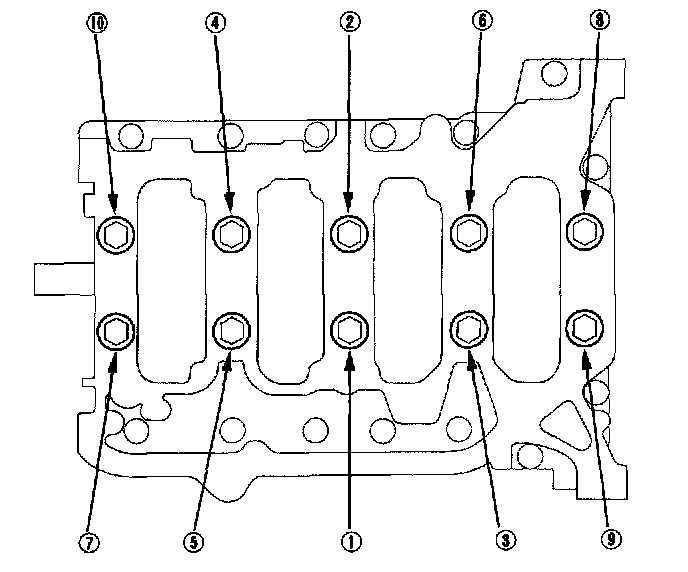

Main Bearing Cap Tighten the bearing cap bolts in sequence to
29 Nm (3.0 kgf-m, 22 ft. lbs.)
Tighten the bearing cap bolts an
additional 56°.
