Fluid Line/Hose: Service and Repair

ATF Cooler Hose Replacement

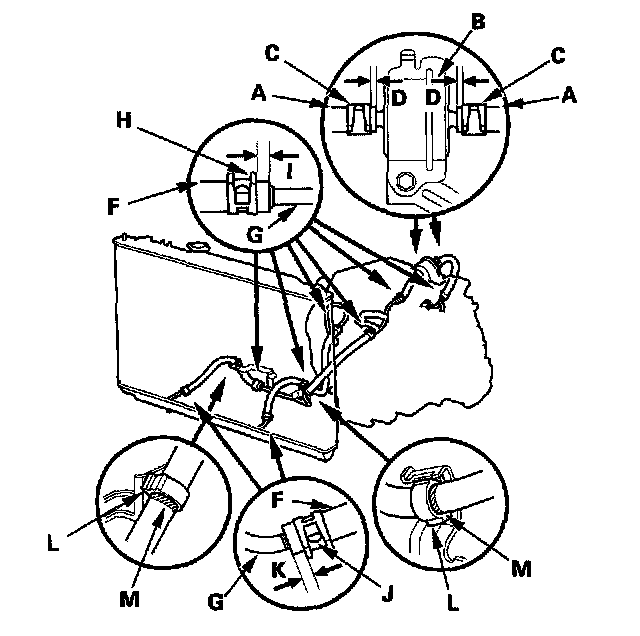

1. Slide the ATF cooler hoses (A) on the ATF filter (B) until they are 5 - 6 mm (0.20 - 0.24 inch) away from the filter housing.
2. Secure the hoses with the clip (C) at 10 - 12 mm (0.4 - 0.5 inch) (D) from the filter housing.
3. Slide the ATF cooler hoses (F) over the ATF cooler lines (G).
4. Secure the hoses with the clips (H) at 5 - 6 mm (0.2 - 0.24 inch) (I) from the hose ends, and secure the hoses at the ATF cooler with the clips (J) at 2 - 4 mm (0.1 - 0.2 inch) (K) from the hose ends.
5. Install the hoses on the clamps (L) at the marks (M).
