Skid Plate: Service and Repair

Rear Undercarriage Cover Replacement

Special Tools Required
Push pin puller 07AAC-SJAA100

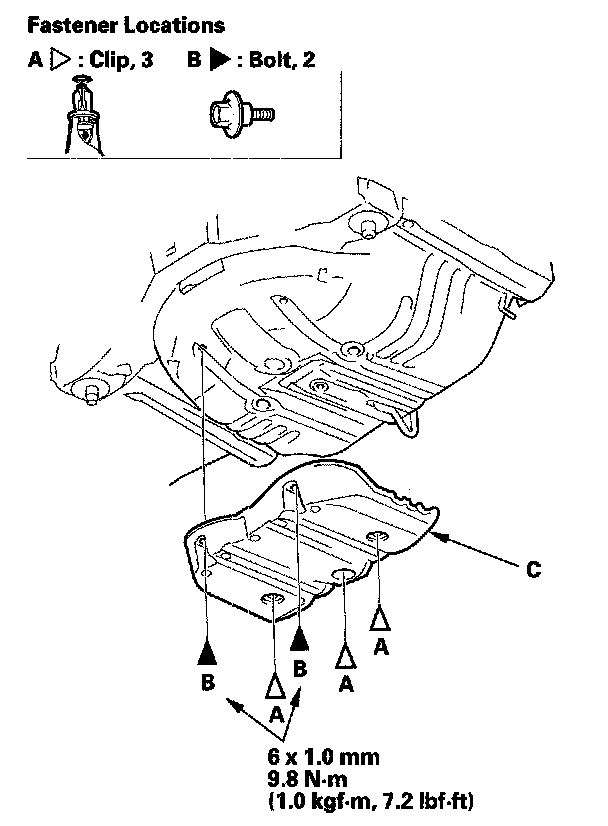

1. Remove the clips (A) and bolts (B), then remove the rear undercarriage cover (C). Take care not to scratch the rear bumper.
2. Install the cover in the reverse order of removal, and note these items:
- Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.
- Push the clips into place securely.
