Distance Switch Test

Distance Switch Test

1. Remove the driver's airbag.

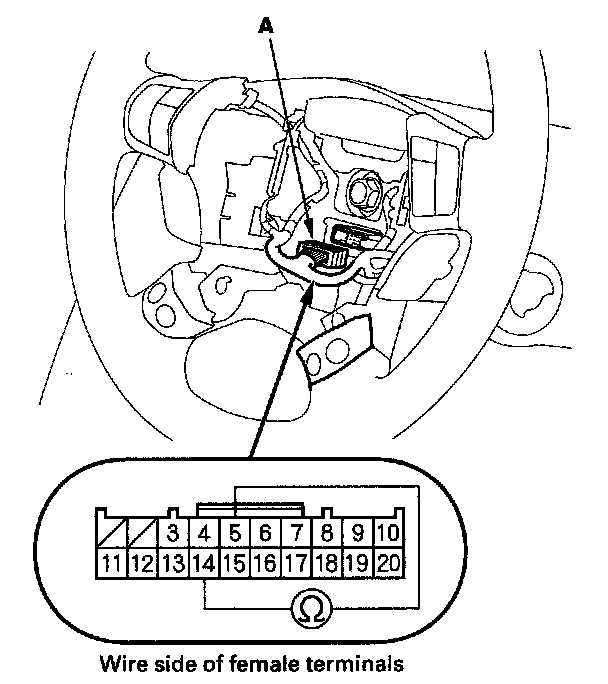

2. Disconnect the 20P connector (A) from the cable reel.

3. Check for continuity between the 20P connector No. 5 and No. 14 terminals.
- There should be continuity with the distance switch pressed.
- There should be no continuity with the distance switch released.

4. If the continuity is not as specified, replace the cruise control combination switch assembly.
