Audio-HVAC Subdisplay Unit Removal/Installation
Audio-HVAC Subdisplay Unit Removal/InstallationNOTE: -
Put on gloves to protect your hands.
-
Take care not to scratch the dashboard.
1.

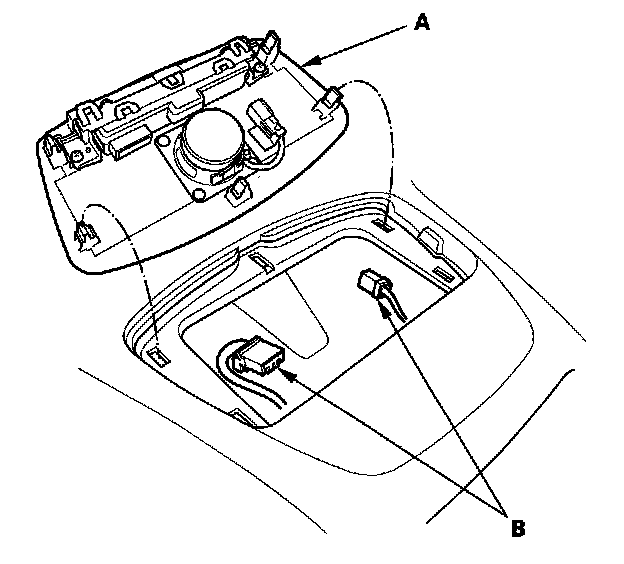

Remove the dashboard upper visor (A).
2.
Disconnect the connectors (B).
3.

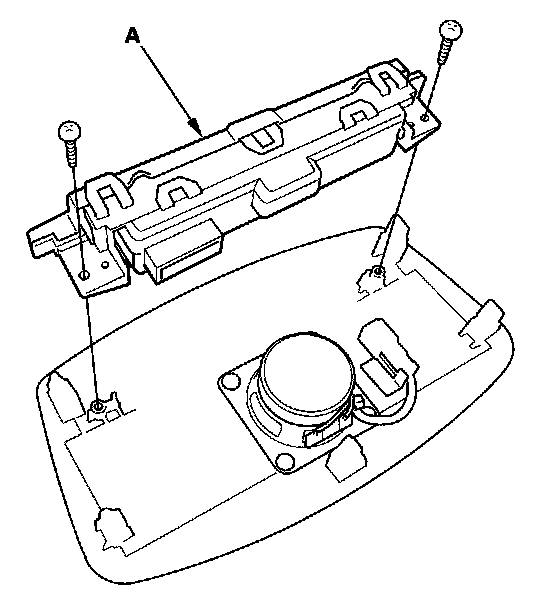

Remove the self-tapping screws and the audio-HVAC subdisplay unit (A).
4.
Install the display in the reverse order of removal.
