Ignition Key Light Test

Ignition Key Light Test

1. Remove the driver's dashboard undercover, and the driver's dashboard lower cover, then remove the steering column covers.

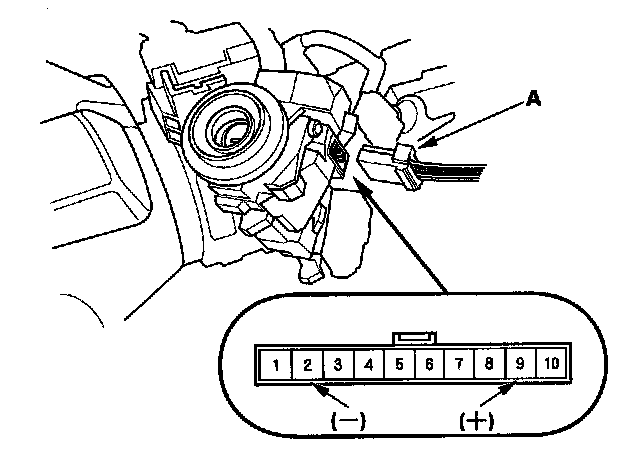

2. Disconnect the 10P connector (A) from the ignition switch control unit.

3. The LED should come on when power is connected to the No. 9 terminal and ground is connected to the No. 2 terminal.
4. If the LED does not come on, replace the ignition switch control unit.
