Switch Test
Switch Test 1.
Remove the center console panel.
2.

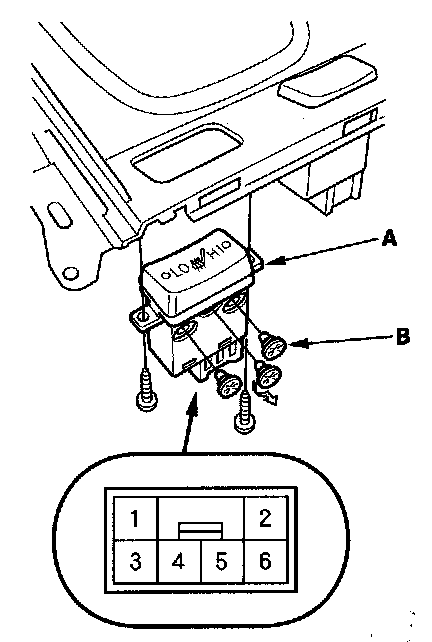

Disconnect the 6P connector from the seat heater switch (A).
3.
Remove the two screws and the switch.
4.
Check for continuity between the terminals in each switch position according to the table.
5.
If the continuity check is not as specified, replace the illumination bulbs (B) or the switch.
