Heated Glass Condenser: Service and Repair

AM/FM Antenna Amplifier-Rear Window Defogger Coil Replacement

1. Remove the left C-pillar trim.

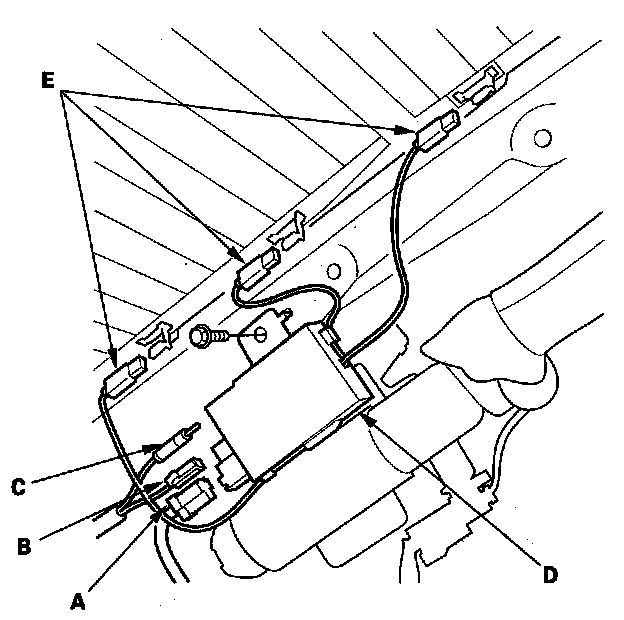

2. Disconnect the 1P connector (A), 1P connector (B), and AM/FM antenna lead (C) from the AM/FM antenna amplifier-rear window defogger coil (D) and the three window connectors (E).






3. Disconnect all connectors, then remove the bolt and AM/FM antenna amplifier-rear window defogger coil.
4. Install the AM/FM antenna amplifier-rear window defogger coil in the reverse order of removal.
